𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

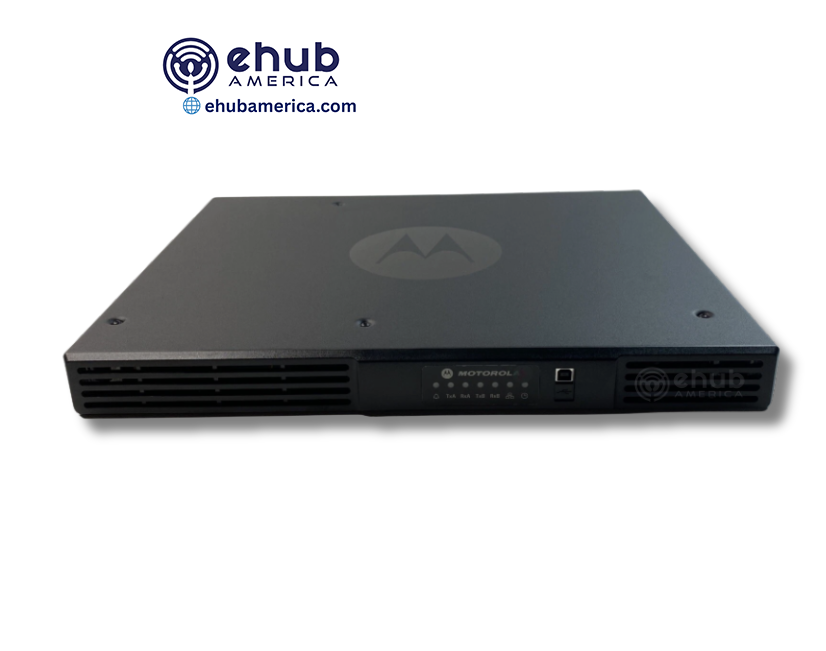

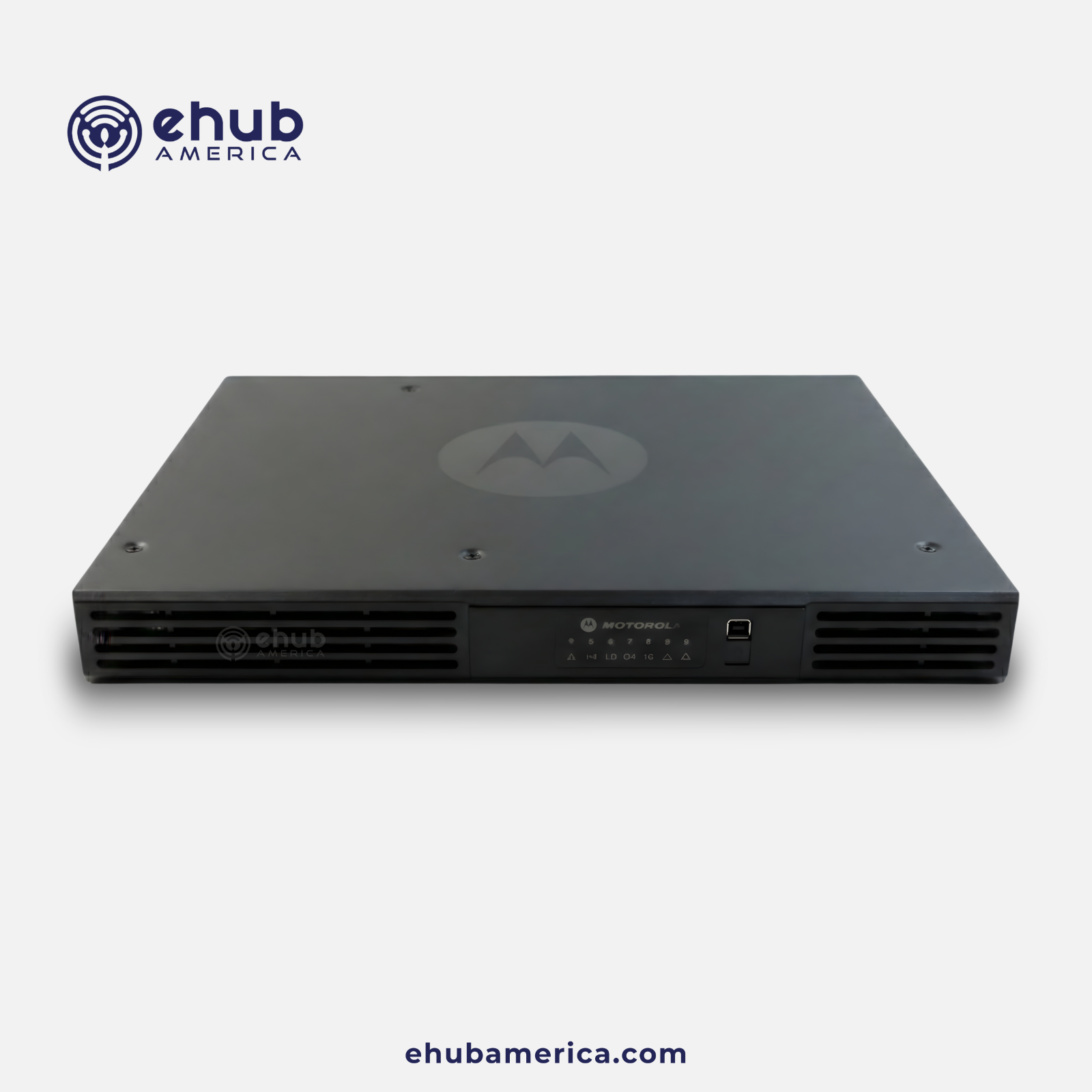

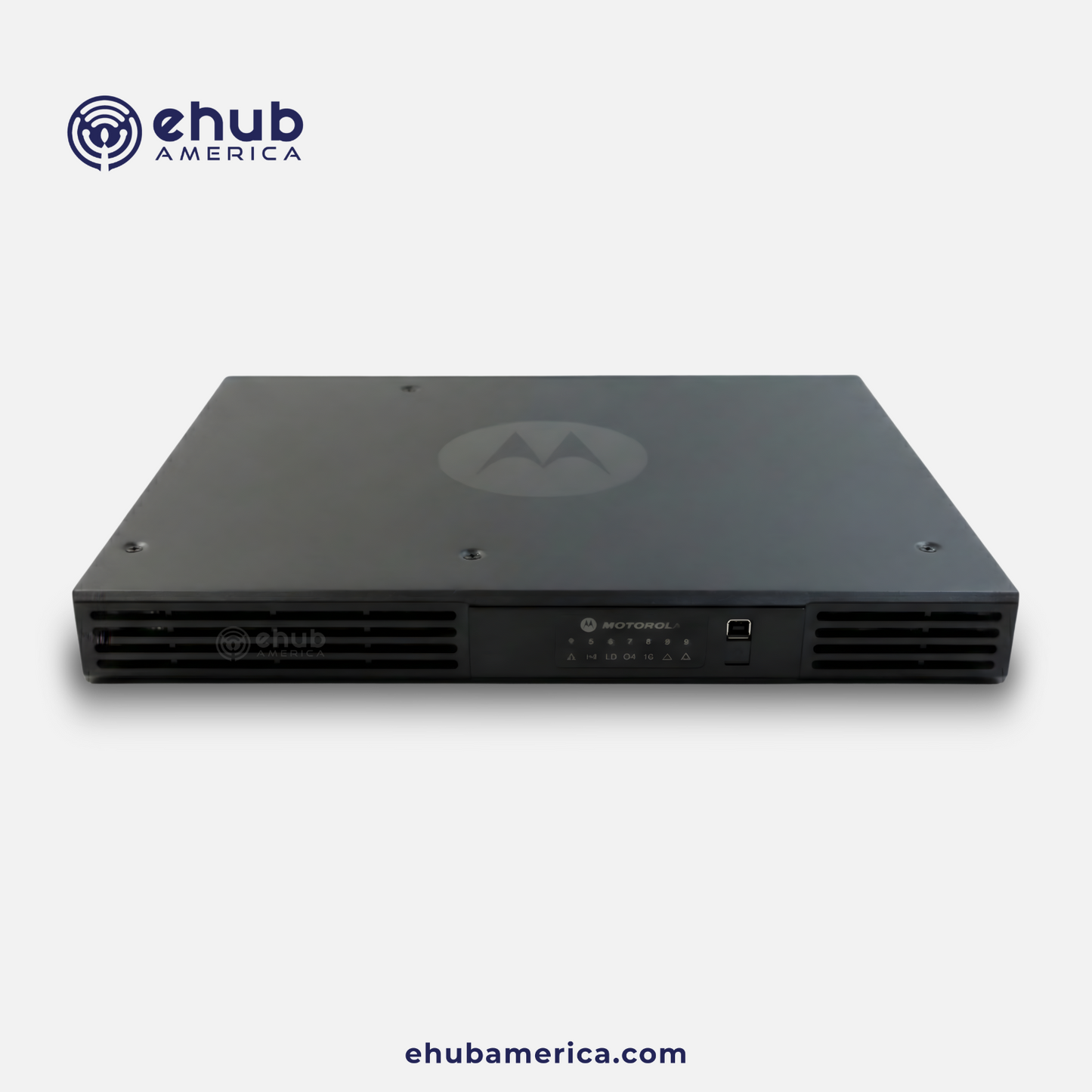

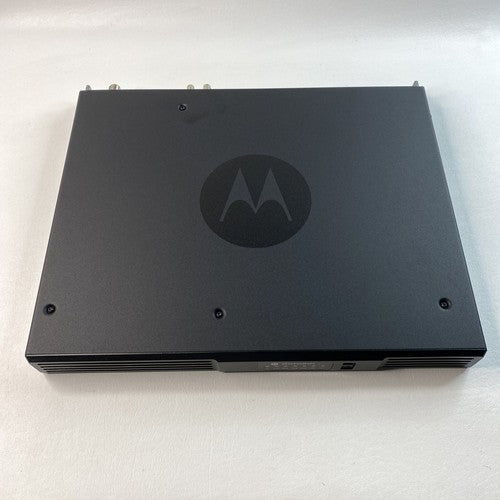

Motorola MOTOTRBO SLR5100 UHF 403–470 MHz 50W Repeater
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Motorola MOTOTRBO SLR5100 UHF repeater delivering up to 50W RF output with support for digital and analog operation. Designed for continuous duty applications with IP connectivity, integrated power supply, and compatibility with MOTOTRBO system architectures.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios
UHF Repeaters
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• UHF frequency band: 403–470 MHz
• Up to 50W RF output power
• 64 channel capacity
• Digital and analog capable
• Digital Conventional operation
• IP Site Connect
• Capacity Plus (single-site and multi-site)
• Capacity Max
• Connect Plus
• Extended Range Direct Mode
• Analog Conventional and MPT 1327 support
• Integrated 3A battery charger
• Front panel USB port for configuration
• Ethernet connectivity
• Integrated power supply
• Field-replaceable power amplifier, power supply, and modem modules
• Continuous duty cycle (100%)
• 1U rack-mount form factor
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
GENERAL
• Frequency Range: 403–470 MHz
• Channel Capacity: 64
• RF Output Power: 1–50W
• Channel Spacing: 12.5 / 25 kHz
• Frequency Stability: 0.5 ppm
• Dimensions (H x W x D): 44 x 483 x 370 mm (1.75 x 19 x 14.6 in)
• Weight: 8.6 kg (19 lb)
• Max Duty Cycle: 100%
POWER (AC)
• Input Voltage: 100–240 VAC, 47–63 Hz
• Current (Standby, 110/240V): 0.25/0.18 A
• Current (Transmitting, 110/240V): 1.5/0.9 A
POWER (DC)
• Input Voltage: 11.0–14.4 VDC
• Current (Standby): 0.7 A
• Current (Transmitting): 9.5 A
• External DC Aux Power: 12V, 1A
RECEIVER
• Sensitivity (Typical): 0.22 µV
• Channel Spacing: 12.5 / 25 kHz
• Frequency Stability: ±0.5 ppm
• Intermodulation (Typical): 82 dB
• Audio Distortion: <2%
• Hum and Noise (12.5/25 kHz): -45 / -50 dB
TRANSMITTER
• Channel Spacing: 12.5 / 25 kHz
• Frequency Stability: 0.5 ppm
• Intermodulation Attenuation: 40 dB
• Adjacent Channel Power (TIA603) 25/12.5 kHz: 78/62 dB
• Conducted Spurious Emissions: -36 dBm < 1 GHz, -30 dBm > 1 GHz
• Modulation Fidelity (4FSK): FSK Error 5%, FSK Magnitude 1%
• Audio Distortion: <1%
• Modulation Limitation: ±2.5 / ±5.0 kHz
ENVIRONMENTAL
• Operating Temperature Range: -22°F to +140°F (-30°C to +60°C)
• Humidity: 90% RH, non-condensing at 50°C (122°F)
CONNECTIVITY

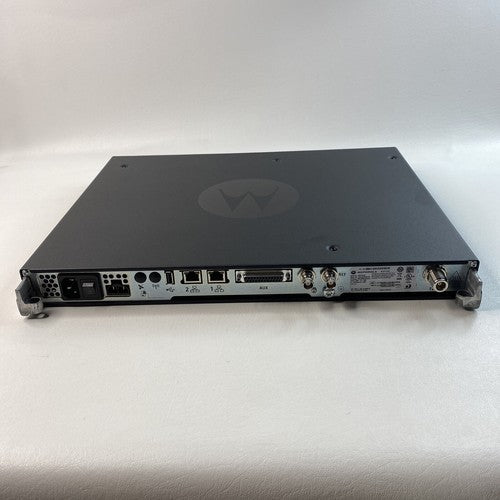

• Interfaces: Tx In, Rx In, Ext Alarm, USB B receptacle, 2x Ethernet
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
