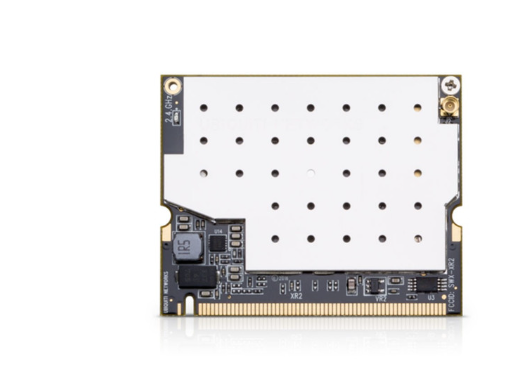

Compatible with 802.11b/g Wi-Fi standards, the ExtremeRange2 Carrier-Class 2.4 GHz 802.11b/g Radio Module from Ubiquiti allows most Wi-Fi enabled devices to connect to the network. This radio module also operates on the 2.4 GHz frequency with up to 600 mW of output power ensuring maximum coverage. Once installed the multi-faceted ExtremeRage2 module can be configured to mesh, bridging, and infrastructure modes to suit the needs of a variety of networking environments.
Features
- 600mW output power
- ESD/EMP protection
- Enhanced sensitivity
- Extended temperature
- Enhanced filtering
- 5/10/20/40 MHz channels
- MMCX ant. connector
Technical Description
- Chipset Atheros, 6th Generation, AR5414
- Radio Operation IEEE 802.11b/g, 2.4GHz
- Interface 32-bit mini-PCI Type IIIA
- Operation Voltage 3.3VDC
- Antenna Ports Single MMCX
- Temperature Range -45C to +90C (extended temp version up to +95C)
- Security WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
- Data Rates 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
- TX Channel Width Support 5MHz / 10MHz / 20MHz / 40MHz
- RoHS Compliance YES
