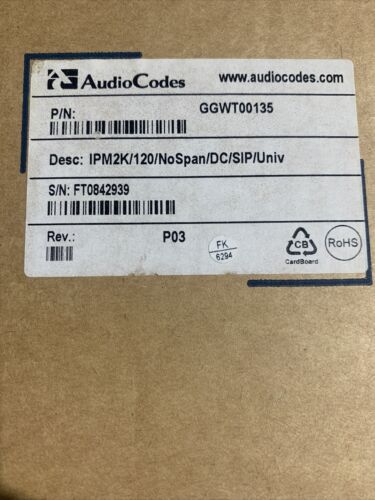

Audiocodes GGWT00135 Mediant 2000 VoIP Media Gateway IPM2K 120 No Span SIP

The AudioCodes Mediant 2000 VoIP Media Gateway (part number GGWT00135) is a carrier-grade platform engineered for high-density voice processing in enterprise and service-provider environments. Configured as an IP Media (IPM2K) unit with no TDM span interfaces, it operates purely in the IP domain, making it well suited for hosted conferencing, announcement services, and interactive voice response deployments where PSTN trunk connectivity is not required. The gateway supports 120 channels of simultaneous conferencing and voice processing, and ships with a comprehensive software bundle that includes SIP signaling, multiple vocoder licenses, multi-language announcement playback, play-and-collect, streaming, and DTMF-based voice recognition—delivering a self-contained media server capability within the Mediant 2000 chassis. The single DC power supply module (HW/SinglePS/DC) reflects the unit's readiness for installation in DC-powered telecommunications infrastructure.

Key features & benefits

• 120-Channel IP Media Processing — Licensed for 120 simultaneous voice channels, enabling high-density conferencing and media processing workloads without requiring additional per-channel hardware.
• Integrated Conferencing Engine — The SW/CONF/120ch license activates a full 120-channel conferencing capability, supporting large-scale multi-party bridge applications directly on the gateway platform.
• SIP Protocol Support — The SW/SIP license enables Session Initiation Protocol signaling, aligning the gateway with modern IP communications infrastructure and interoperability requirements.
• Comprehensive Vocoder Licensing — Includes SW/G729, SW/G723, and SW/Basic vocoder licenses, providing flexibility across bandwidth-constrained and standard-quality voice encoding scenarios.
• Advanced Media Application Software — Ships with SW/H.248.9, SW/MSCML, SW/Streaming, SW/Play/Collect, SW/VR/DTMF, SW/Multi Language, and SW/Announcements licenses, enabling announcement playback, interactive voice collection, DTMF voice recognition, and multi-language audio service delivery.
• No TDM Span Configuration — Configured with no TDM spans, the unit operates as a pure IP media resource, simplifying deployment in all-IP environments where legacy PSTN trunk interfaces are not needed.
• DC Power Infrastructure Ready — Equipped with the HW/SinglePS/DC power supply module, the gateway integrates naturally into DC-powered central office and carrier-grade equipment rooms.
