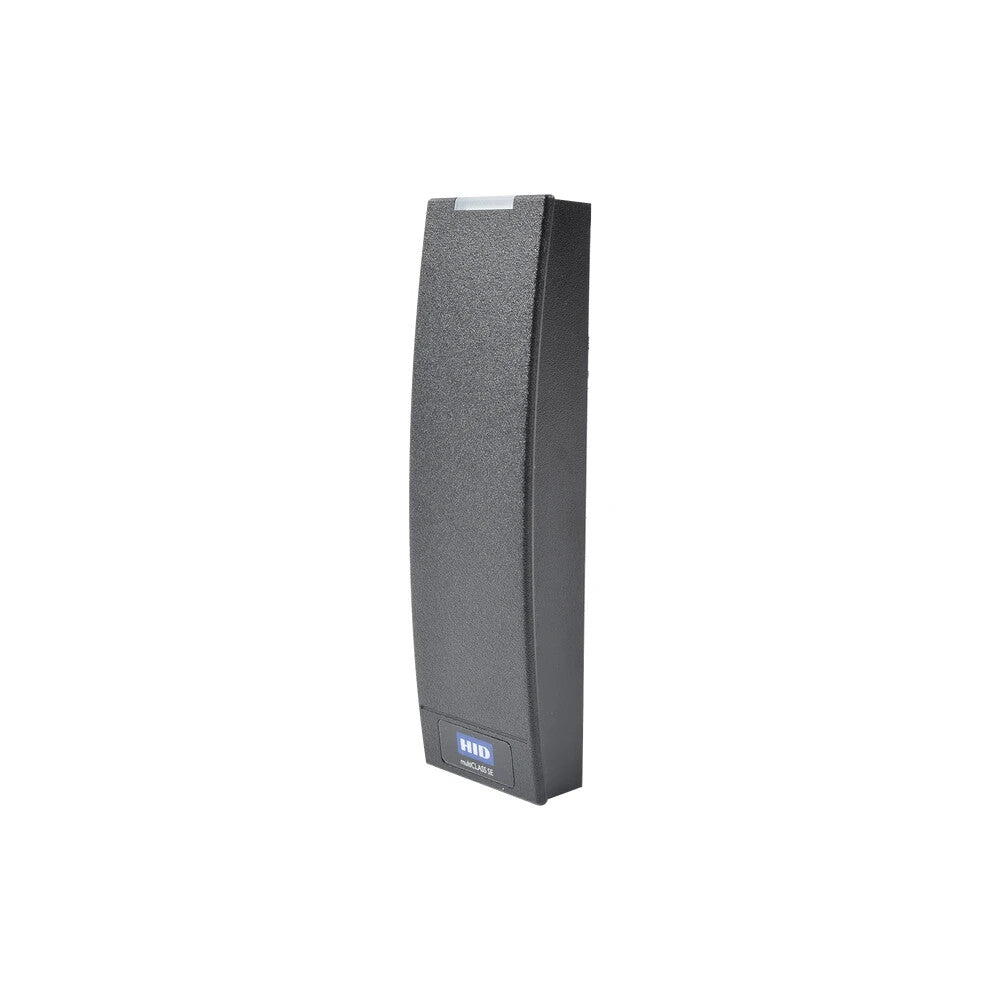

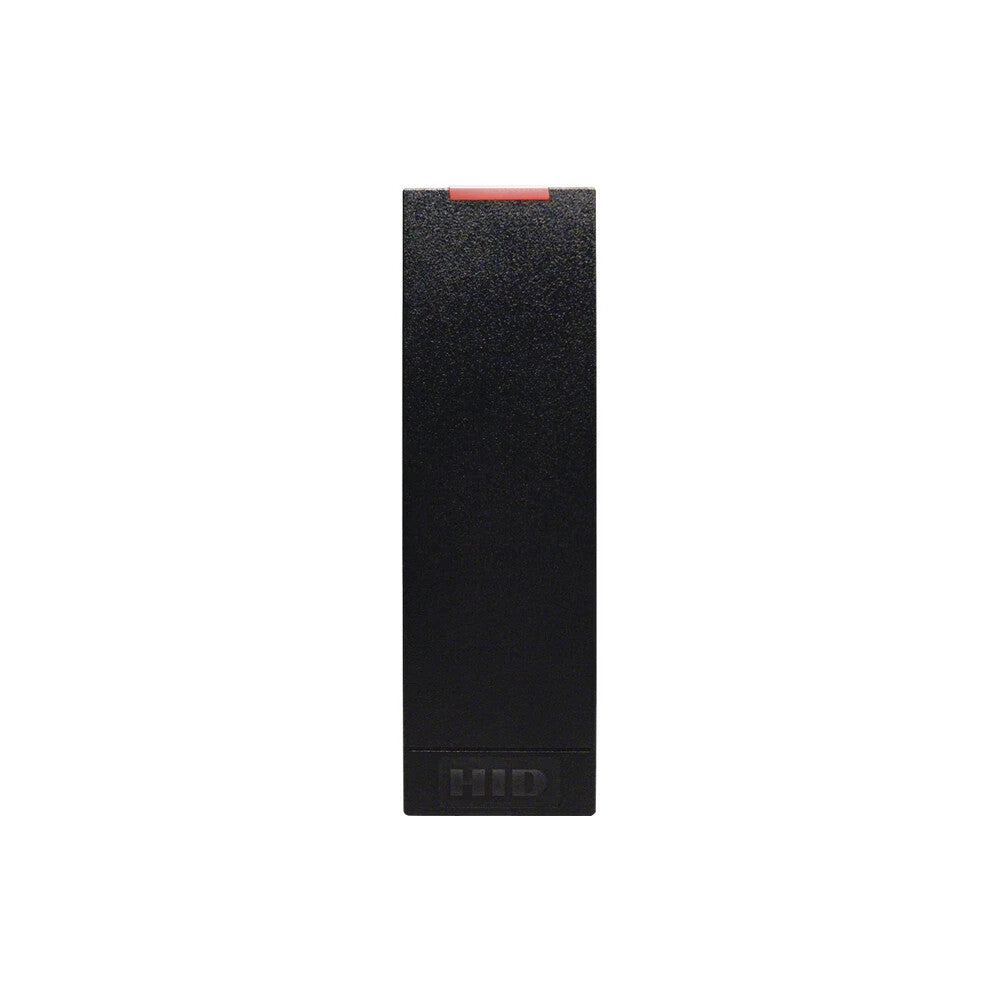

Hid 910PMNNEKMA003 iCLASS SE Mullion R15 Reader Bluetooth Prox AWID EM4102

The HID iCLASS SE Multiclass R15 Mullion Reader (910PMNNEKMA003) is a multiformat access control reader built on HID Global's iCLASS SE platform. It simultaneously supports high-frequency 13.56 MHz smart card technologies alongside legacy 125 kHz proximity formats, enabling organizations to run mixed credential environments and execute phased migrations without replacing infrastructure. The mullion form factor and flat-surface mounting compatibility make it well suited for narrow door frames, glass doors, and tight architectural installations where space is at a premium. Communication with the access control panel is handled via Wiegand output and the Open Supervised Device Protocol (OSDP) with Secure Channel Protocol, providing both broad legacy compatibility and a path to encrypted, supervised communications. The reader is field-programmable, supporting secure firmware upgrades to extend its operational lifecycle and adapt to evolving credential ecosystems, including HID Mobile Access delivered over NFC and Bluetooth.

Key features & benefits

• Broad Multiformat Credential Support — Reads high-frequency 13.56 MHz technologies including iCLASS Seos, iCLASS SE, iCLASS, MIFARE Classic (SIO), and MIFARE DESFire EV1, while simultaneously supporting legacy 125 kHz formats including HID Prox, AWID, and EM4102, protecting existing credential investments during migration.
• Mobile Access via NFC and Bluetooth — Configurable to support HID Mobile Access, allowing users to present credentials from smartphones and other mobile devices over NFC and Bluetooth, enabling touchless and convenient access control workflows.
• OSDP with Secure Channel Protocol — Implements Open Supervised Device Protocol (OSDP) with Secure Channel Protocol for encrypted, supervised communications between the reader and the access controller, reducing vulnerability to interception and tampering on the reader line.
• Secure Identity Object (SIO) Data Model — The iCLASS SE platform's SIO framework adds a layer of encryption to identity data and includes SIO Data Binding to inhibit credential cloning by tying the data object to a specific physical credential.
• Field Programmable for Extended Lifecycle — The reader can be securely updated in the field, allowing credential technology upgrades without hardware replacement and reducing total cost of ownership over the installation's lifetime.
• Mullion and Flat-Surface Mounting — The slim R15 mullion profile is ideally suited for narrow door frame stiles, glass doors, and other flat-surface installations where a standard-format reader would not fit or would be architecturally inappropriate.
• Wiegand and Pigtail Interface — Ships with a pigtail cable and Wiegand output, ensuring straightforward integration with the broad base of existing access control panels and controllers that support the Wiegand protocol.
