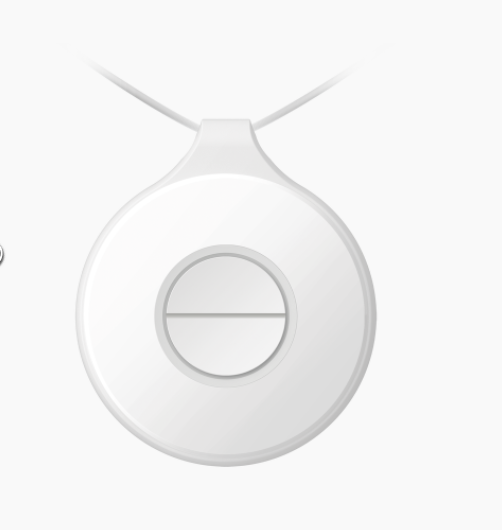

Hikvision DS-PDEBP2-EG2-WB (AX PRO) Portable Wireless Double Panic Button/ IP54

The Hikvision DS-PDEBP2-EG2-WB is a portable, body-worn wireless double panic button purpose-built for the AX PRO intrusion alarm ecosystem. Leveraging Hikvision's Tri-X two-way RF wireless technology at 433 MHz with AES-128 encryption and frequency hopping, the device delivers a verified, tamper-resistant alarm signal to the host panel across an 800 m free-space range—making it equally at home in retail environments, healthcare facilities, lone-worker deployments, and residential security applications. With just two buttons to press simultaneously for alarm activation, built-in accidental-press protection, and an IP66-rated circular disc form factor, the device is designed for confident daily carry. A single CR2035 coin cell powers the unit for up to three years in standby, and three enrollment methods—power-up, Remote ID, and QR Code—minimize installation complexity. An optional wristband accessory keeps the device immediately accessible at all times.

Key features & benefits

• Tri-X Two-Way RF Wireless — Operates on Hikvision's proprietary Tri-X wireless platform using two-way RF communication at 433 MHz, ensuring the panel can confirm receipt of every alarm transmission for closed-loop reliability.
• AES-128 Encrypted Transmission — All over-the-air communications are secured with AES-128 encryption, protecting alarm signals from eavesdropping or replay attacks in security-sensitive deployments.
• Frequency Hopping Anti-Jam — Built-in frequency hopping spread spectrum prevents RF jamming attempts from suppressing alarm signals, maintaining link integrity even in congested or adversarial RF environments.
• 800 m Free-Space Transmission Range — The 433 MHz RF link reaches up to 800 m in open-space conditions, providing reliable coverage across large campuses, warehouses, or outdoor perimeters.
• Dual-Button Accidental Press Protection — Two buttons must be activated to trigger an alarm, effectively eliminating false activations caused by accidental single-button contact during normal carry or wear.
• IP66-Rated Environmental Protection — An IP66 ingress protection rating guards the device against dust ingress and powerful water jets, supporting outdoor use and daily wear in demanding environments.
• Up to 3-Year Battery Life — A single CR2035 coin cell at 3 V nominal delivers up to three years of standby battery life, drastically reducing maintenance overhead in large-scale deployments.
• Multiple Enrollment Methods — Supports three enrollment methods—power-up, Remote ID, and QR Code—enabling fast, flexible commissioning with the AX PRO host panel via app or on-device pairing.
• Signal Strength Indicator — On-device signal strength indication allows installers and end users to verify RF link quality in real time, simplifying site surveys and ongoing maintenance.
• Red/Green LED Indicator — Dual-color LED provides clear visual confirmation of operational status, alarm state, and enrollment feedback directly on the device body.
• Optional Wristband Accessory — An optional wristband accessory transforms the compact disc-form device into a wearable panic button, ideal for lone-worker, medical alert, or personal-safety use cases.
• Fully Remote Configurable via App — Device parameters can be adjusted remotely through the AX PRO mobile application without requiring physical access to the device, reducing on-site service visits.
