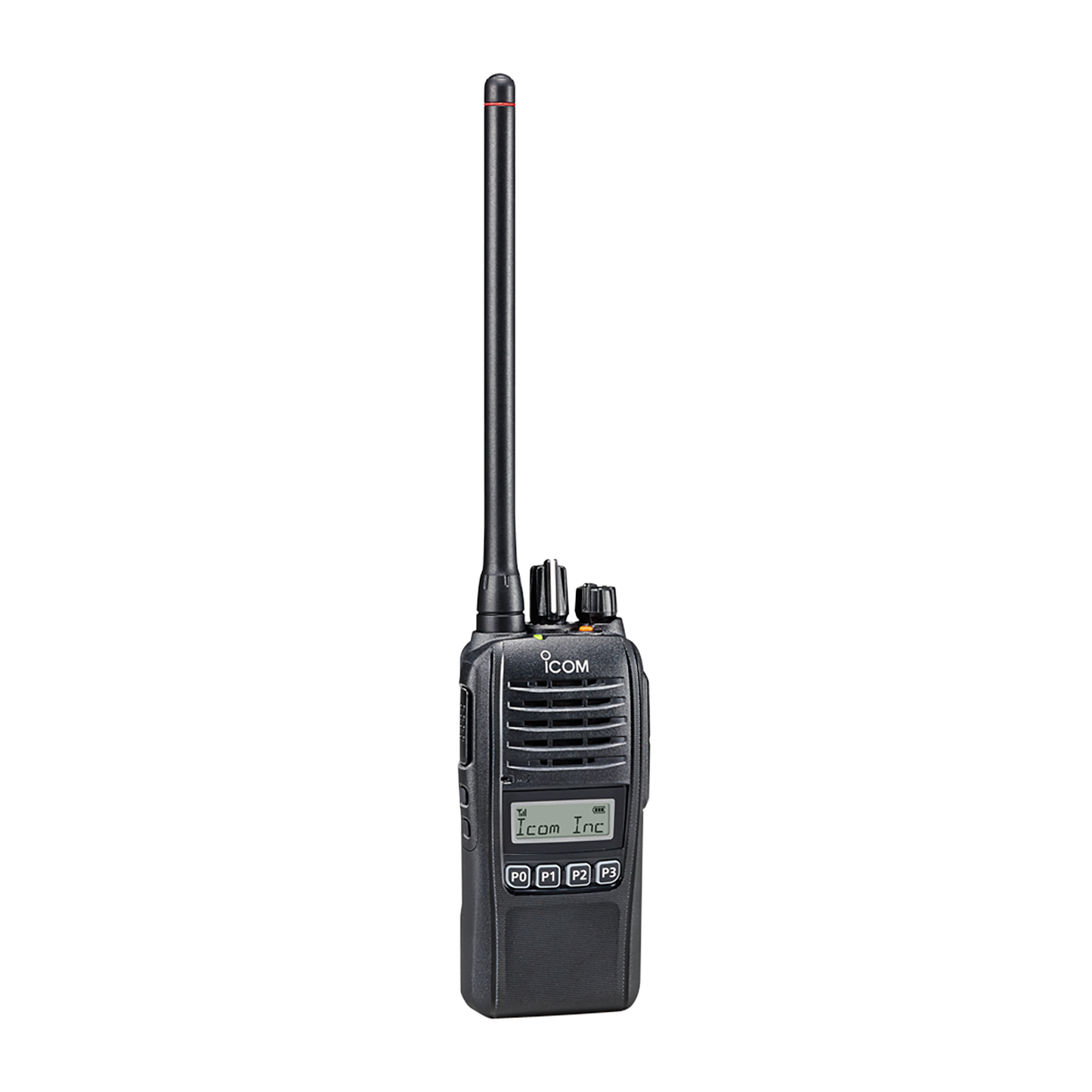

Icom F2000S Portable Radio UHF 400-470 MHz Display 4 W 128 Ch Complete Set

Icom F2000S Portable Radio UHF 400-470 MHz Display 4 W 128 Ch Complete Set

Regular price $236.00
Regular price Sale price $236.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

30 in stock

Tags: Icom

View full details

General

IC-F1000T/S IC-F1000 IC-F2000T/S IC-F2000
Frequency coverage*
(*Varies according to version)
136–174 MHz

400–470 MHz (ALL)
450–512 MHz (USA)
450–520 MHz (EXP)

335–380 MHz (EXP)
400–470 MHz (ALL)
450–512 MHz (USA)
450–520 MHz (EXP)

Number of channels

128 channels/ 8 zones

16 channels 128 channels/ 8 zones 16 channels
Type of emission


16K0F3E*/11K0F3E (USA/EXP)

16K0F3E/14K0F3E/8K50F3E (EUR)

Power supply requirement

7.5V DC nominal

Current drain
(approx.)
Tx

1.3A

Rx

500 mA /77 mA
(Max. audio (internal SP)/Standby)

500 mA /80 mA
(Max. audio (internal SP)/Standby)

Antenna impedance

50Ω

Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F (Radio specification)
(USA/EXP)

–25°C to +55°C (Radio specifi cation)
(EUR)

Dimensions
(W × H × D; Projections not included)

52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)

Weight (approx.)

240 g; 8.5 oz (With BP-279)

*16k0F3E (30 kHz bandwidth) is no longer available for FCC Part 90 licensees for USA versions.

Transmitter

IC-F1000T/S IC-F1000 IC-F2000T/S IC-F2000
Output power
(Hi, L2, L1)

5 W, 2 W, 1 W

4 W, 2 W, 1 W

Maximum frequency deviation

± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious emissions

70 dB minimum (USA/EXP)

0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)

Frequency stability

±2.5ppm

Audio harmonic distortion

1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)

FM Hum and Noise
(without CCITT filter)

46 dB typical (25 kHz), 40 dB typical (12.5 kHz)
(USA/EXP)

Residual modulations
(with CCITT filter)

50 dB typical (25 kHz),
47 dB typical (20 kHz),
44 dB typical (12.5 kHz)
(EUR)

53 dB typical (25 kHz),
51 dB typical (20 kHz),
48 dB typical (12.5 kHz)
(EUR)

External microphone connector

3-conductor 2.5 (d) mm (1/10)/2.2 kΩ

* 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.


Receiver

IC-F1000T/S IC-F1000 IC-F2000T/S IC-F2000
Sensitivity (at 12dB SINAD)

0.25μV typical

(at 20dB SINAD)

–4 dBμV typical emf

Adjacent channel selectivity

76 dB typical (25 kHz),
53 dB typical (12.5 kHz)
(TIA-603D)

78 dB typical (25 kHz),
71 dB typical (12.5 kHz)
(TIA-603A)

73 dB typical (25 kHz),
56 dB typical (12.5 kHz)
(TIA-603D)

74 dB typical (25 kHz),
64 dB typical (12.5 kHz)
(TIA-603A)

76 dB typ. (25 kHz),
72 dB typ. (20 kHz),
53 dB typ. (12.5 kHz)
(EUR)

73 dB typ. (25 kHz),
73 dB typ. (20 kHz),
56 dB typ. (12.5 kHz)
(EUR)

Spurious response rejection

70dB minimum

Intermodulation rejection

74 dB typical (USA/EXP)

73 dB typical (USA/EXP)

68 dB typical (EUR)

67 dB typical (EUR)

Hum and noise (With CCITT filter)

51 dB typical (25 kHz),
45 dB typical (12.5 kHz) (USA/EXP)

49 dB typical (25 kHz),
43 dB typical (12.5 kHz) (USA/EXP)

(Without CCITT filter)

52 dB typical (25 kHz),
49 dB typical (20 kHz),
46 dB typical (12.5 kHz)
(EUR)

52 dB typical (25 kHz),
50 dB typical (20 kHz),
47 dB typical (12.5 kHz)
(EUR)

AF output power
(at 5% distortion 8Ω load )
Internal SP

1500 mW typical

External SP

400 mW typical (Single end)
1500 mW typical (BTL, HM-222HLWP connected*)

External speaker connector

2-conductor 3.5 (d) mm (1⁄8)/8 Ω

All stated specifications are subject to change without notice or obligation.
Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086 (EUR).
* For the transceiver with "U" make on the serial number label.

Function Comparison and Internal Unit Options

IC-F1000/S/T IC-F2000/S/T
Number of option slots

-

CTCSS/ DTCS encoder

Available

decoder

Available

2-Tone encoder

Available

decoder

Available

5-Tone encoder

Available

decoder

Available

DTMF autodial

Available

DTMF decoder

-

Voice Scrambler Inversion

Available

Non-rolling

-

Rolling

-

APCO P25 digital

-

6.25kHz digital

-

MDC 1200

Available (Limited functions)

Motion function

Available

Lone worker function

Available

Man down function

Available

Intrinsically safe

-

Voice announcement

Available

Audio compander

Available

GPS receiver

-

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 G
Method Procedure
Low Pressure Storage 500.5 I I
Low Pressure Operation 500.5 II
High Temperature Storage 501.5 I
High Temperature Operation 501.5 II
Low Temperature Storage 502.5 I
Low Temperature Operation 502.5 II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing 506.5 I
Rain Drip 506.5 III
Humidity Induced 507.5 II
Salt Fog 509.5 -
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock Functional 516.6 I
Shock Transit Drop 516.6 IV

Also meets equivalent MIL-STD-810-C, -D -E and -F.

Ingress Protection Standard (IC-F1000/T/S, IC-F2000/T/S & HM-168LWP)
Dust & Water

IP67 (Dust-tight and waterproof protection)

All stated specifications are subject to change without notice or obligation.

Supplied accessories

  • Battery pack, BP-279
  • Desktop charger, BC-213*
  • AC adapter, BC-123SA/SE/SUK/SV or BC-242*
  • Belt clip, MB-133
  • Antenna
