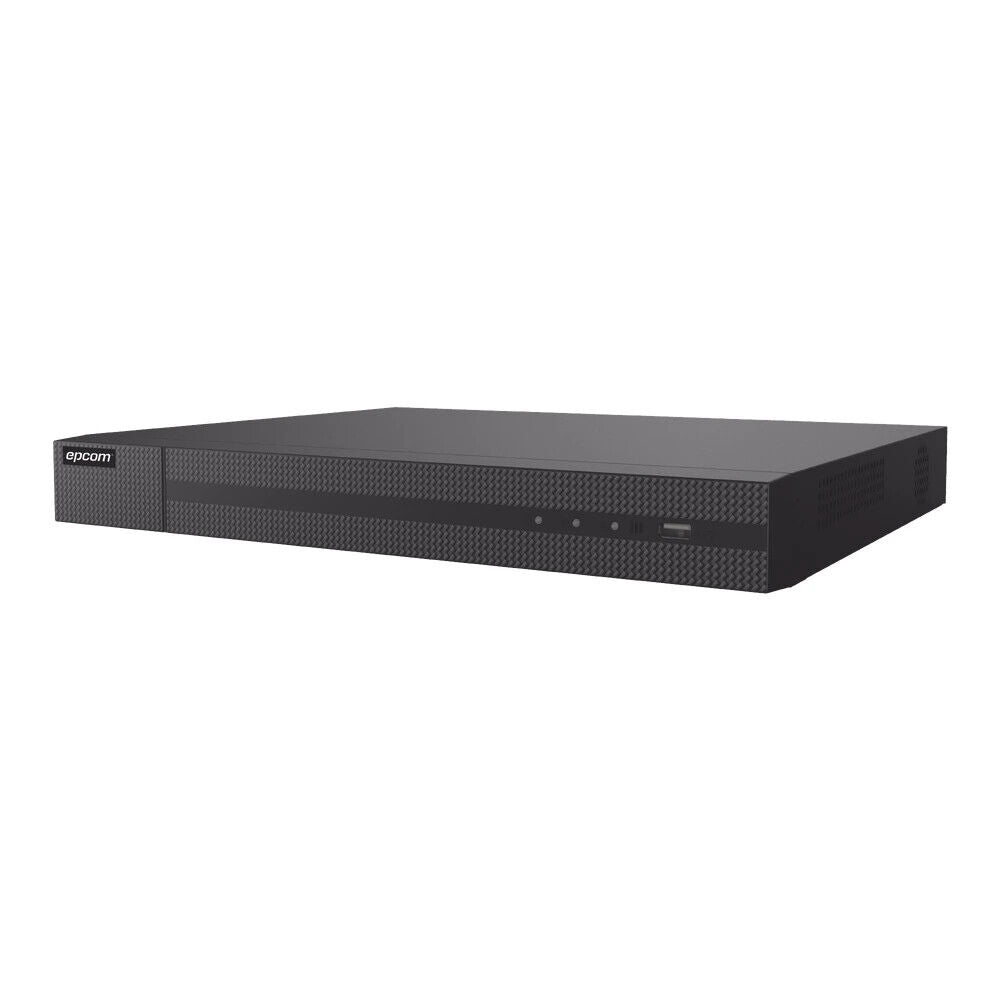

Epcom XR216A/16PH NVR 8MP (4K) 16 Channels IP, 16 PoE+ Ports 2 HDD Slots

The Epcom XR216A/16PH is a professional-grade 4K Network Video Recorder engineered for medium-to-large IP surveillance deployments. With 16 dedicated PoE+ ports, the unit eliminates the need for a separate network switch, simplifying cable runs and reducing infrastructure costs in retail, commercial, and light-industrial environments. Support for H.265+ compression maximizes storage efficiency across both HDD bays, while a 160 Mbps incoming bandwidth ceiling ensures every channel can sustain full-resolution, full-frame-rate streams simultaneously. Remote management through IVMS-4200 and Hik-Connect keeps operators connected to live and recorded footage from anywhere.

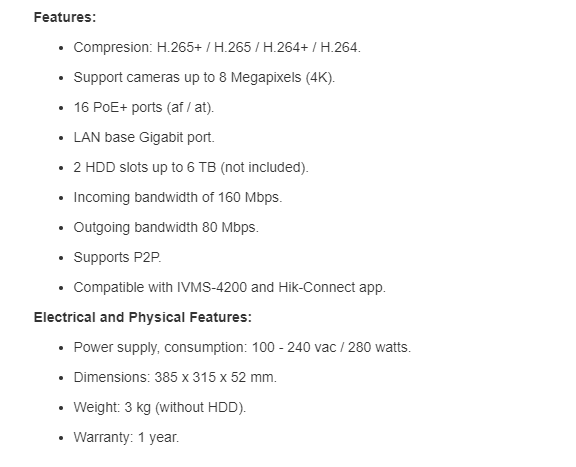

Key features & benefits

• True 4K Recording — Supports cameras up to 8 megapixels (4K), delivering the resolution detail required for license-plate capture, facial recognition workflows, and post-incident forensic review.
• 16 Integrated PoE+ Ports — Built-in IEEE 802.3af/at PoE+ ports power and connect up to 16 IP cameras over a single Cat cable each, reducing switch hardware and simplifying installation.
• Efficient H.265+ Compression — Multi-tier codec support — H.265+, H.265, H.264+, and H.264 — allows administrators to balance recording quality against storage consumption and maximize the life of installed hard drives.
• High-Throughput Bandwidth — A 160 Mbps incoming and 80 Mbps outgoing bandwidth architecture sustains simultaneous high-resolution recording and remote live-view without dropped frames or buffering.
• Dual HDD Expansion — Two internal HDD bays each support up to 6 TB, providing up to 12 TB of raw onsite storage capacity scalable to retention requirements (drives not included).
• Gigabit LAN Uplink — A dedicated Gigabit base LAN port connects the NVR to the corporate or site network, keeping camera traffic isolated from general data traffic for consistent performance.
• P2P Remote Connectivity — Built-in P2P support pairs with the IVMS-4200 desktop platform and Hik-Connect mobile app for straightforward remote access without complex port-forwarding configurations.
• 4K HDMI Local Display — HDMI 4K output drives a high-resolution monitor for local live view and playback at the full native resolution of connected cameras.
