Features

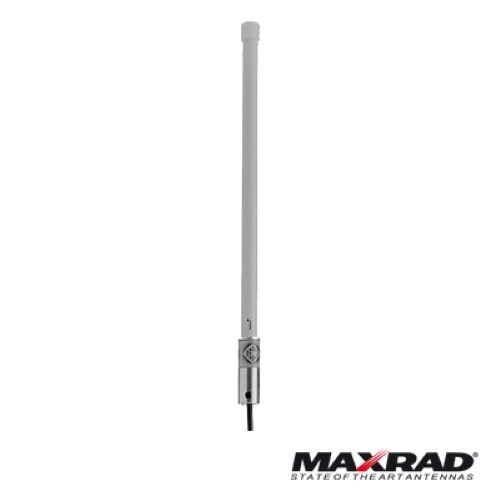

•White ultra-violet resistant pultruded ï¬berglass radome
•Thick walled aluminum mounting base
•Unity/3 dB/5 dB/7 dB models
•UPS shippable
•Factory tuned
TECNICAL DATA
Maximum Power: 150 watts
Normal Impedance: 50 ohms
Radome Material: 1.0” OD pultruded white ï¬berglass
Radiator Material: Coated steel wire
ESD Protection: DC grounded
Wind Survival: 100 mph
Termination:
Unity and 3 dB models, N Female
Mounting Base Diameter: 1-5/16”
Mounting Method:
Mast or wall mounted.
Mounting hardware is sold separately.
MMK1: light duty mast mount for antennas under 30”
MMK3: light duty mast mount for antennas over 30”
MMK4: heavy duty mast mount
MMK6: cast mounting bracket
MMK9: Aluminum mast mount for 1-5/16” OD antennas
MBSWM: wall mounting bracket for antennas over 30” (two are require
SUGGESTED MOUNTINGS:
MMK3, MMK1, MMK4, MMK6, MBSWM, MMK9
