𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

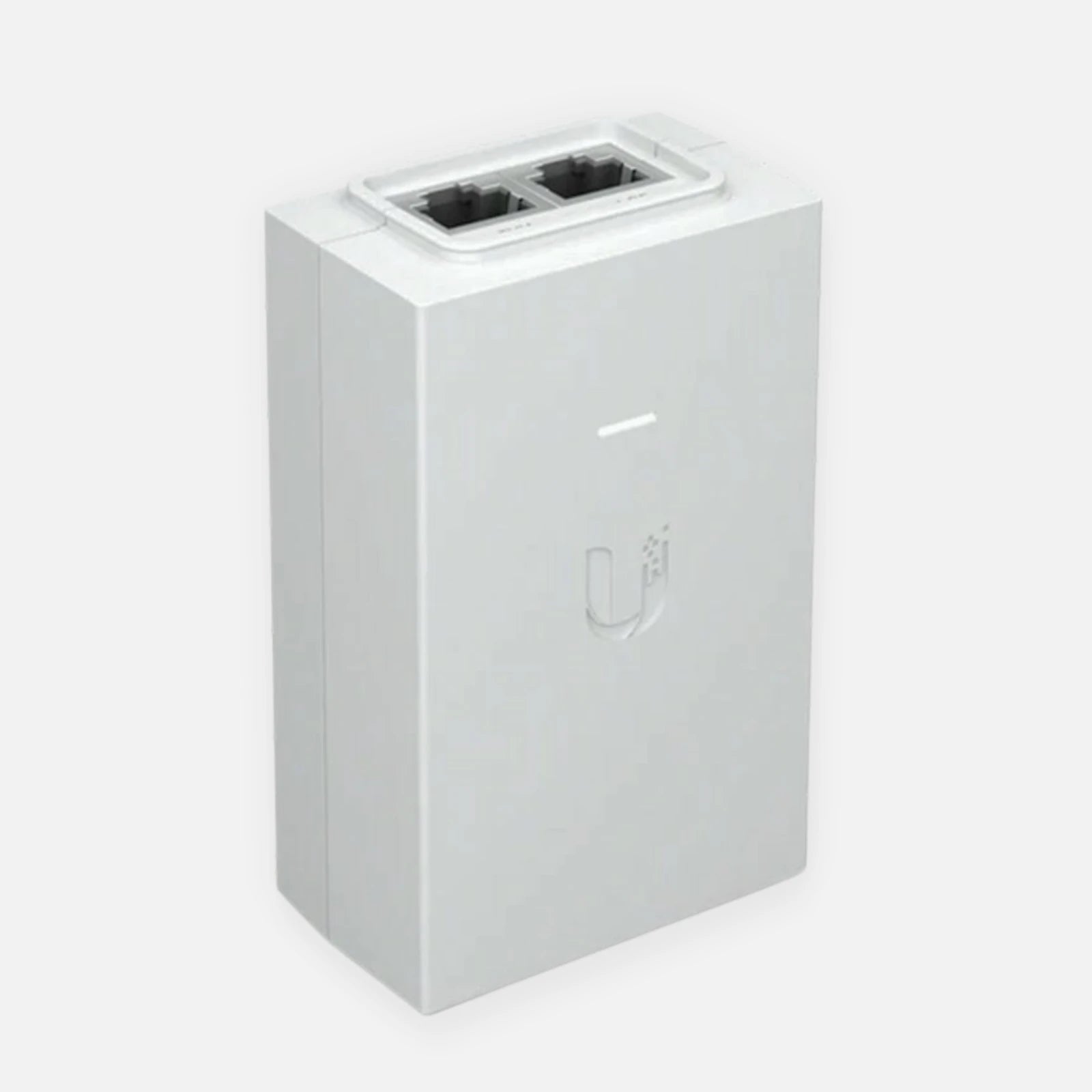

Ubiquiti POE-24-30W-G-WH Gigabit Power Injector PoE 24VDC 30W
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti POE-24-30W-G-WH Gigabit PoE injector designed to provide 24VDC power and data connectivity with integrated surge and clamping protection for compatible PoE networking devices.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Gigabit Ethernet PoE injector
• 24VDC 30W power output
• Integrated surge protection
• Clamping protection for power and data lines
• Shielded RJ45 data and PoE ports
• AC cable with earth ground support
• Compact desktop form factor
• 2-pair PoE powering configuration
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Ubiquiti
• Model: POE-24-30W-G-WH
• Output Voltage: 25VDC @ 1.25A
• Power Output: 30W
• LAN Port Type: Gigabit Ethernet
• LAN Activity Indicator: No
• Remote Reset Capability: No
• Rated Voltage: 100-240VAC @ 50/60Hz
• Input Current: 0.6A @ 120VAC / 0.4A @ 240VAC
• Inrush Current: <60A Peak @ 120VAC / <120A Peak @ 230VAC
• Efficiency: 83+%
• Output Ripple: 1% Max.
• Switching Frequency: 65kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 2-Pair Powering: Pins 4,5 (+) and Pins 7,8 (-)
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Storage Temperature: -30 to 70° C (-22 to 158° F)
• Operating Humidity: 35 to 95% Noncondensing
• AC Connector: IEC-320 C6
• Data IN / POE Port: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Maximum Surge Discharge: 1500A (8/20 μs) Power
• Peak Pulse Current: 36A (10/1000 μs) Data
• Dimensions: 94 × 60 × 33 mm (3.70 × 2.36 × 1.30 in)
• Weight: 156 g (5.5 oz)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed to provide Power over Ethernet connectivity and electrical protection for compatible Ubiquiti and other supported networking devices.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
