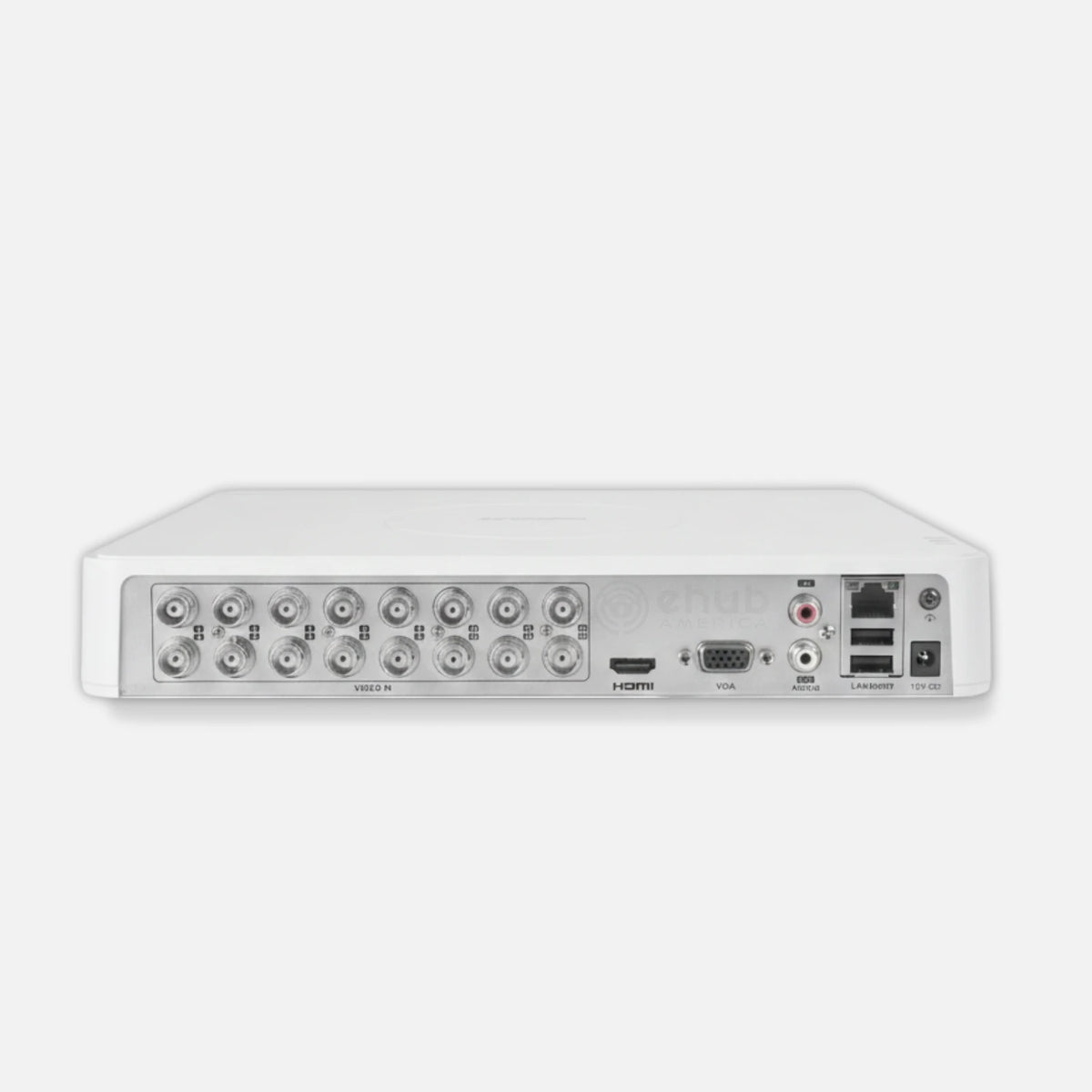

Epcom S16-TURBO-G3 DVR 1080p 16 Channels TURBO HD 2 Channels IP Full HD Video H.265+ AHD TVI CVBS

The Epcom S16-TURBO-G3 is a 16-channel 1080p Lite TurboHD DVR designed for hybrid surveillance deployments that mix analog and IP camera technologies. It accepts HD-TVI, CVI, AHD, CVBS, and IP inputs across up to 18 total channels—16 analog plus 2 IP—giving integrators the flexibility to build or expand systems without replacing existing analog infrastructure. H.264+/H.264 compression keeps storage demands manageable, while simultaneous HDMI and VGA output supports dual-monitor control rooms. P2P cloud connectivity and remote-access client support extend situational awareness beyond the local site, making the S16-TURBO-G3 a practical choice for small-to-midsize commercial, retail, and institutional security installations.

Key features & benefits

• Hybrid 18-Channel Architecture — Accommodates 16 TurboHD/analog channels alongside 2 IP channels (up to 1 MP each), allowing a single recorder to serve mixed-generation camera estates without additional hardware.
• Broad Camera Protocol Support — Natively accepts HD-TVI, CVI, AHD, CVBS, and IP signals, protecting existing camera investments while leaving room to introduce IP cameras as the system evolves.
• H.264+ / H.264 Video Compression — H.264+ encoding reduces bitrate and storage consumption compared to standard H.264, helping extend the usable capacity of the single SATA drive bay that supports HDDs up to 6 TB.
• Simultaneous HDMI and VGA Output — Both display outputs operate concurrently, enabling a dedicated monitoring workstation and a secondary display or projector to run from a single recorder without a splitter.
• Multi-Resolution Recording Flexibility — HD-TVI, AHD, and CVI channels record at 1080p Lite or 720p at 12 IPS; CVBS channels record at WD1 at 30 IPS, matching resolution and frame-rate choices to each camera type.
• Comprehensive Network Protocol Stack — Supports TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, and HTTPS, providing the integration hooks needed for enterprise IT environments and remote notification workflows.
• P2P Cloud and Remote Monitoring — Built-in P2P cloud connectivity and support for compatible client software and mobile apps enable off-site viewing and management without complex port-forwarding configurations.
• Dual-Stream Support — Simultaneous main stream (1080p Lite / 720p / WD1 / 4CIF) and sub stream (CIF / QCIF) operation allows high-resolution local recording while delivering bandwidth-efficient streams to remote viewers.
