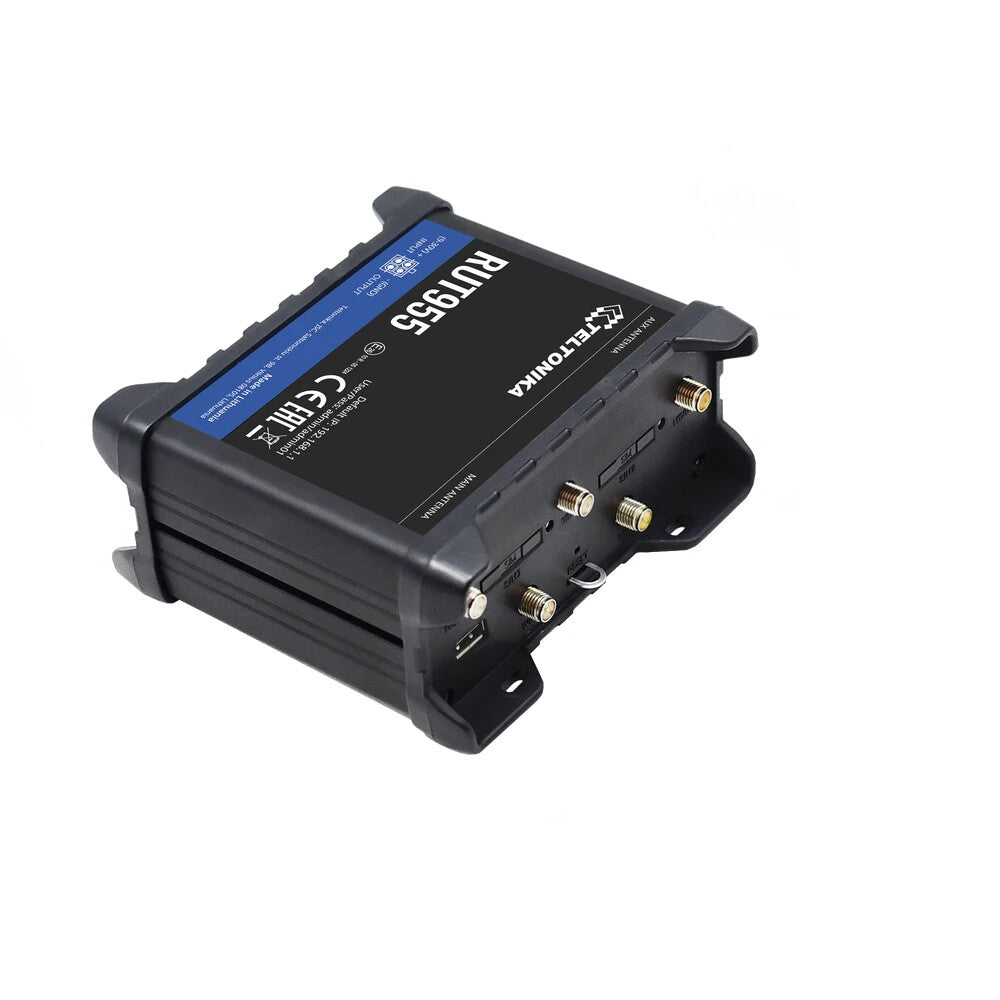

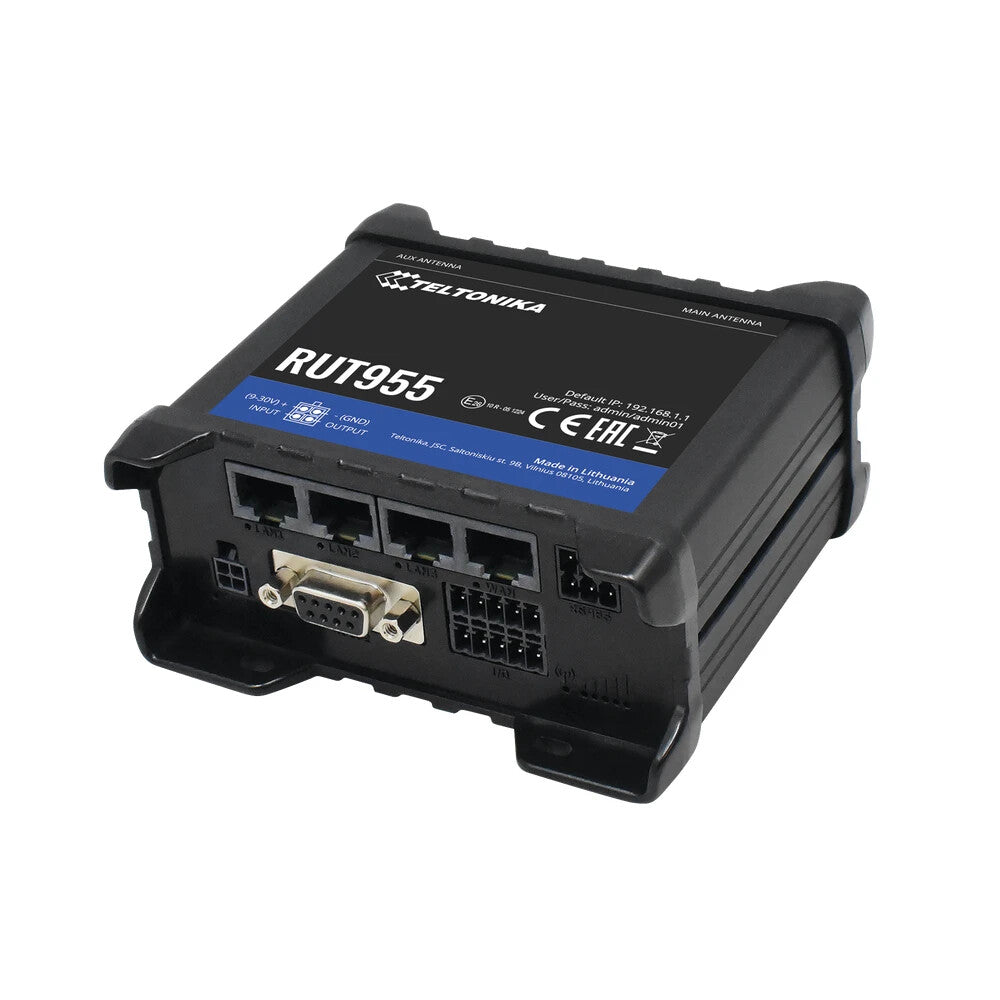

Industrial LTE 4G Router
RUT955 is a highly reliable industrial LTE Cat 4 router that offers high-performance and GNSS (GPS) capabilities.
Ethernet, Digital and Analog I/O, RS232, RS485, GNSS (GPS), microSD, and USB interfaces allow for an incredible variety of industrial application scenarios.
It is equipped with connectivity redundancy through dual SIM failover.
Comes with RutOS, which is packed with advanced software features such as Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPN services.
Features
General
- Remote Management System (RMS)
- Robust construction in aluminum/plastic casing with DIN rail mounting option.
- Wide operating range in extreme environments.
- Compact size.
- SKU: RUT955W03660
- Region: USA. Certificates: AT&T, T-Mobile Verizon. USA power supply
Connectivity
- 4G (LTE) Cat 4 - up to 150 Mbps, 2 SIM (Mini SIM - 2FF) Failover
- WiFi 2.4 GHz (b/g/n) - Access Point (AP) - Station (STA), 2 RP-SMA

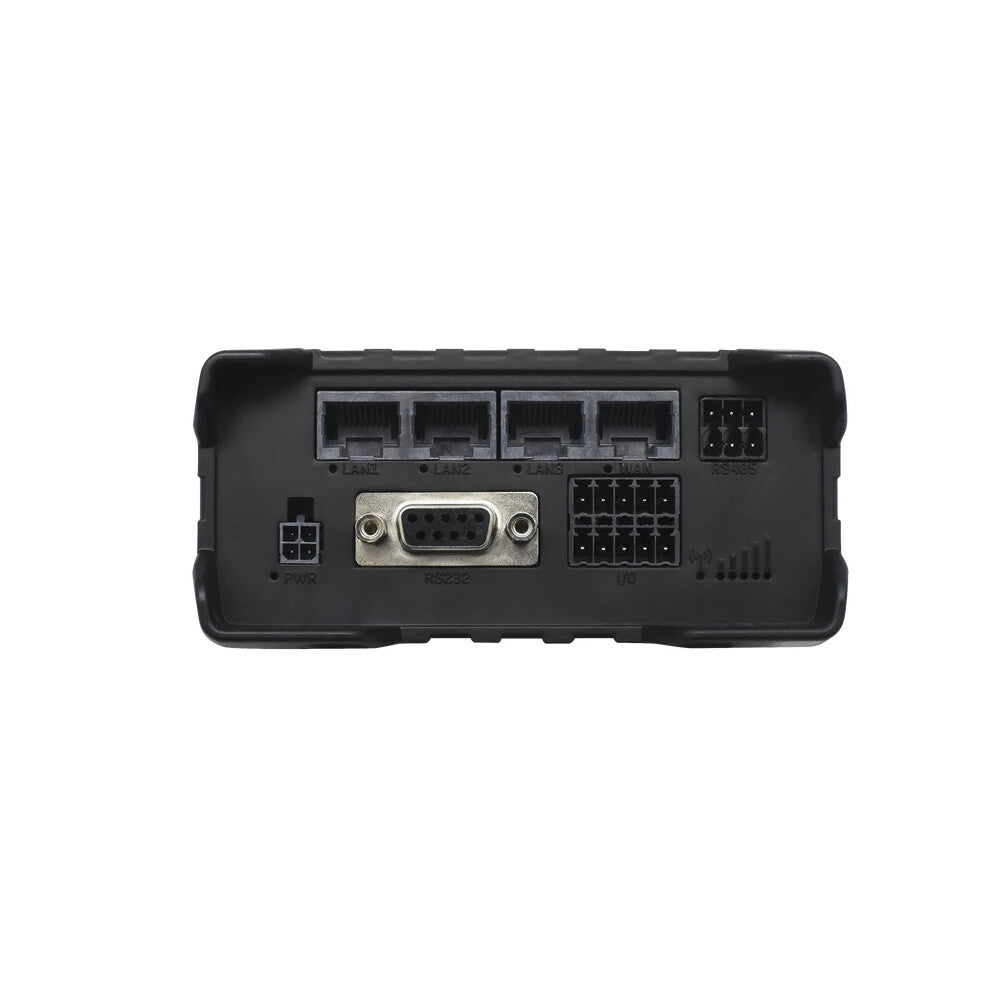

- Ethernet 4 RJ45 ports, 10/100 Mbps (1 WAN, 3 LAN)
Hardware
- CPU: 550 MHz
- RAM: 128 MB
Electrical and Physical
- Power Supply: 9 - 30 Vdc
- Power Consumption: 7 W
- Weight: 280 g
- Dimensions: 110x50x100 mm (W x H x D)
- Operating Temperature: -40 to 75°C
- Protection: IP30
