PRODUCT SPECIFICATIONS

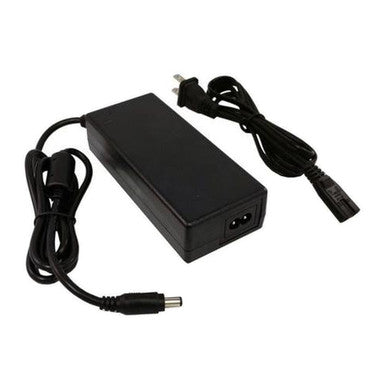

The PS 90W Series low cost auto ranging switching power supplies come in a desktop model with removable 2 prong AC Power cord. They are available in a North American plug or European Plug models. They are designed to operate in outdoor environments inside a weatherproof enclosure. They are also an excellent choice for indoor DC power.
Supplies are certified for UL, CE & comply with RoHS requirements. They have a 5.5/2.1mm DC Barrel Connector with center positive at the end of a 1.2m (48”) cable
Features
- Industrial Temperature Rating
- High Power in Compact Size
- Desktop Model with removable AC power cord
- Short Circuit and Overcurrent Protection
Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Case Size
- 140 x 60 x 34mm (5.5 x 2.4 x 1.3”)
Weight
- 435 g (15 oz )
Technical Description
- Input Operating Range: 90-264VAC 47/63Hz
- Maximum Power: 90W
- Input In-rush Current: 50A Max
- Input Current: 1.5A Max
- Static Power Consumption: 0.5W Max
- Line / Load Regulation: 1% / 5%
- Output Voltage: 24 VDC +/- 1V
- Continuous Load Current: 3.75 A
- Ripple and Noise: 240mVp-p Max
- Efficiency: 80% Minimum
- Dielectric Strength: 3000V rms / 50Hz, 3 sec, 5mA Max
- Insulation Resistance: 50M ohms min at 500VDC
- Protection: Short Circuit, Over-Current
- Operating Temp: -20°C to 60°C (-4°F to 140°F)
- Operating Humidity: 90% non-condensing
- Storage Temp: -40°C to 80°C (-40°F to 176°F)
- DC Plug / Cable Length: 5.5 x 2.1mm x 11mm DC Barrel / 1.2m (48”)
- Certifications: UL, CE, FCC, RoHS
- MTBF: 50,000 Hours Min
More Information
MFRPartNum:
PS24V-3.75
