𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

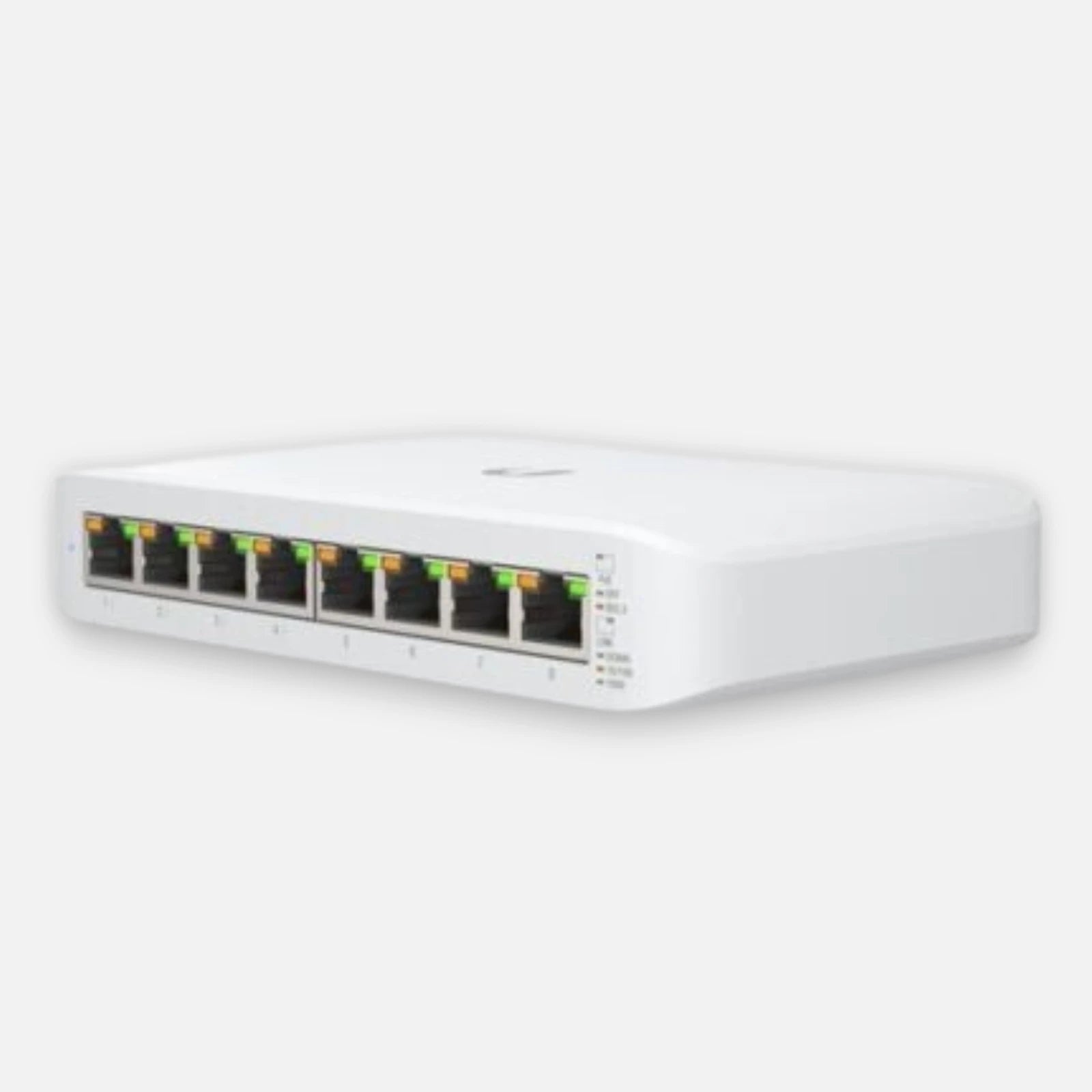

Ubiquiti USW-Lite-8-POE UniFi Switch Lite 8 PoE 8-Port Layer 2
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti USW-Lite-8-POE is a fully managed Layer 2 Gigabit switch with eight RJ45 ports, including four 802.3af/at PoE+ ports. Designed for silent, fanless operation with 52W total PoE budget using the included 54V power adapter.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking / Routers and Switches
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Model: USW-Lite-8-POE
• (8) 10/100/1000 Mbps RJ45 ports
• (4) 802.3af/at PoE+ ports
• 52W total PoE budget (with 60W power adapter)
• Up to 30W per PoE+ port
• 8 Gbps total non-blocking line rate
• Fanless, silent cooling design
• Wall-mountable (mounting kit included)
• Managed via UniFi Network web application and mobile app
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Hardware:
• Total Non-Blocking Line Rate: 8 Gbps
• Max Power Consumption: 8W
• Networking Interfaces: (8) 10/100/1000 Mbps Ethernet RJ45
• PoE Interfaces: (4) IEEE 802.3af/at PoE+ (Pins 1,2+; 3,6-)
• Max PoE+ Output per Port: 30W
• Total PoE Budget: 52W (with 60W adapter)
• Management Interface: Ethernet In-Band
• Operating Mode: SMB Layer 2 PoE Gigabit Ethernet Switch
Power:
• Power Method: 54VDC, 1.1A Power Adapter
• Power Supply: External 54V / 60W Adapter
• Supported Voltage Range: DC 50V to 57V
Environmental:
• Operating Temperature: -15°C to 40°C (5°F to 104°F)
• Operating Humidity: 10% to 90% Noncondensing
• Certifications: CE, FCC, IC
Mechanical:
• Dimensions: 99.6 × 163.7 × 31.7 mm
• Weight: 450 g
LED Indicators:
• System LED: Power (Blue/White)
• Ethernet LED: Green (1G), Amber (10/100 Mbps)
• PoE LED: Amber (IEEE 802.3af/at active)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐒𝐇𝐈𝐏𝐏𝐈𝐍𝐆
• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐑𝐄𝐓𝐔𝐑𝐍𝐒
• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐃𝐀𝐓𝐀 𝐀𝐂𝐂𝐔𝐑𝐀𝐘 𝐃𝐈𝐒𝐂𝐋𝐀𝐈𝐌𝐄𝐑
Product details are based on available manufacturer information and may be subject to change without notice.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
