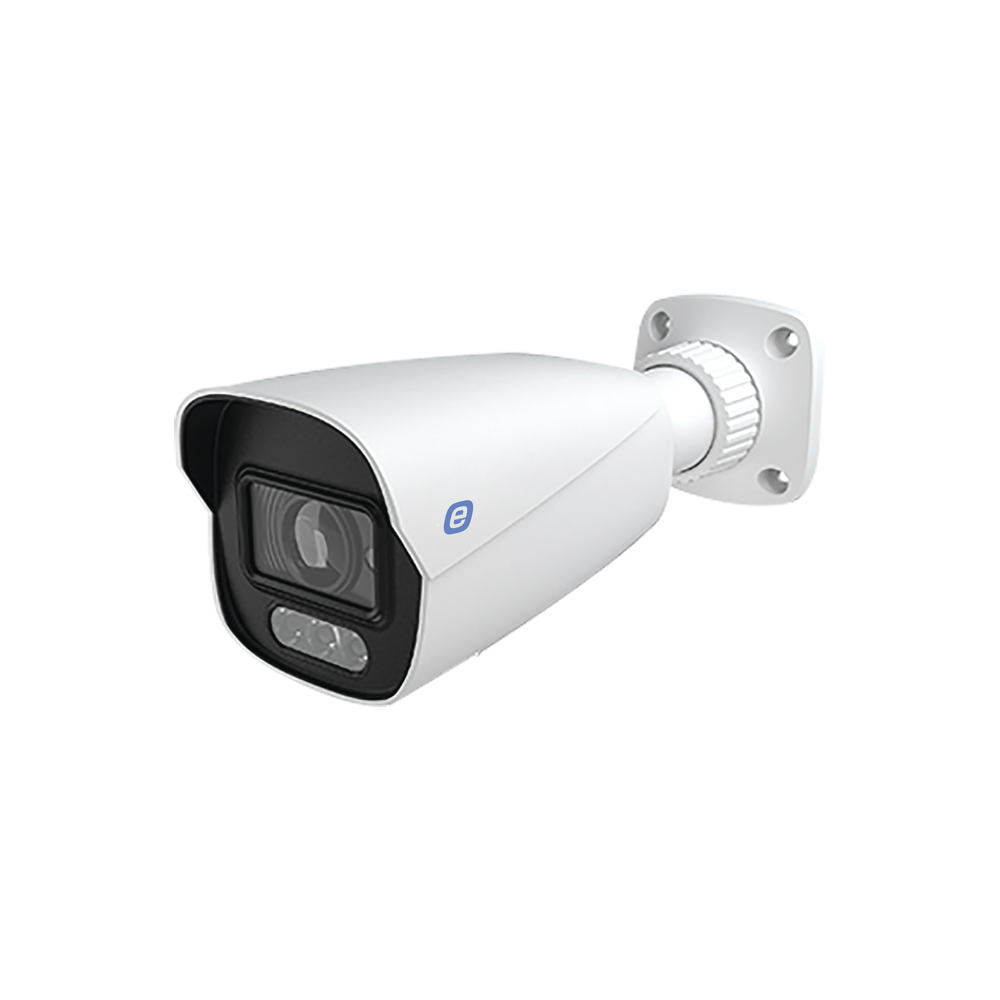

Epcom XB54CA-GEN3 IP Camera Bullet 5 MP POE WDR Micro SD IP67 2.8 mm Lens Metal

The Epcom XB54CA-GEN3 is a 5-megapixel outdoor bullet IP camera engineered for continuous, around-the-clock color surveillance in demanding environments. Built around a 2.8 mm wide-angle lens and a full-metal housing rated IP67, it delivers crisp 2592 × 1944 resolution imagery day or night through integrated white-light illumination reaching up to 30 meters. Power-over-Ethernet simplifies deployment by eliminating separate power runs, while onboard H.265/H.264 compression, a Micro SD card slot supporting up to 256 GB, and cloud recording compatibility with EpcomCloud provide flexible, layered storage strategies. Integrated video analytics covering face detection, human body detection, and vehicle detection enable intelligent event-driven monitoring without additional server-side processing. NDAA certification makes the XB54CA-GEN3 suitable for government, education, and enterprise projects with federal compliance requirements.

Key features & benefits

• 5 MP 24/7 Color Imaging — Captures full 2592 × 1944 resolution with true day/night ICR auto-switching and white-light illumination covering 20–30 m, maintaining color detail throughout the night rather than switching to monochrome.
• Advanced Image Processing Suite — 3D DNR, WDR, HLC, BLC, defog, and ROI functions work together to produce clean, balanced images across high-contrast scenes, hazy conditions, and scenes with intense point-source lighting.
• Integrated Video Analytics — Onboard face detection, human body detection, and vehicle detection reduce false alarms and enable targeted event notifications without relying on an external analytics server.
• Efficient H.265 / H.264 Compression — Support for both H.265 and H.264 codecs gives installers the flexibility to minimize bandwidth and storage consumption while preserving image quality across mixed-generation recording platforms.
• Flexible Multi-Layer Storage — A built-in Micro SD slot accepts cards up to 256 GB for edge recording, and optional cloud recording via EpcomCloud (requires ADAPTERCLOUD-08 and applicable licenses) provides off-site redundancy.
• PoE Power Delivery — IEEE 802.3-compatible Power over Ethernet consolidates data and power onto a single Cat cable, simplifying cable runs and reducing installation time in both new builds and retrofit projects.
• IP67-Rated Full-Metal Construction — The all-metal housing with IP67 ingress protection resists total dust ingress and sustained water immersion, making the camera equally suitable for indoor and harsh outdoor installations.
• Wide Operating Temperature Range — Rated from -30 °C to 60 °C (-22 °F to 140 °F), the XB54CA-GEN3 maintains reliable operation in cold-climate and high-heat environments without supplemental heating or cooling.
• NDAA Certified — NDAA certification confirms compliance with Section 889 of the National Defense Authorization Act, supporting procurement eligibility for federal agencies, contractors, and institutions subject to federal funding requirements.
• Open Standards via ONVIF and P2P — ONVIF conformance enables integration with a broad ecosystem of third-party VMS platforms and recorders, while P2P support streamlines remote viewing setup without complex network configuration.
