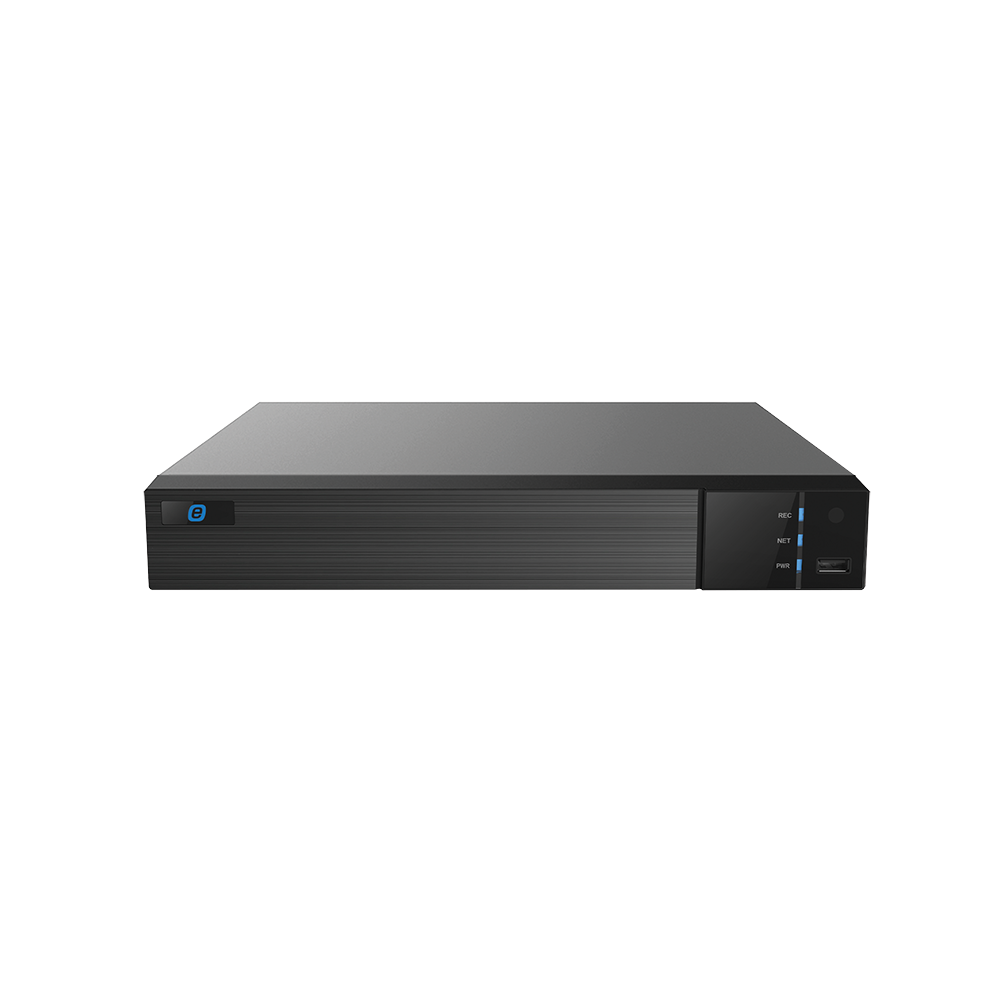

Epcom XR432/16-GEN3 NVR 8MP (4K) 32 Channels IP 16 POE Ports H.265+ Video Output in 4K

The Epcom XR432/16-GEN3 is a professional-grade 32-channel IP network video recorder engineered for demanding surveillance deployments that require high-resolution recording, intelligent analytics, and scalable storage. Delivering 4K ultra-high-definition video output at a maximum resolution of 3840×2160 (8MP), it provides the image fidelity that modern security operations demand. Sixteen integrated PoE ports simplify camera installation by consolidating power and data over a single cable run, while dual 100 Mbps uplink interfaces support integration into existing network infrastructure. Efficient H.265+ compression reduces storage consumption without sacrificing image quality, and support for up to four SATA hard drives—each up to 10 TB—enables substantial on-site retention capacity. Built-in facial recognition and cloud recording readiness via EpcomCloud position this recorder as a forward-looking platform for organizations that need both local reliability and remote accessibility. NDAA certification makes it suitable for federally conscious deployments.

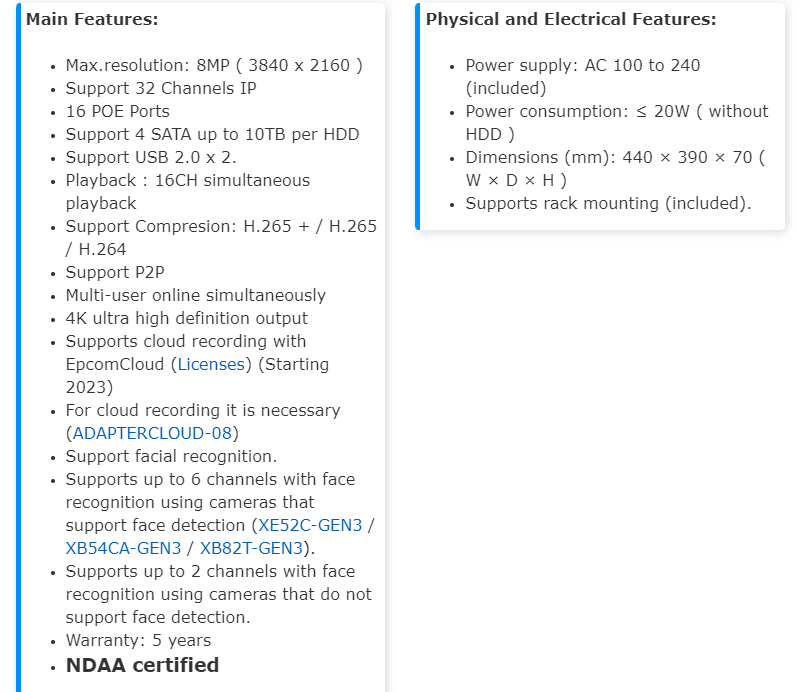

Key features & benefits

• 32-Channel IP Recording at 4K — Accommodates up to 32 IP camera streams and delivers 4K ultra-high-definition video output at 3840×2160, ensuring that recorded and displayed footage retains the detail required for positive identification and forensic review.

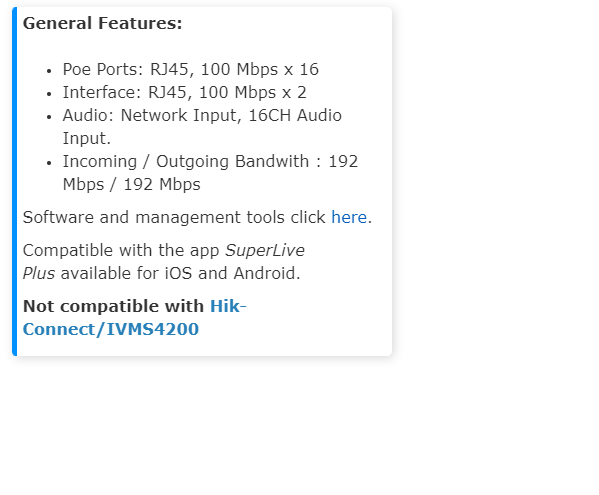

• 16 Integrated PoE Ports — Sixteen RJ45 PoE ports rated at 100 Mbps each power and connect cameras directly to the NVR, reducing cabling complexity and the need for separate power injectors or switches across the installation.
• H.265+ Compression with Multi-Format Support — H.265+, H.265, and H.264 compression are all supported, allowing the recorder to work with a broad range of IP cameras while keeping storage and bandwidth consumption to a minimum.
• Scalable Local Storage—Up to 4 HDDs at 10 TB Each — Four SATA bays, each supporting drives up to 10 TB, provide substantial on-site retention capacity that can be scaled as retention requirements grow.
• Facial Recognition Analytics — Supports facial recognition on up to 6 simultaneous channels when paired with cameras that include onboard face-detection capability, and on up to 2 channels with cameras that do not support face detection, enabling proactive identity-based alerts.
• Cloud Recording via EpcomCloud — Integrated P2P connectivity and compatibility with EpcomCloud (licenses required, available from 2023) extend recording and remote access beyond the local network, providing redundancy and anywhere access through the SuperLive Plus mobile app on iOS and Android.
• 16-Channel Simultaneous Playback — Up to 16 channels can be reviewed concurrently during playback, allowing security teams to rapidly reconstruct events across multiple camera views without switching between streams.
• NDAA Certified — NDAA certification addresses supply-chain compliance requirements relevant to government agencies, critical infrastructure operators, and contractors subject to federal procurement standards.
• Rack-Mountable Form Factor — Standard rack-mount hardware is included, and the 440×390×70 mm chassis integrates cleanly into server room or equipment-rack environments, keeping deployments organized and professionally managed.
