General Specifications:
• Hanger type: Snap-in hanger
• Cables in hanger: 1
• Color: Silver
• Material type: Stainless steel
• Max. stack height: 3
• Ordering note: CommScope® standard product in Asia Pacific
• Package quantity: 10
Mechanical Specifications:
• Corrosion resistance, minimum with no degradation: ≥500 hours in salt spray chamber

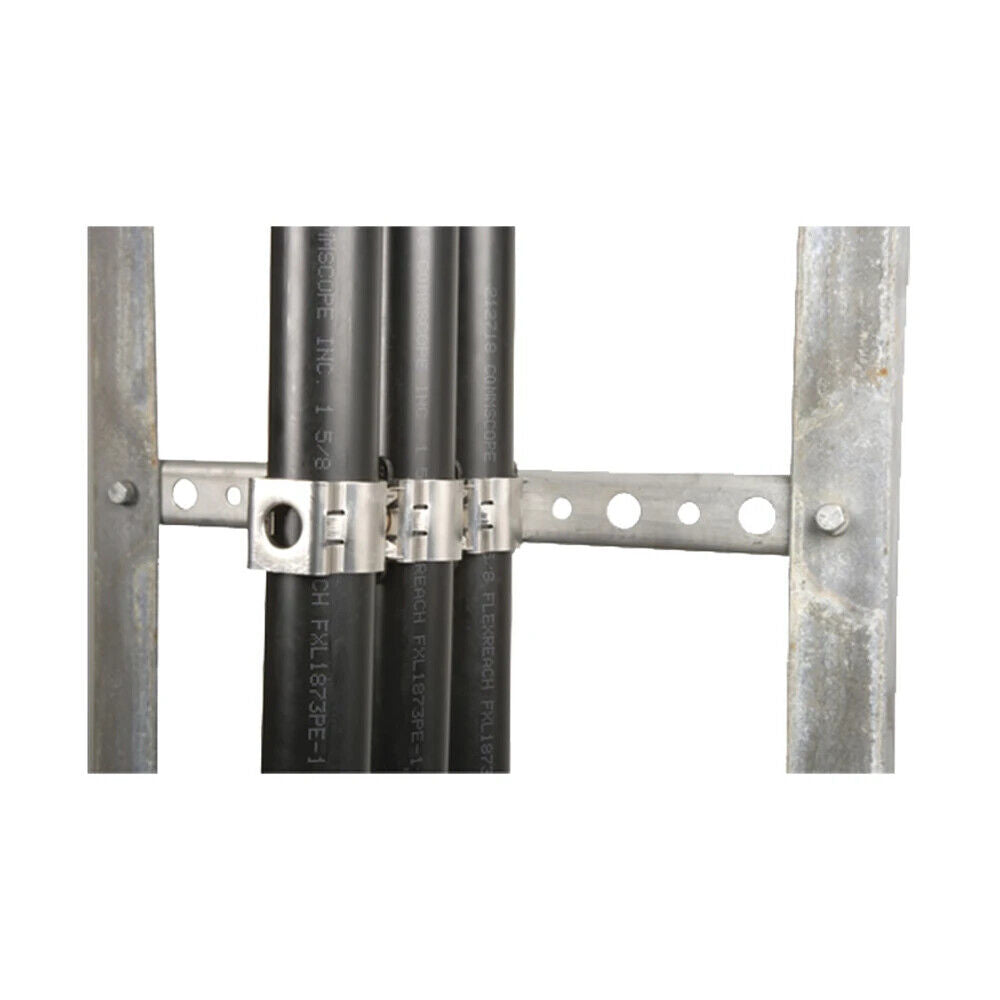

• Mount: 3/4” drilled cable ladder
• Operating temperature: -40 to +85º C (-40 to +185º F)
• Vibration survival: ≥4 hours at resonant frequency
• Environmental strength capability: Double cable weight
Dimensions:
• Nominal size: 1/2” in.
• Max. compatible diameter: 0.640” in. (16.256 mm)
• Min. compatible diameter: 0.540” in. (13.716 mm)
• Height: 1.61” in (41 mm)
• Length: 2.60” in. (66 mm)
• Width: .90” in. (22.80 mm)
Packed Dimensions:
• Height: 6” in. (15.2 cm)
• Length: 3.5” in. (9.0 cm)
• Width: 4.1” in. (0.36 kg)
• Shipping weight: 0.79 lb (10.4 cm)
