Please contact us for freight LTL shipping. Shipping not included. High Quality Fiber Optic Cable.
The loose tubes are made of high modulus plastics (PBT) and filled with water-resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with water-blocking tape. The Corrugated Steel Tape is longitudinally applied over the cable core and combined with a durable Polyethylene (PE) sheath.
Note: A forklift or ramp is required for loading/unloading and/or maneuvering for displacement for orders of 10 reels or more.
Technical Specifications:
- Single-mode G.652D Loose Tube Outdoor Fiber Optic
- For installation in pipes
- Armor Type: Steel Cover
- Cover with moisture-proof water lock
- Maximum Tension: 2200N
- Sheath Material: HDPE (High-Density Polyethylene)
- Minimum Bending Radius: Installation 25D, Operation 12.5D
- Crush Resistance: 1000N/10cm
- 24 fibers
- Black Sheath
Physical Characteristics:
- Cable Diameter (D): 11.4 ± 0.5 mm
- Operating Temperature: -20ºC to +65ºC

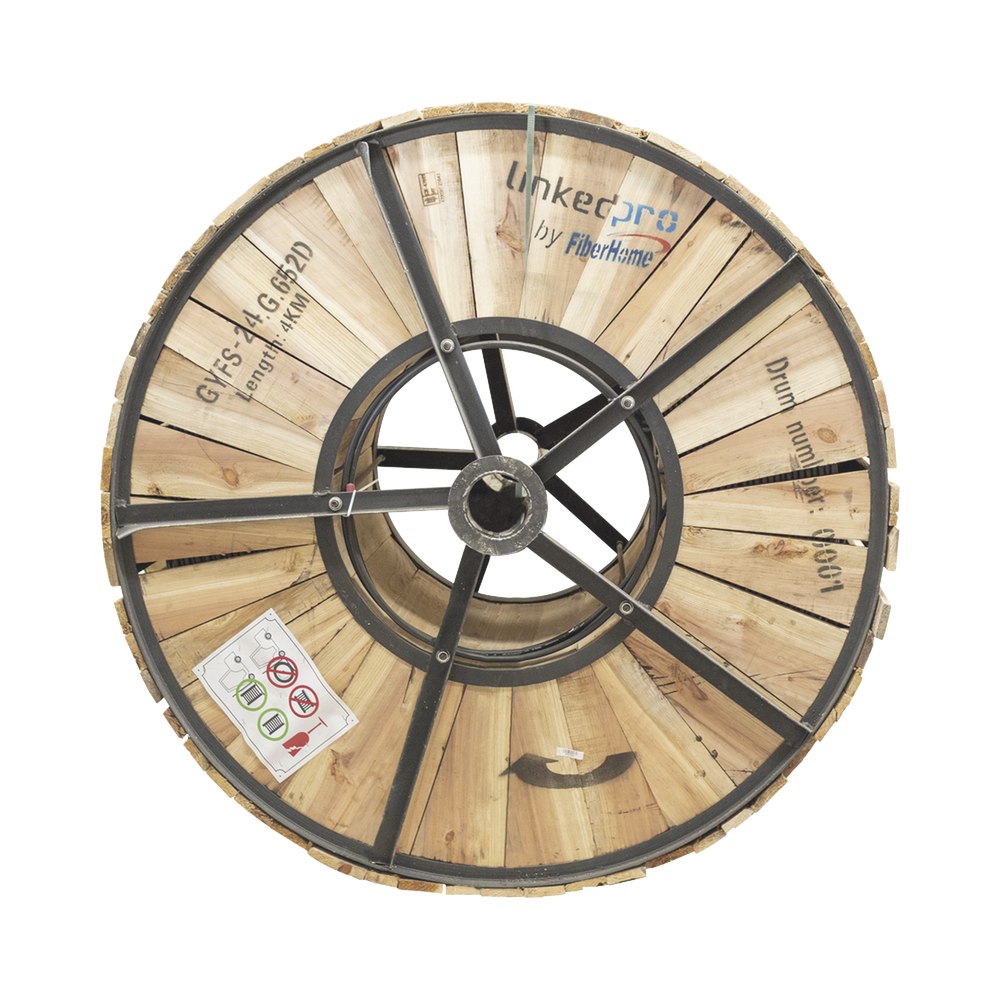

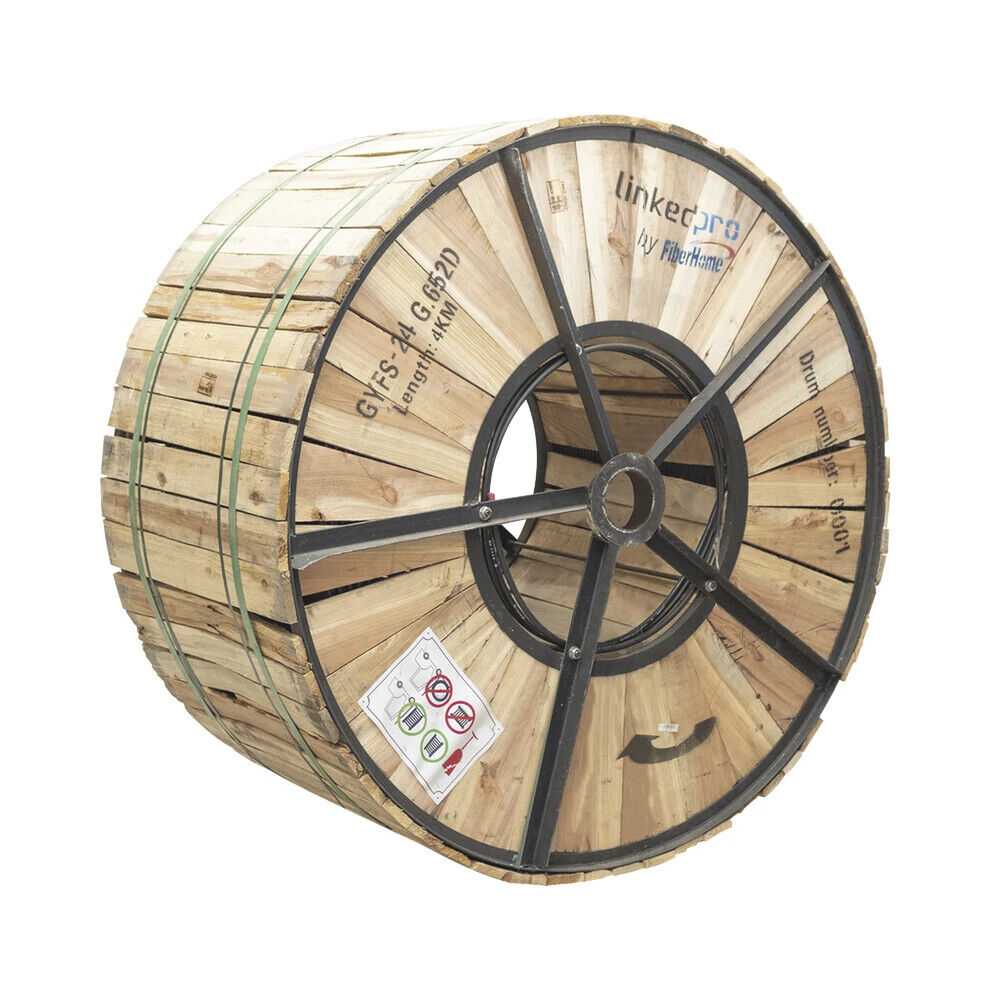

- Price per 4 km reel / 1,300 feet
- Weight: 117 ± 15 kg/km
- Dimensions (in): 55.11 x 55.11 x 29.53
- Dimensions (mm): 1400 x 1400 x 750
- Gross Weight of the 4 km reel: 1,301 lbs / 590 kg
