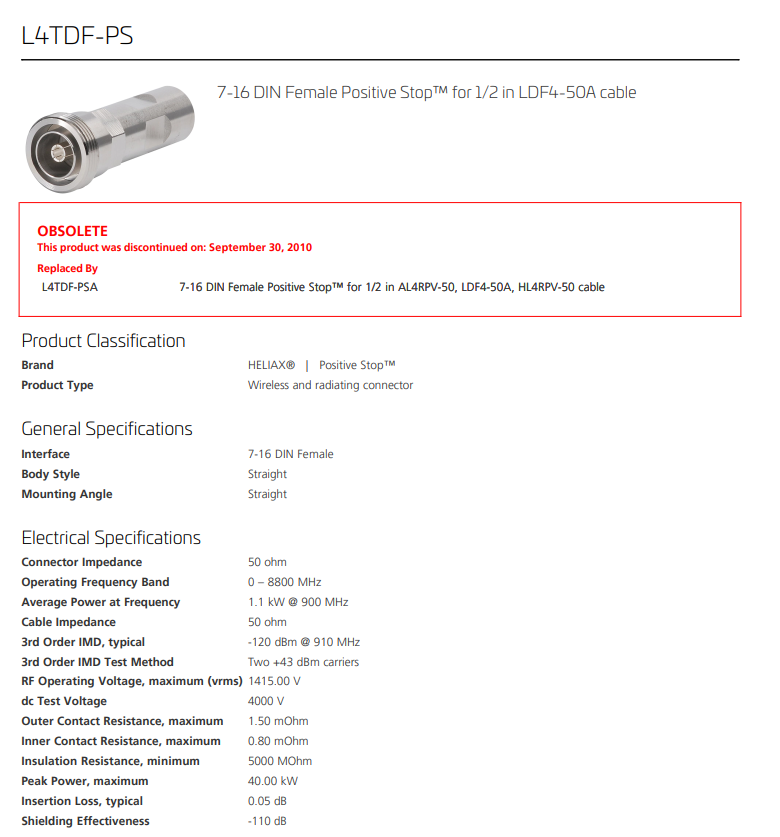

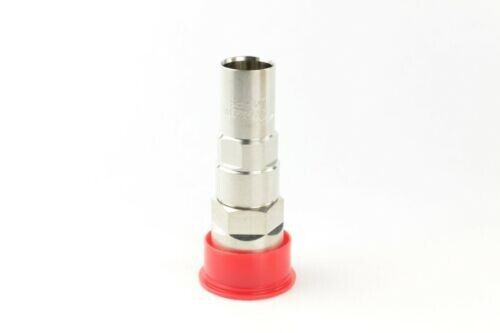

Product Classification
Brand HELIAX® | Positive Stop™
Product Type Wireless and radiating connector
General Specifications

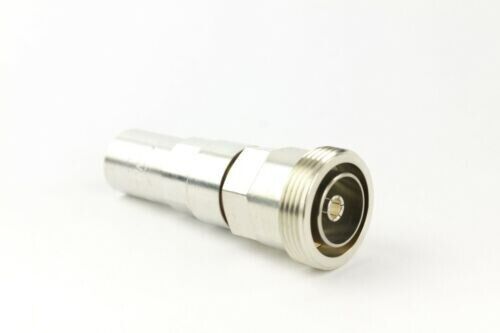

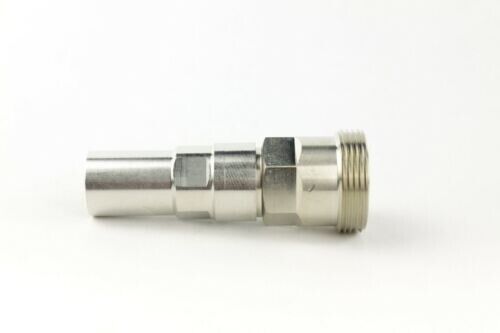

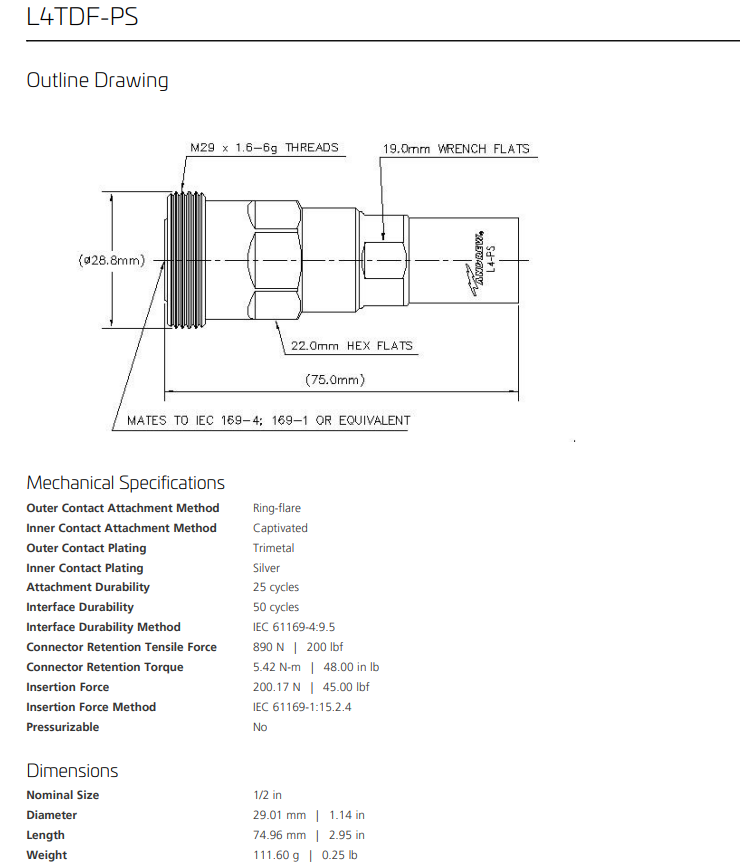

Interface 7-16 DIN Female
Body Style Straight
Mounting Angle Straight
Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 8800 MHz
Average Power at Frequency 1.1 kW @ 900 MHz
Cable Impedance 50 ohm
3rd Order IMD, typical -120 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage, maximum (vrms) 1415.00 V
dc Test Voltage 4000 V
Outer Contact Resistance, maximum 1.50 mOhm
Inner Contact Resistance, maximum 0.80 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 40.00 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness -110 dB
