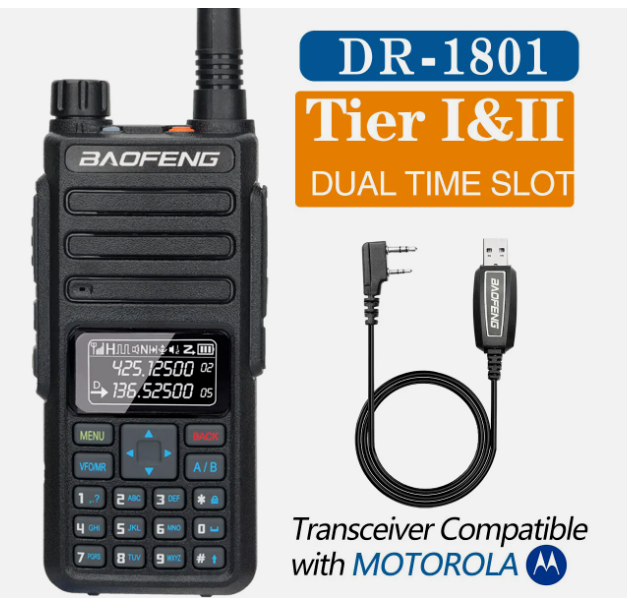

Baofeng DR-1801UV DMR Digital Radio Dual Band Tier 1+2 Walkie Talkie UHF VHF

Main features

*Dual time slot: Perfectly compatible with motorola
*Dual Band dual display dual standby

*DMR digital

*SMS function

*AMBE+2TM Vocodec

*Emergency mode

Specification

Frequency Range:VHF 136-174MHz &UHF 400-470MHz

Storage channel: 1024

Operating Voltage:DC 7.4V

Frequency Stability:±1.0ppm

Operating Temperature:-30°c ~ 60°c

Antenna Impedance:50Ω

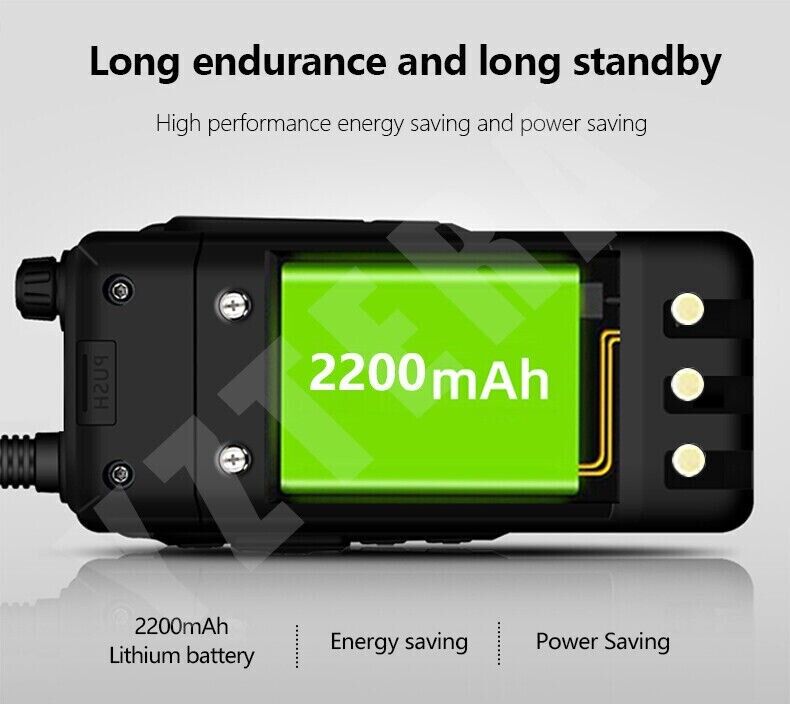

Battery Capacity:2200mAh/16.28wh

Weight: about 274g(with battery & antenna)

Volume: 136*62*36mm(antenna 14cm not including)

Transmitting

Output Power:1W/5W

Digital:Tier i&ii

Adjacent channel:≤-65dB ≤-60dB

Modulation Distortion:≤5%

Digital Protocol: ETSI-TS102 361-1,-2,-3

Vocoder type: AMBE+2TM

Receiving

Analog sensitivity:-122dBm (12dB SINAD)

Digital sensitivity:-120dBm (BER ≤5%)

Audio Power:1W

Audio Distortion:<10%

Inter-mediation:≥62dB / ≥ 58dB

Adjacent channel selectivity:≥65dB /≥60dB

Receiving current:≤380mA

PM Noise :≥ 45dB*25KHz; ≥ 40dB*12.5KHz
