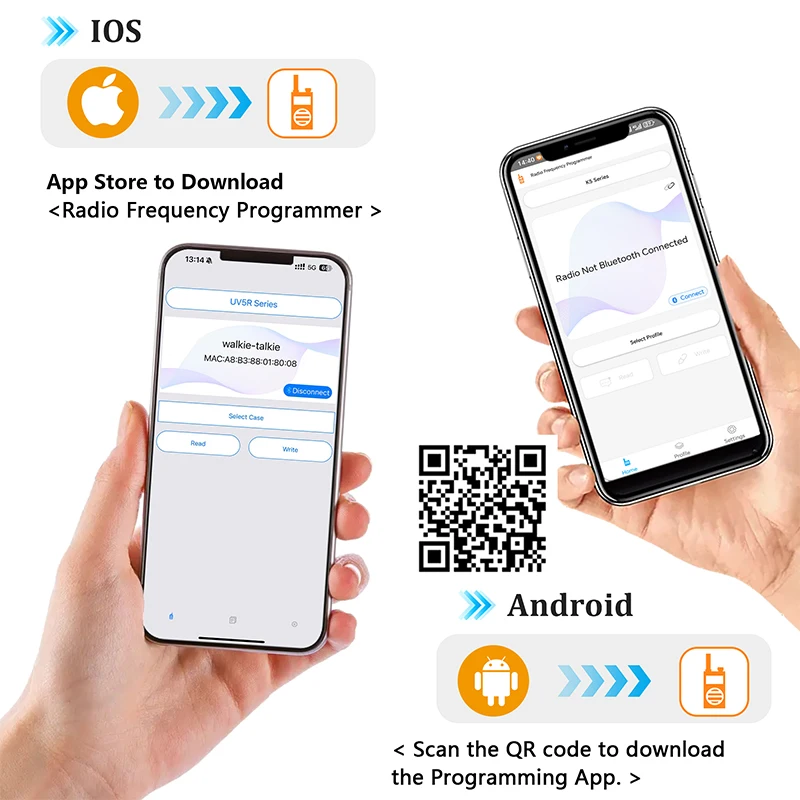

【Bluetooth APP Progamming】

You can read and write frequency through Bluetooth. Before Bluetooth read/write frequency, you need to download and install -Radio Frequency Programmer- APP.
Walkie Talkie operation is as follows:
1. Press [Menu] + [3] to enter Bluetooth frequency writing.
2. Press [Menu] + [4] ▲or ▼ to select "On";

【GPS】

【10 NOAA Weather Stations】

Broadcast the Hazard weather at the first time,earns a critical time for you to get full preparation

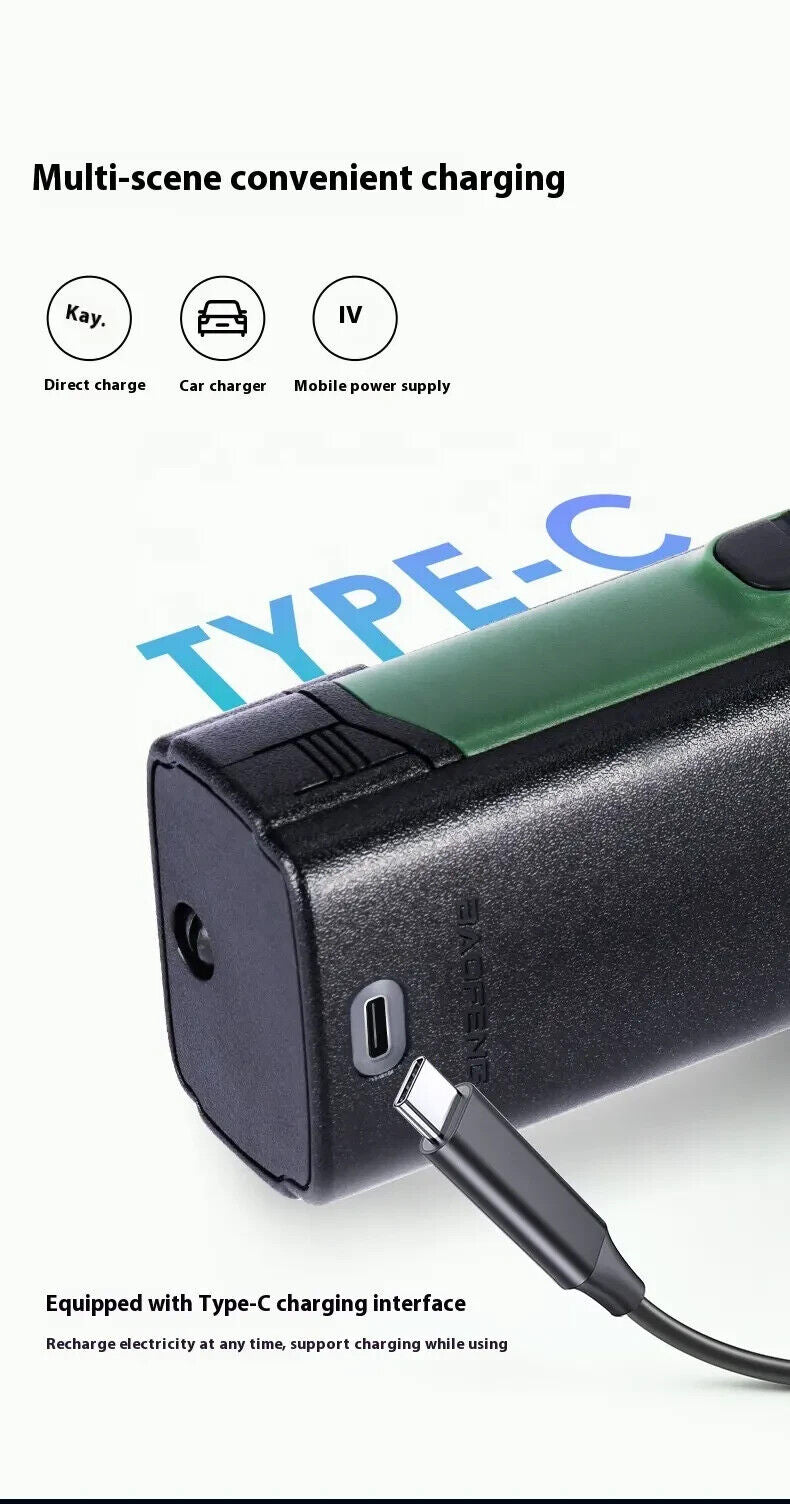

【Type-C USB Charging】

Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-32 is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.

【Wireless Copy Frequency】
Press the button to enter the"SEARCH"interface. Press   again and the UV-32 will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.

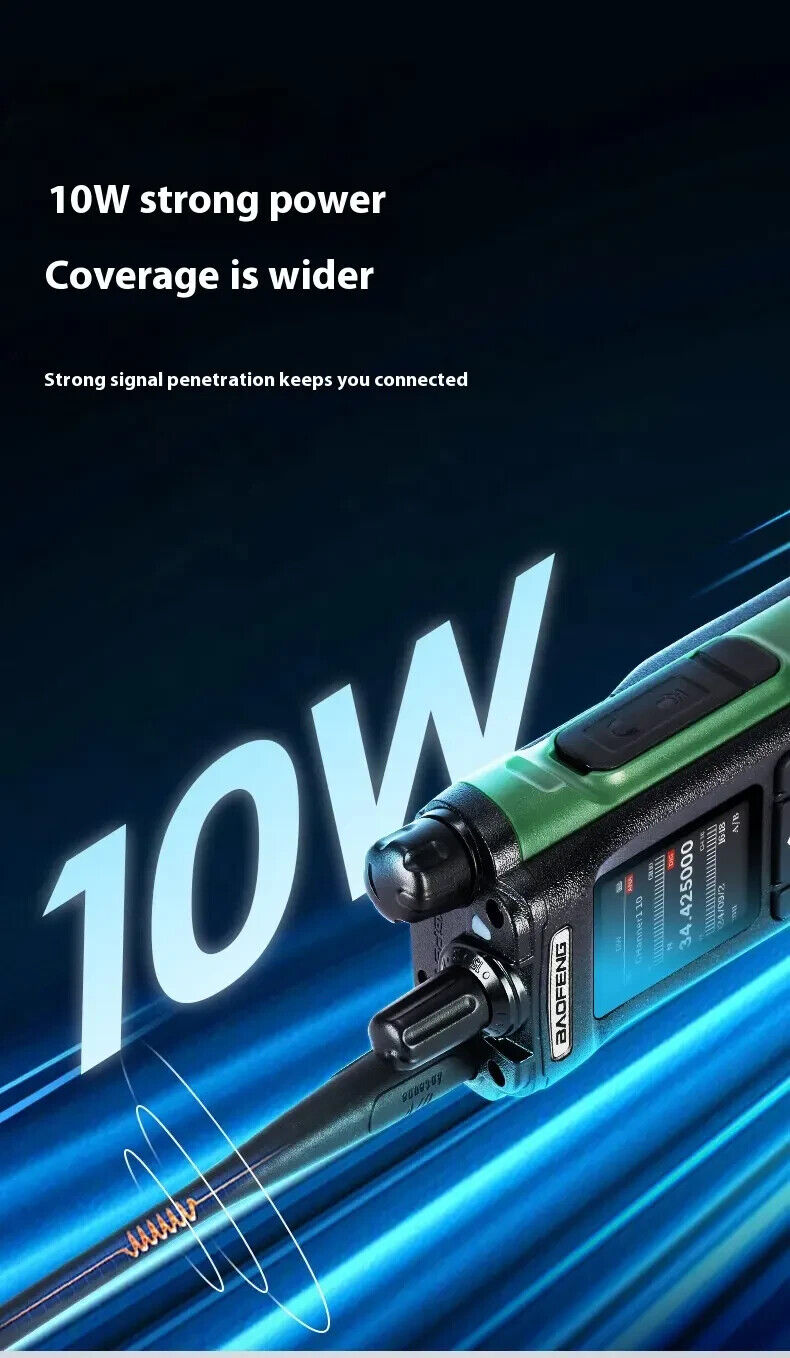

【True 10W 】

In open areas such as flat land and unobstructed suburbs, the communication distance can be up to 4-10 miles; in the forest, the call distance can be up to 3-4 miles; in the city, the callable distance can be up to 2-3 miles (the callable distance is determined by the real environment).

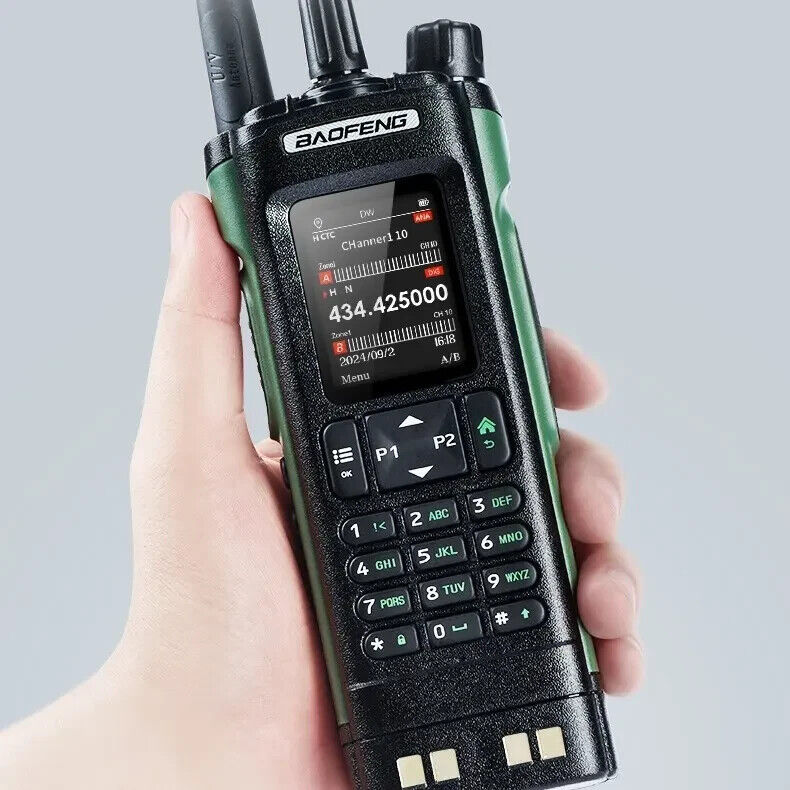

【2.0"Large Screen】
2.0" TFT large screen, full keyboard, fully open menu operation.

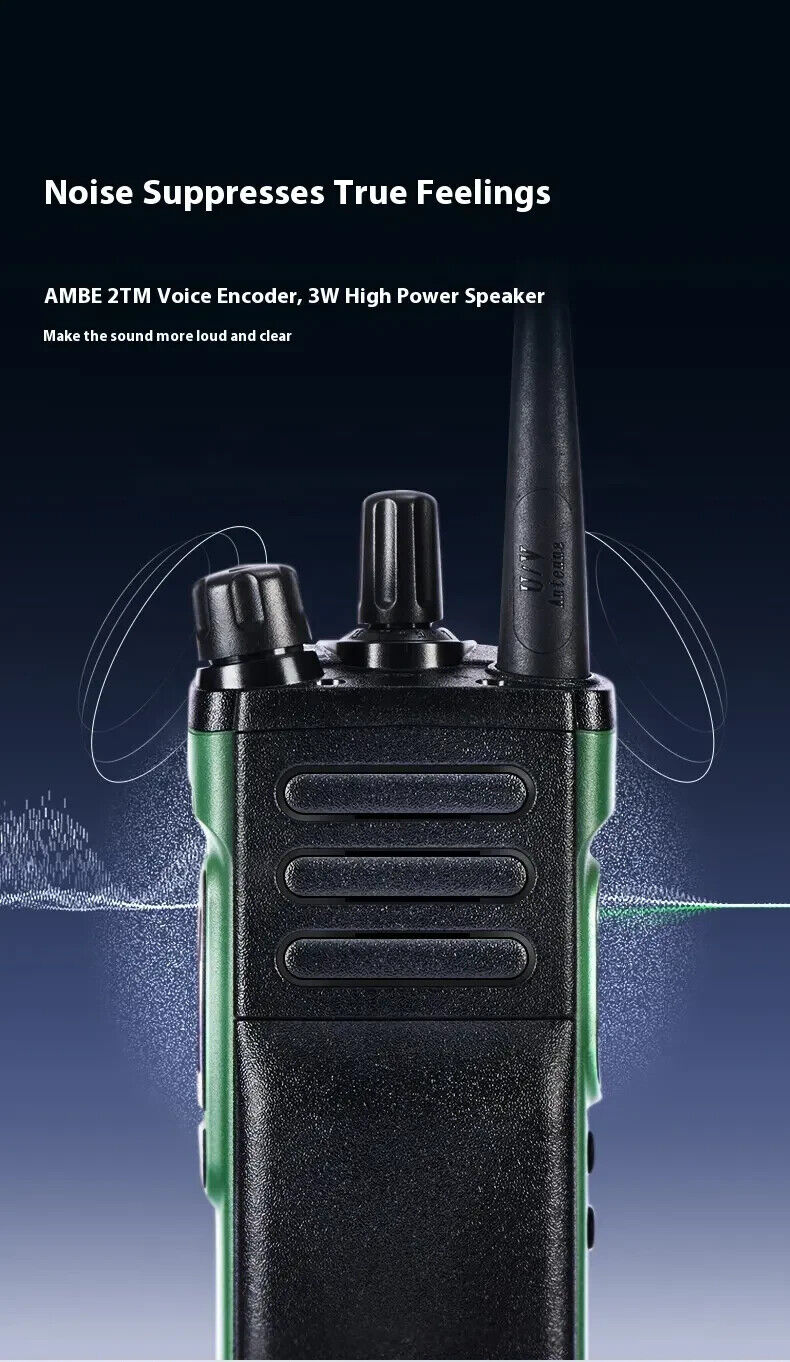

【High-quality speakers】
High-quality speakers for effective noise reduction. Good call sound quality, clearer sound.

【Hard Shell】
Hard shell, anti-drop, anti-dust. No fear of falling.

【Product Dimension】

【Installation of the protective sleeve effect show】

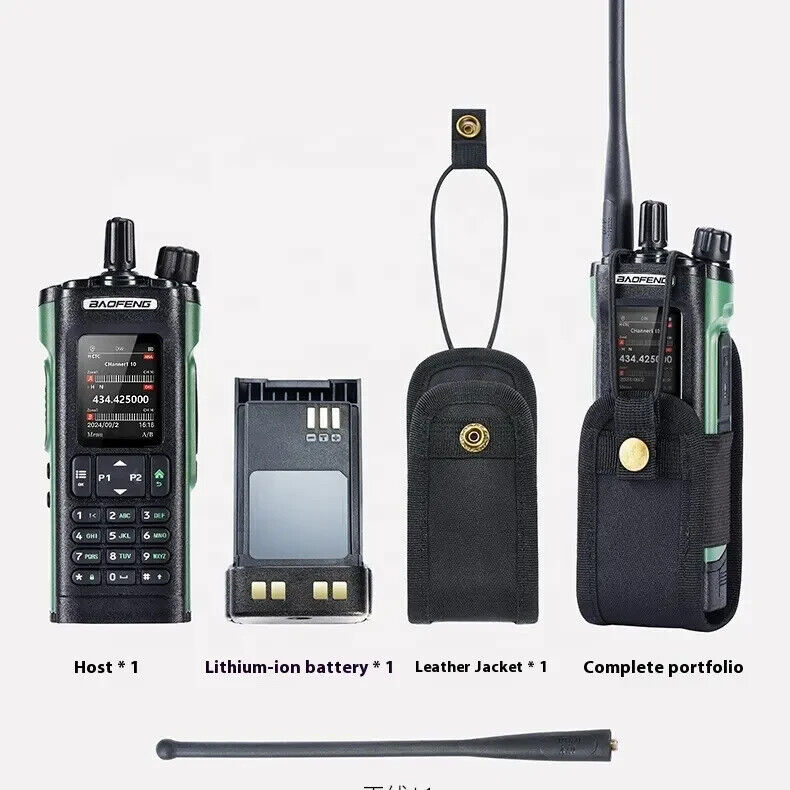

【Standard Package】

【Features and Functions】

 • 2.0" TFT large screen, full keyboard, fully open menu operation
• GPS positioning function
• Bluetooth APP application, Reade or write radio data
• 10 zones storage, Up to 1000 named memory channels.
• High/Middle/Low power selectable.
• Scanner function: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, scan channel addition and removal
• Built-in input method, allows this device to edit channel name
• NOAA Weather Radio Channel Reception in the United States and Canada(*North American countries and territories only)
• Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K
• Type-C direct charging and charging stand, more convenient battery life
• Dual-band handheld transceiver.
• VOX (voice activated transmit).
• High Capacity Lithium-Ion battery.
• Broadcast FM radio receiver 78-108 MHz
• Alarm function.
• Display illumination programmable via keypad
• Function beep on the keyboard.
• Dual watch / Dual reception.
• One touch search frequency
• Two (2) pins for Kenwood accessory port
• Scanning receiver frequency range: FM 76-108 MHz; AM 108-136MH2, VHF 136-174MH2, 220-260MHz, UHF:350-390MH2, 400-520MHz

【General】

Channel Capacity:1000/10 Bank
Channel Spacing:25.0 KHz/12.5 KHz
Input Voltage:7.4 VDC
Battery Life: 5% TX, 5% RX, 90% Standby:Li-on: 18 hours @ 5 watts
Operating temperature:-10°C to 60°C
Antenna Impedance:50Ω
Radio Dimensions:182×67x41mm (not including antenna)
Radio Weight:About 350g (with Li-on battery)
【Transmitter】
Frequency Range (TX):
144 to 148 MHz, 420 to 450 MHz (America version)
144 to 148 MHz, 430 to 450MHz (Canadian version)
144 to 146 MHz, 430 to 440MHz (European Union version) *
Modulation:16KOF3E/11KOF3E
Spurious Emission:-16 dBm<1GHz, -16 dBm> 1GHz
Frequency Stability:±2.5 ppm
Audio Distortion:≤5%
FM Hum & Noise:40 dB
【Receiver】
Frequency Range:
FM76-108MHz; AM108-136MHz;
VHF: 136-174 MHz; 220-260MHz; UHF:350-390MHz; 400- 520 MHz;
Sensitivity: 12 dB SINAD:-120 dBm
Adjacent Channel Selectivity:-60 dBm
Intermodulation and Rejection:-70 dBm
Rated Audio Power Output:0.75 Watts @16Ω
Rated Audio Distortion:≤5%
NOTE: All specifications may be modified without prior notice or lability. Thank you.

Package Included:
1x Baofeng Radio
1X Antenna
1X battery
1X USB Type-C Charger
1X Charger Base
1X Lanyard
1X User manual
1X Box
