▶ FCC ID: 2AJGM-BF-88A
▶ Upgraded Version of our BF-888S. It has an extra slim body,
loud crystal-clear RX audio, Long distance capability, Great battery life, Multi-Feature Functions and it's very easy to use for all ages.
▶ Frequency Range: UHF: 462MHz-467MHz.16 channel; 50 CTCSS/105 CDCSS; VOX Function; Voice Prompt and built in LED Flashlight.
▶ Our FRS Radio Walkie Talkies are perfect for the following applications: security guards, supermarket personnel, construction crews, outback survival, biking and hiking.
▶ How easy is it? Turn it on, press the key to Talk, adjust volume to listen. Also comes with earpiece for private conversations. Has a robust belt clip. Battery power-saving features extended battery life. It tells you when you need to connect it to the provided intelligent charger.
This is one of the smartest and smallest walkie talkies available. This lightweight and compact mini walkie-talkie pack a real punch. It's ideal to stay connected with family or friends in parks, shopping malls, sporting events, concerts-virtually any indoor or outdoor activities. It operates on the license-free family radio system channels.
Features:
● USB DC 5V
● FRS Radio
● 0.5W
● Multi Channels
● 38 CTCSS,83 DCS sub-channel
● Up to 3KM Range
● Power off resume
● Low battery checking
● Auto Squelch
● Auto Battery Saving
● Internal VOX (5 adjustable voice volume)
● Channel Scan
Frequency Range |
462MHz-467MHz |
RF Rated Power |
≦0.5W |
Channel Capacity |
16 |
Channel Spacing |
25KHz |
Operated Voltage |
3.7 V |
Battery |

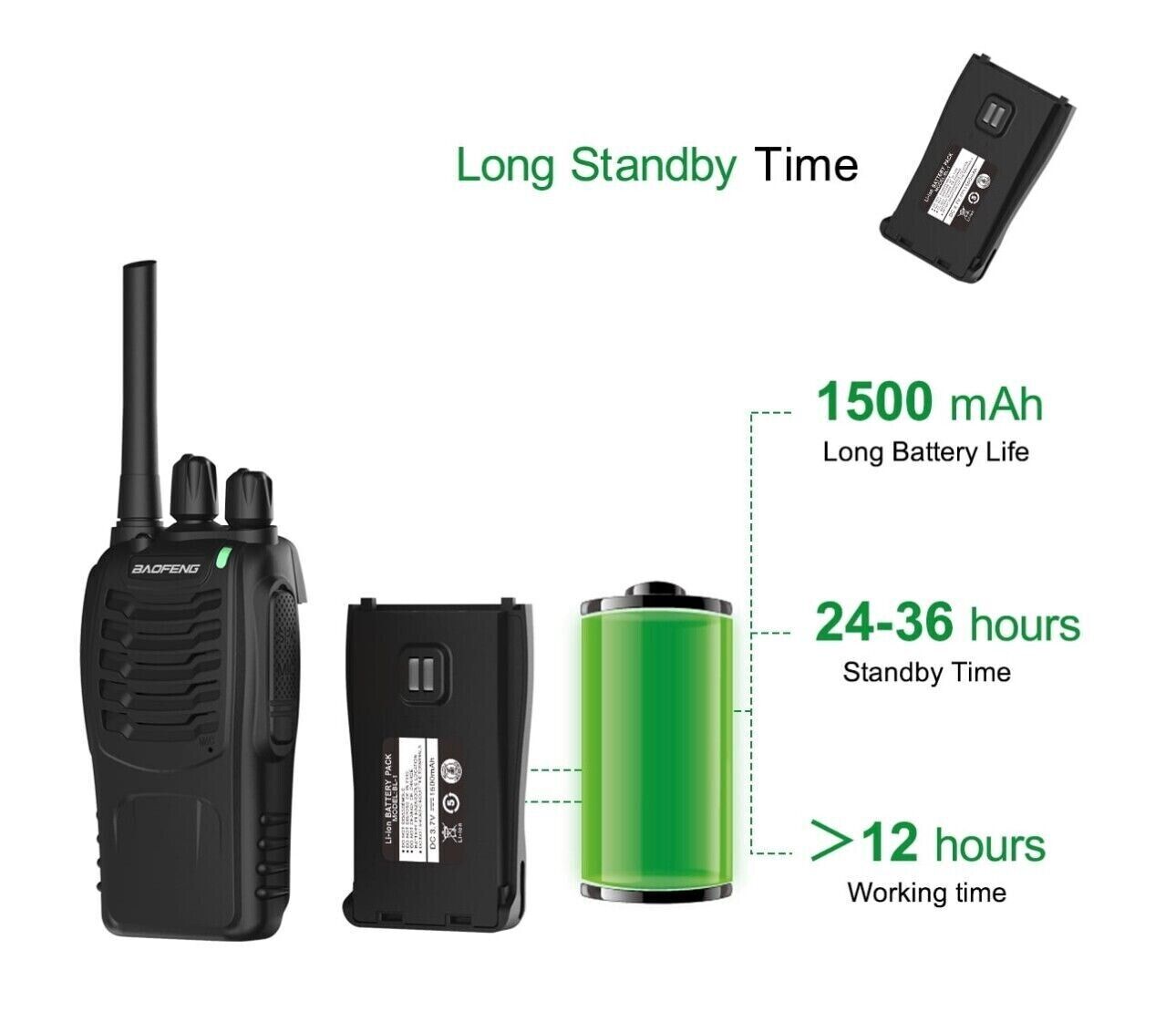

1500MAh Li-ion |
Battery Life |
About 8 hours |
Frequency Stability |
±2.5ppm |
Operated Temperature |
-30°c-+60°c |
Antenna Impedance |
50Ω |

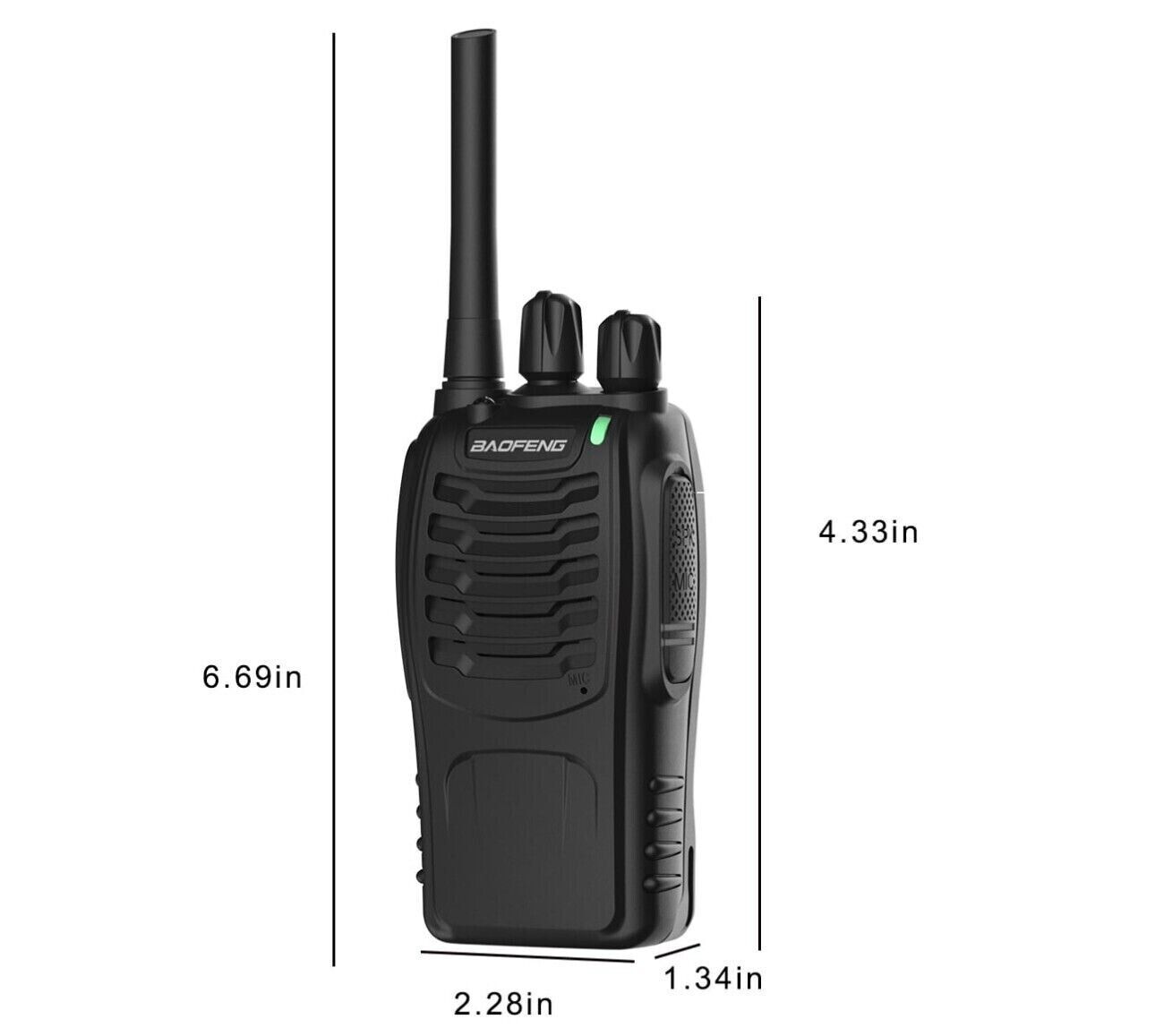

170mm×55mm×30mm |
|
Weight (with battery/antenna) |
140g |
Communication Range |
Up to 3km |
Note
Antenna Type: Compatible with SMA-Female Antenna
Earpiece & Programming Type: Compatible with K-plug earpiece/cable
What are the pre-programmed FRS/PMR channels?
Troubleshooting Guide
Guide |
|
NO Power |
Check battery installation and/or replace batteries. Voltage Capacity Quickly Go Out. The battery life is over, replace a new one |
Couldn’t communicate with other group members |
First, please verify that the channel frequency and the CTCSS you are using the same as those of your group members. If the channel frequency and the CTCSS are the same, please verify that your group members are within the radio coverage. |
Hear the voice from other groups |
Please change your CTCSS for the channel. At the same time, you also need the CTCSS for all the radios in your group. If you don’t like it, you may apply another channel frequency. |
Why can I hear the voices clearly from another group, sometimes, my voice is intermittent |
Please check whether the MIC is blocked by something. If so, please return the radio to your authorized dealer for maintenance. Sometimes, your frequency is the same as the frequency of other groups. |
Can't turn on the radio and even it is turned on, it often shuts off automatically |
Please check the battery contacts on the radio. If it is broken or twisted, please return the radio to your authorized dealer for maintenance. |

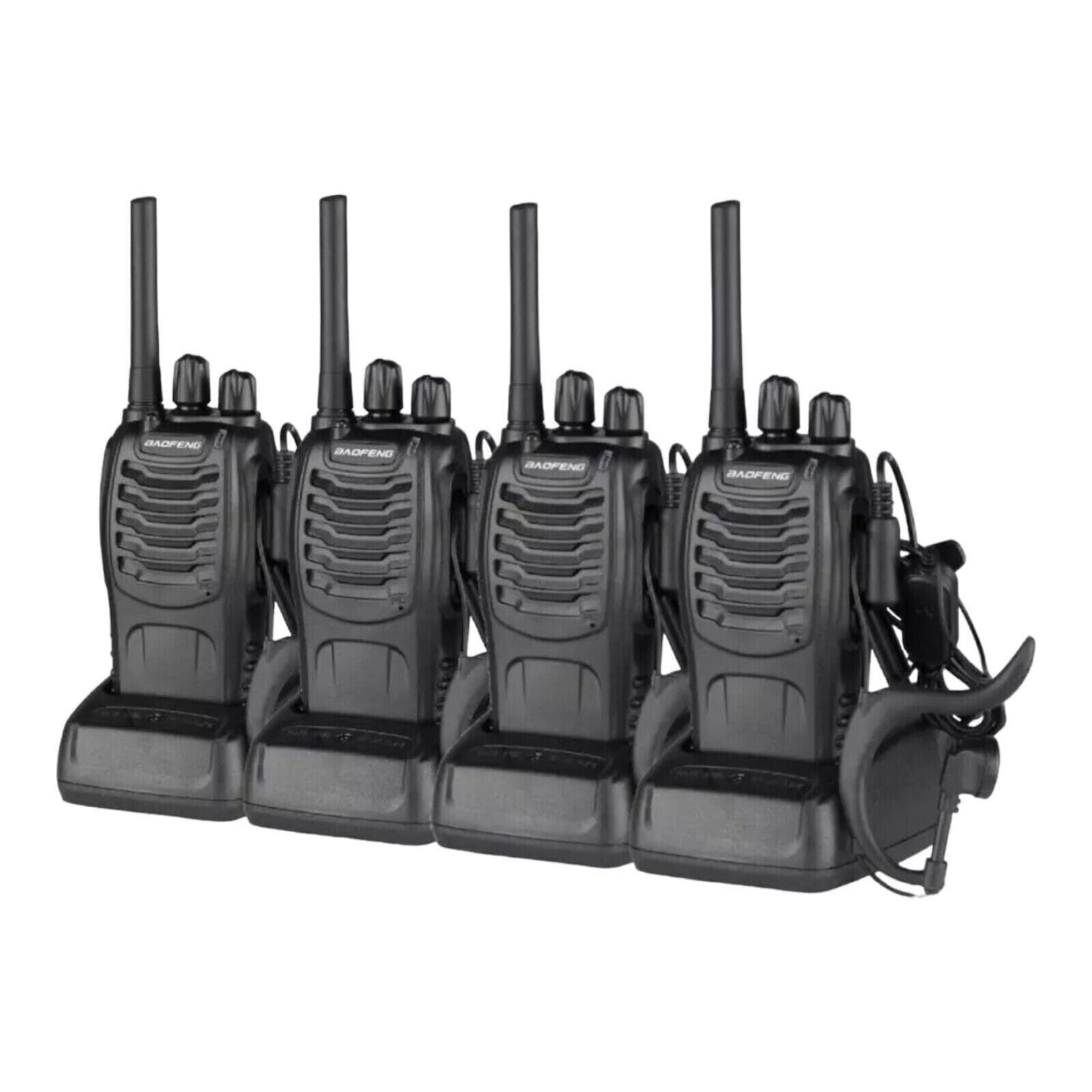

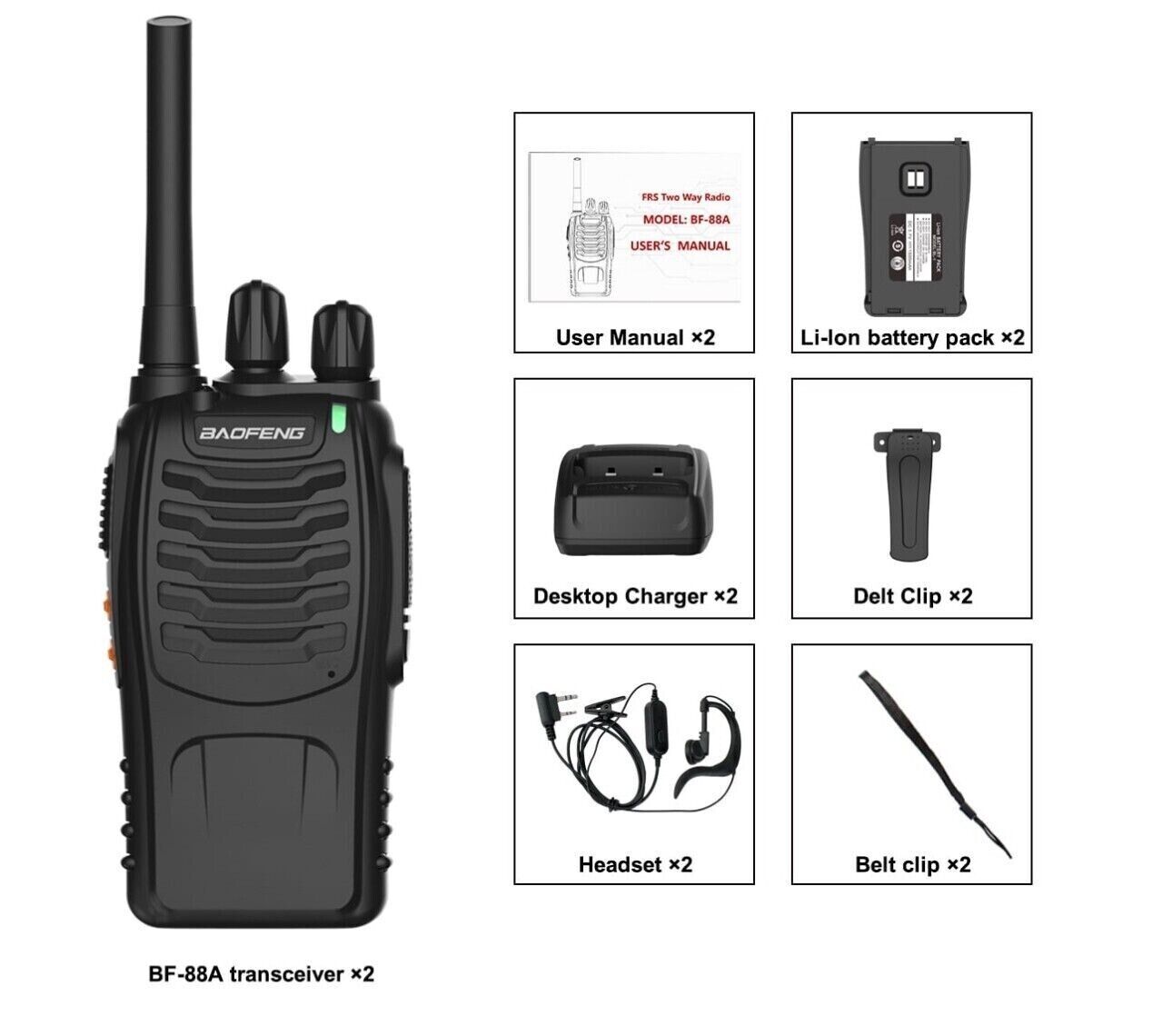

Package Contents (Each Pair):
4 x Baofeng BF-88A FRS Radio (OR BF-88E PMR Radio) with Fixed Antenna
4 x 3.7v 1500mAh Li-ion Battery
4 x Belt Clip.
4 x ENG Manual
4 x USBCharger (5V)
4 x Wrist Strap
4 x Free Antenna
4 x Free Earpiece
