Technical Specifications
Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
Antenna
Integrated Omni-Directional Antennas

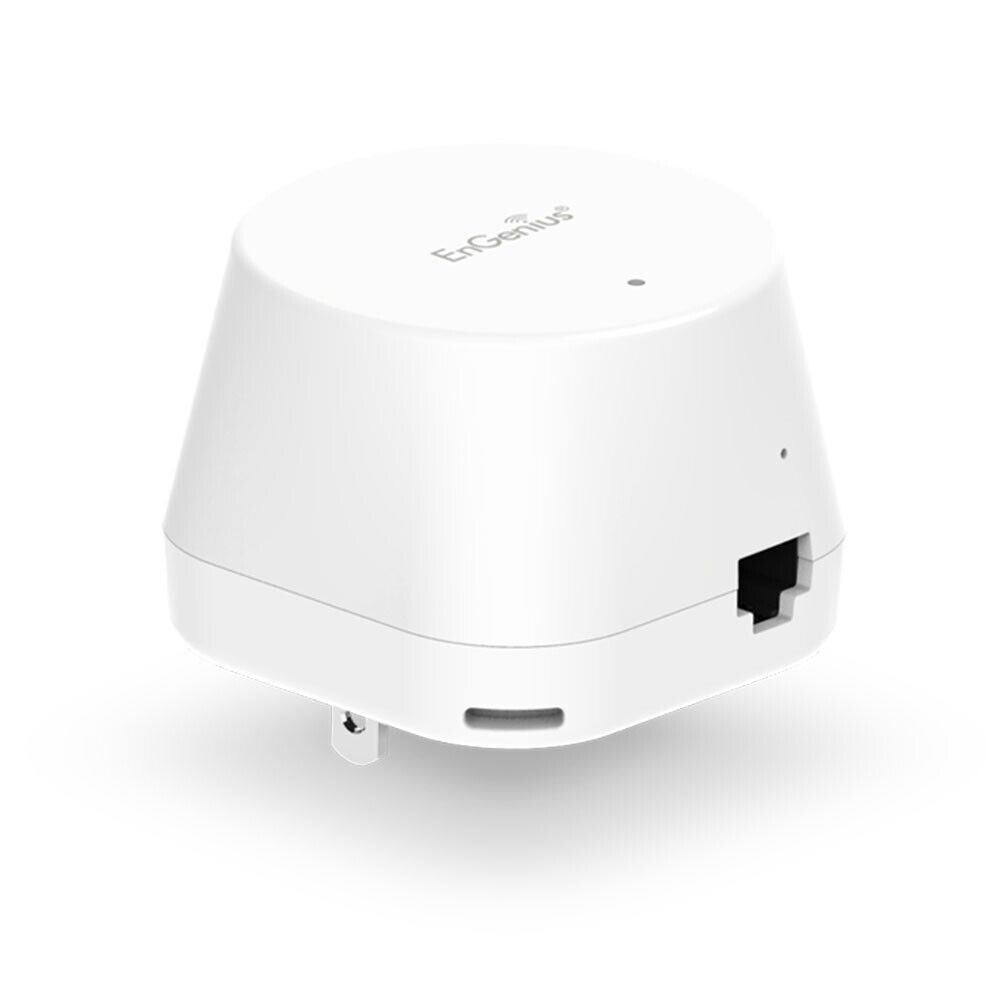

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Ports
LED Indicators
1 Color-Status LED
– White: Mesh & Internet Connection Status
– Blue: Bluetooth Connection Status
– Red: No Internet Connection or No Mesh Connection
– Orange: Mesh Connection Signal is Weak
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
Mesh Mode, AP Mode
Max. Nodes
8 (including the EnMesh Whole Home Wi-Fi System Router)
Wireless Initial Setup
EnMesh App Required
Frequency Radio
2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 19 dBm on 2.4 GHz
Up to 19 dBm on 5 GHz
Radio Chains/Spatial Stream
2 x 2:2 MU-MIMO
Max. Speeds
400 Mbps on 2.4 GHz
867 Mbps on 5 GHz
Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11a/b/g Supports High Throughput (HT)—20 MHz
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
System Features
Features – With EnMesh Whole Home Wi-Fi System
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
AirPrint® Server Support
Restore Factory Settings
Auto Reboot
Internet Speed Test
Mesh Connection Status
USB Features: SAMBA
UPnP Support
System Recovery
Manual/Auto Firmware Update
Band Steering
Port Forwarding
UID/DDNS Remote Control
Parental Controls
Wi-Fi Access Scheduler
Pause Internet
Guest Network per Band
Website & Keyword Filter
– URL
– IP
– Port
– ICMP
QoS (Quality of Service)
Wireless Security
WPA2 Enterprise (AES)
SSID Password
Network Services
DHCP
Static IP
PPPoE
Mobile App
EnMesh (setup, monitoring, parental control)
EnFile (private cloud storage)
Available for iPhone® & Android™
Environmental & Physical
Temperature Range
Operating: 32 ºF~104 ºF (0 ºC~40 ºC)
Storage: -4 ºF~140 ºF (-20 ºC~60 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Dimensions & Weight

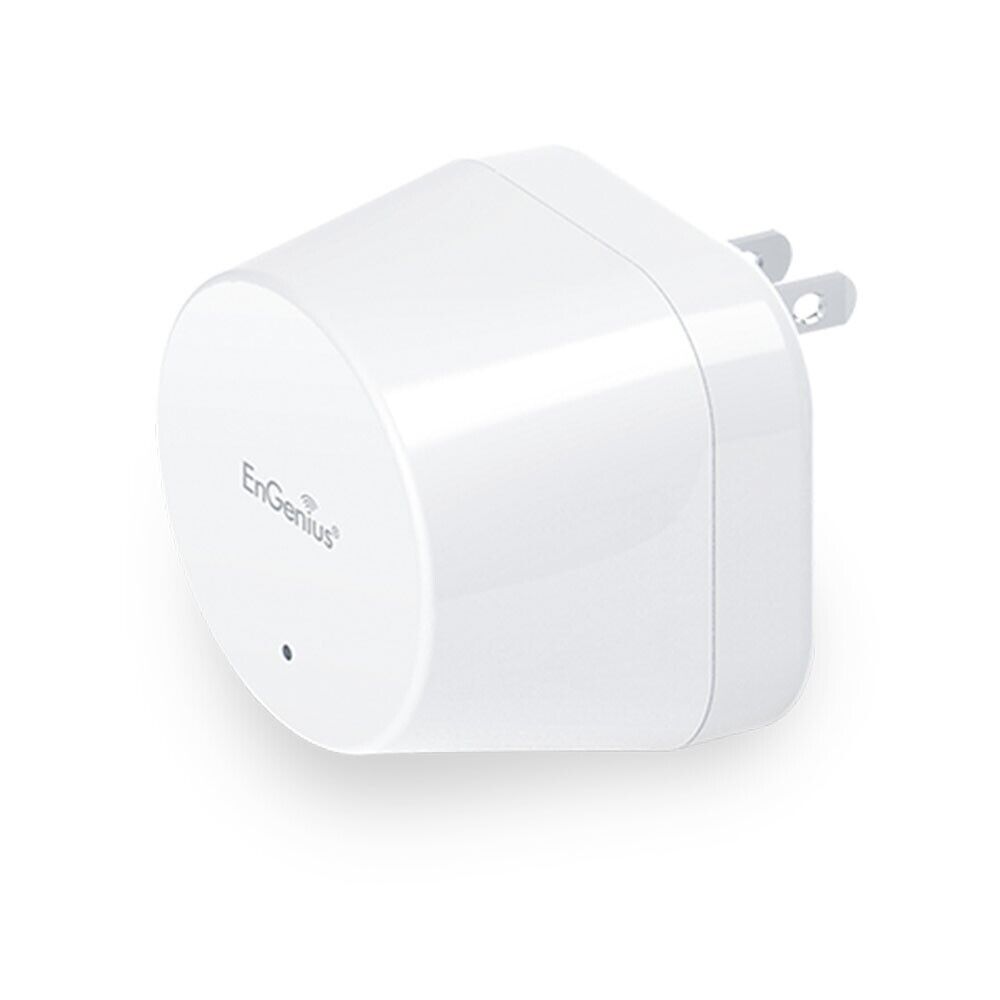

EMD1 Mesh Dot
Weight: .5 lbs (234 g)
Width: 5” (126.8 mm)
Length: 5” (126.8)
Height: 1.86” (47.2 mm)
Certifications
FCC
CE
