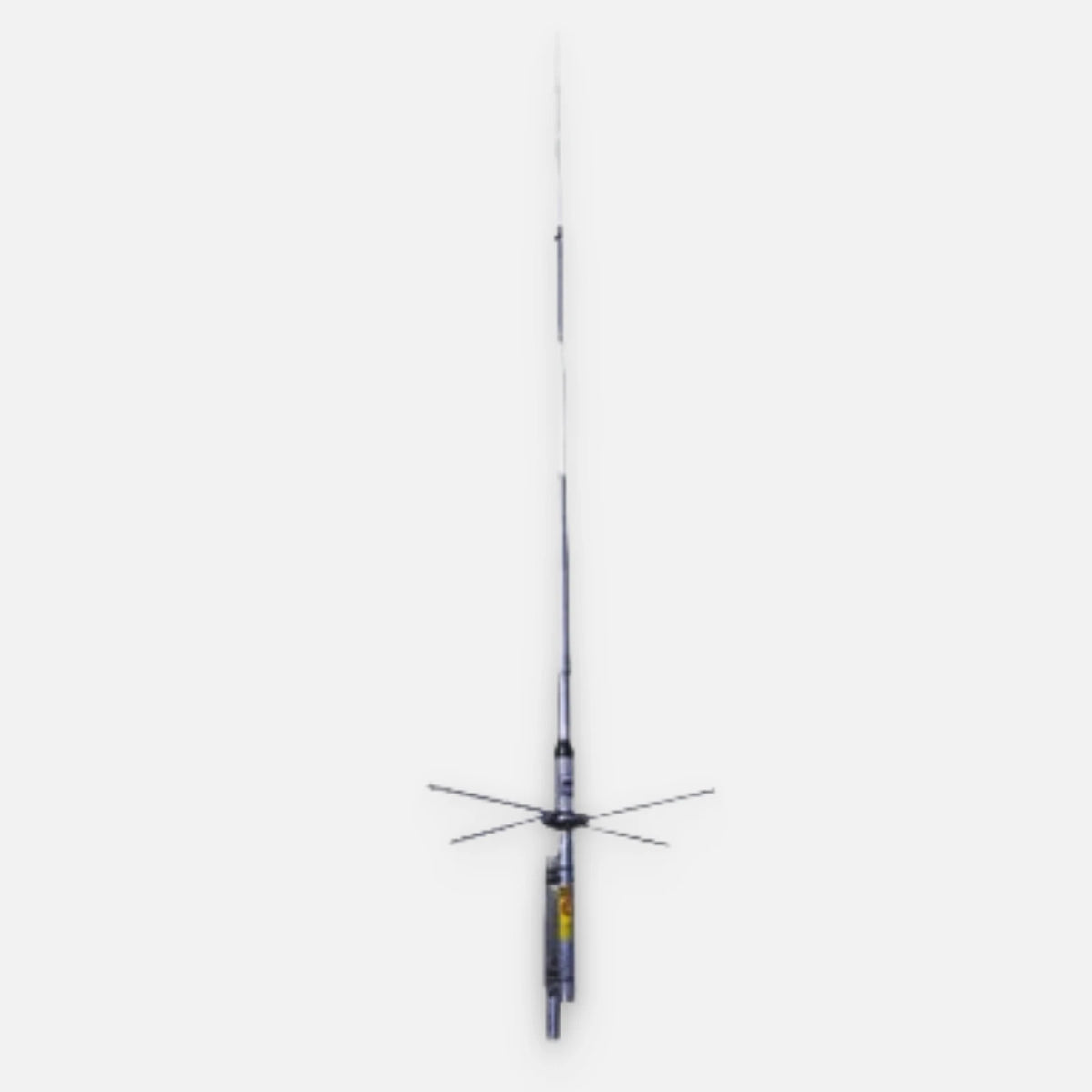

Hustler G7-150-2 VHF Base Antenna Frequency Range 154-161 MHz 7 dB gain

The Hustler G7-150-2 is a professional-grade VHF base station antenna purpose-built for commercial land-mobile and repeater installations operating in the 154–161 MHz band. Delivering 7 dB of gain across a 4 MHz bandwidth, it is engineered to extend reliable coverage from fixed sites such as dispatch centers, hilltop repeater shelters, and campus communication hubs. The antenna's high-resistance aluminum construction and 100 mph wind-load rating make it well suited to exposed rooftop and tower deployments where long-term mechanical integrity is non-negotiable. A direct ground path is incorporated into the design to bleed off static buildup, reducing the risk of interference and front-end damage to connected equipment. The N Female connector interface ensures a low-loss, weatherproof RF transition compatible with standard base-station coaxial feedlines. At 4.35 m in length and rated for 600 W of continuous power handling, the G7-150-2 is dimensioned and specified for full commercial-duty service.

Key features & benefits

• 7 dB Gain Over the 154–161 MHz Band — Focused gain within this narrow public-safety and commercial VHF segment maximizes effective radiated power and improves receive sensitivity without requiring additional amplification.
• 600 W Power Handling — The antenna's RF design and construction support up to 600 W of input power, accommodating high-power repeater transmitters and base stations at full legal output.
• 4 MHz Operational Bandwidth — A 4 MHz passband centered within the 154–161 MHz range allows the antenna to serve multi-channel systems or split-site repeater pairs without compromising pattern or VSWR at band edges.
• N Female Connector Interface — The N Female RF port provides a rugged, weatherproof connection that pairs directly with industry-standard N Male coaxial cable assemblies common in commercial base-station installations.
• 100 mph Wind-Load Rating — Structural integrity is maintained at sustained wind speeds up to 100 mph (161 km/h), making the antenna suitable for tower tops, rooftops, and other exposed sites in high-wind environments.
• High-Resistance Aluminum Construction — Aluminum build materials resist corrosion in outdoor environments, reducing long-term maintenance demands and preserving antenna performance over extended service life.
• Integrated Direct Ground Connection — A built-in ground path dissipates static charge accumulation, helping protect sensitive receiver and transmitter front-ends from electrostatic discharge events.
• Hustler G Series Platform — Membership in Hustler's established G Series commercial antenna family reflects a design lineage refined for professional communications infrastructure reliability.
