Model: H5

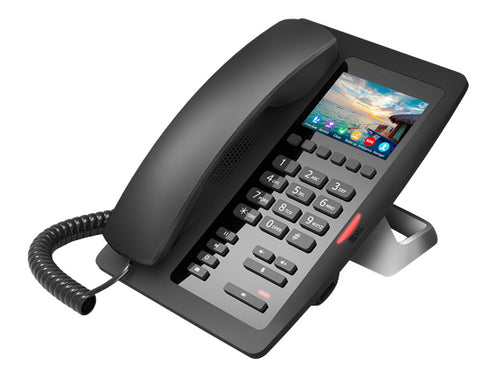

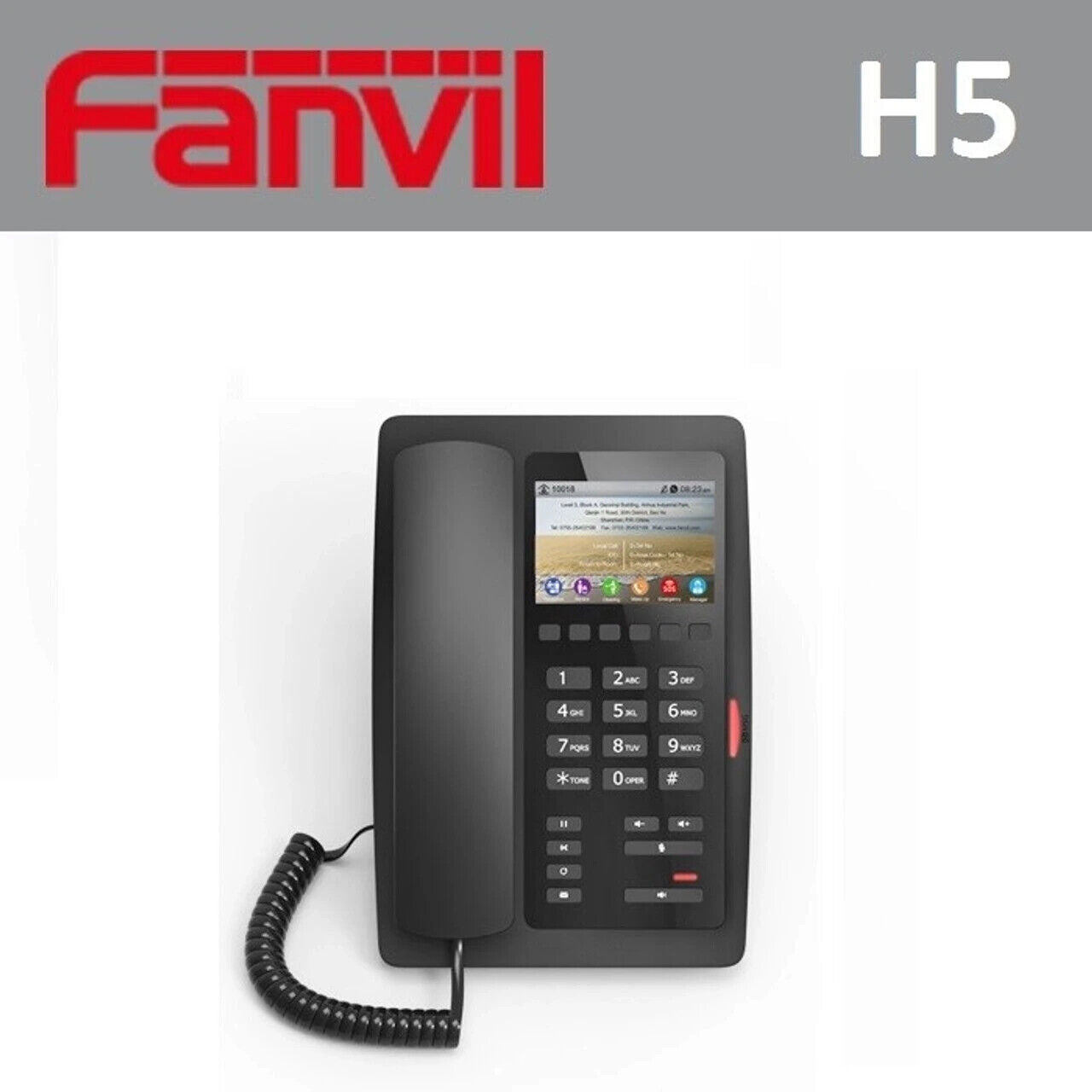

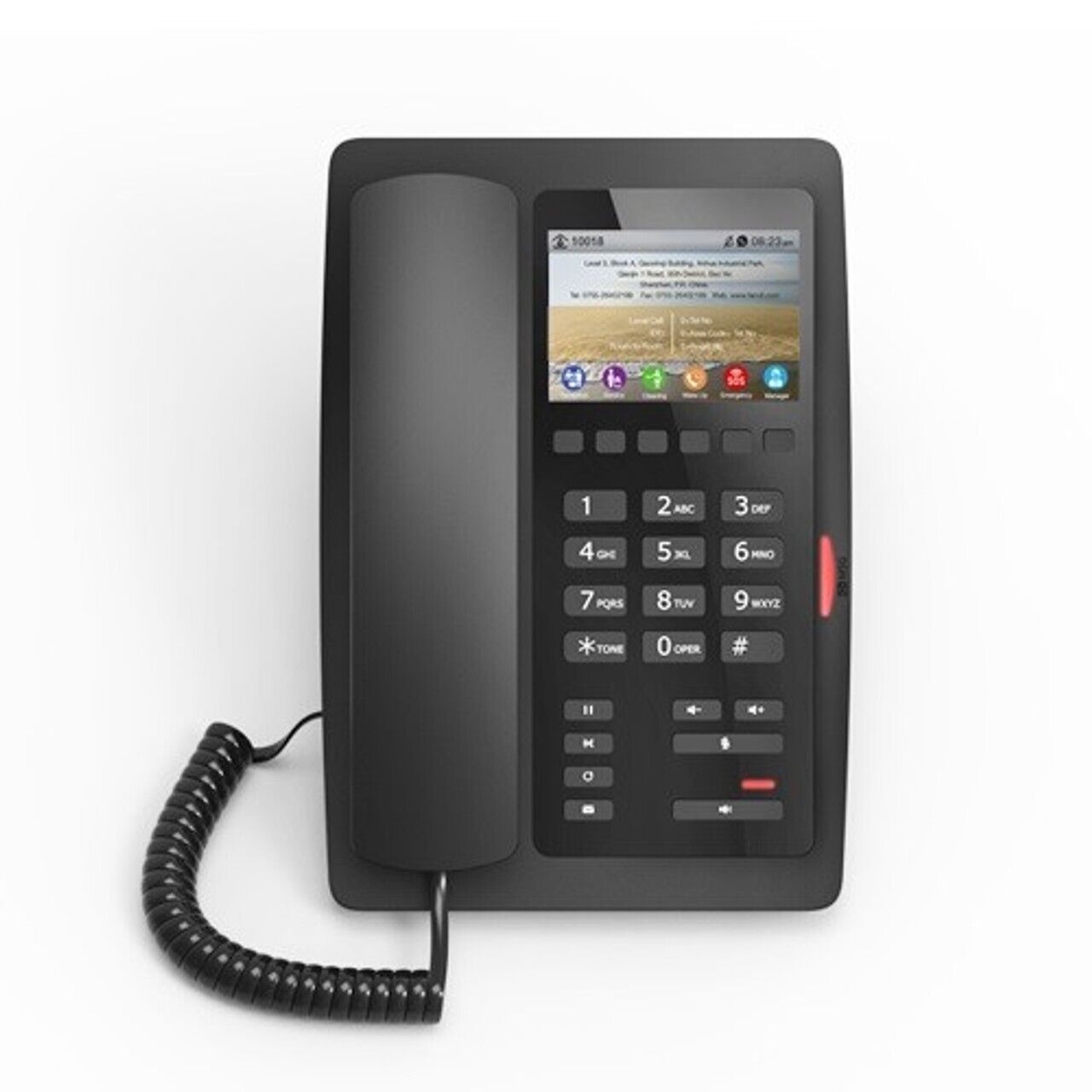

Fanvil H5 Elegant Hotel IP Phone with PoE
H5 is the IP phone designed for hotel. Its stylish, contemporary appearance, excellent voice quality, along with matching integrated communications platforms can become a new generation of hotel intelligent terminal equipment.
6 Soft keys programmable service hotline (housekeeping, ticketing, switchboard, food and beverage, ect.), the hotel special features (alarm clock, voice mail, etc.)
Several phones share one number from server, and each phone has its extension number to contact/ transfer/ conference others.
Generic:
- 1 SIP Line
- POE Enable
- Color screen (H5)
- Handset / Hands-free mode
- Intelligent DSS Keys (speed dial key)
- Desktop
- Optional External Power Supply
Call Features:
- Call out / Answer
- Mute / Unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Call Transfer (Attended/Unattended)
- Speed dial
- Intercom
- Redial
- Voice Message (on server)
- Hot Line
- Hot desking
Phone Features:
- Call logs with missed calls/ incoming calls/ outgoing calls. Max support 600 records(web)
- Dial without registration
- LED light
- Programmable DSS keys
- Custom LCD display text and logo (Only support for H5)
- Action URL / Active URI
- Web dial
Audio:
- Audio CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, G.722
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band - DTMF(RFC2833) / SIP INFO
Networking:
- 10/100Mbps Ethernet, dual bridged port for PC bypass
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- QoS
Protocols:
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- PPPoE
- 802.1x / L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Maintenance:
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR069
- Web Management Portal
- Web-based Packet-dump
