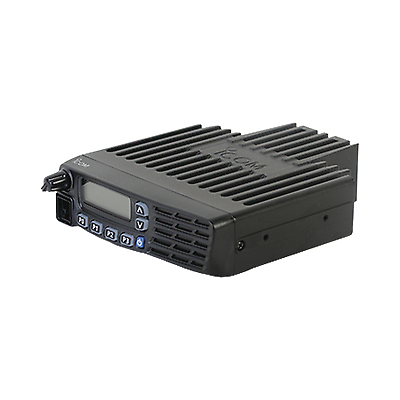

Everything you'd expect in a business radio... Plus Digital!
128 channels with 8 zones
Ample 128 channel capacity allows most companies plenty of room to grow. Up to 8 zones let you group together channels in logical fashion.
Built military rugged!
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810 F.
Compact hand microphone
Select from 5 levels of mic gain, for clearer transmission.
GPS receiver connection
With optional D-SUB 25-pin ACC cable OPC-2078, an external GPS receiver or PC can be connected.
*Note: No Digital Modulation “IN” using accessory cables
8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name received message, etc.
Large programmable buttons
For easy access to often-used functions, P0-P3 buttons are programmable to meet specific needs. Buttons and LCD display are backlit for night time operation.
Powerful, front-facing speaker
4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle's cabin. Digital modulation adds distinct clarity to received voices.
IDAS™ digital mode operation
The IC-F5123D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.
• PTT ID
• Individual/Talkgroup list (Max. 500)
• RAN (Radio Access Number)
• Status
• SDM (Short Data Message)
• Call alert
• Radio check (RX)
• Stun/kill/revive (RX)
• Remote monitor (RX)
• Emergency (No ACK)
• Digital voice scrambler
• GPS data (PC and software required to show received position data)
Built-in 2-Tone and 5-Tone (Analog mode)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.
MDC 1200 compatible (Analog mode)
The following MDC features are available with the built-in MDC signaling.
• PTT ID
• Radio check (RX)
• Emergency (No ACK)
• Stun/Revive (RX)
• 500 alias table (Max.)
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.
Lone worker function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
General:
• Frequency coverage: 136-174 MHz
• Number of channels: 128 (8 zones)
• Channel spacing: 6.25/15/30 kHz, 6.25/12.5/25 kHz
• PLL channel step: 2.5 kHz, 3.125 kHz (VHF)
• Power supply requirement: 13.6 Vdc
• Antenna impedance: 50Ω (SO-239)
• Operating temperature: -22º to 140º F (radio only)
• Current drain:
-Tx High (50W/45W):: 10 A
-25 W:: 5 A
-Rx Max. Audio:: 1.2 A
-Standby:: 300 mA
• Dimensions: 5.91 x 1.57 x 6.59” in. (50 W/45 W version), 5.91 x 1.57 x 4.63” in. (25 W version)
• Weight: 2.4 lb (50 W/ 45 W), 1.8 lb (25 W)
