EXPORT ONLY - It's required for you to provide a proof of export to complete this transaction. We can delivery to freight forwarders only with proof of export. This radio cannot be sold in the USA. 3 Year warranty!
SOUND PERFORMANCE, SMOOTH OPERATION
Emulating the distinguished NX-3000 and NX-5000 series, the NX-1700H/1800H mobile radio supports multiple protocols including NXDN™ and DMR as well as mixed digital & FM analog operation. As it’s packed with all the features essential for numerous enterprise and operation-critical applications. It’s also equipped with optimizable TX/RX audio quality, and a customizable front panel that prioritizes simple convenience: operational status is clear at a glance from the white backlit LCD display and 7-color LED indicator.
Features
- “One Radio” with Multi-protocol Support:
- Designed to operate under an NXDN or DMR digital, and FM analog protocols
- Upgradable Digital/Analog mode by software option (no firmware upgrade required)
- Easy visible, white backlit LCD display:
- Alphanumeric, 10-digit, 13-character frame (aliases and icons)
- 7-color LED indicator used to display various radio status
- Renowned KENWOOD Audio Quality: 6 W (max)loud audio and optimizable TX/RX audio profile: Audio Equalizer, Auto Gain
- Control (TX/RX) and Microphone type settings
- Max. 260 Channels per radio, 128 Zones per radio, and 250 Channels per zone.
- Various scan functions: Dual/Single Priority scan,
- Multi/Single Zone scan and more
- Orange-colored Emergency button & Customizable
- Emergency functions
- Lone Worker
- Remote Stun, Kill, Check
- Dual Priority Scan
- Max/Min Volume setting
- Voice Announcement
- Electronic Serial Number (ESN)
- Display Customization
- D-sub, 15-pin GPIO and audio connector
- GPS connectivity
- Horn Alert and Public Address
- Ignition Sense
- 3.5 mm audio jack for external speaker
- IP54 and MIL-STD 810C/D/E/F/G/H
Digital – DMR Mode
- TDMA – 2-slot 12.5 KHz Bandwidth
- Equivalent to 6.25 KHz Very Narrow
- Bandwidths
- DMR Tier II Conventional: Voice
- and Data services
- Site Roaming
- DMR Auto Slot Select
- Dual-slot Direct Mode
- Call Interruption
- Group / Individual Call
- Status / Short Data, Paging Call
- Remote Stun Kill, Monitor, Check & Control
- GPS Combination with additional module
- Digital / Analog Mixed Mode
- Digital bit Scrambler
- ARC4 Enhanced Encryption (Optional)
- Late Entry
- Over-the-Air Alias (OAA)
FM Modes – General
- FM Conventional
- FleetSync/II: PTT ID, Stun/Revive, Mute hold, Talk back, Selcall
- MDC-1200: PTT ID ANI / Radio Inhibit / Uninhibit, Radio Check, Emergency
- QT / DQT, DTMF, 2-Tone
- Built-in Voice Inversion Scrambler per channel
- Compander Function per channel
Programming requirements:
- Programming cable KPG-46XM
- Programming software KPG-D6K

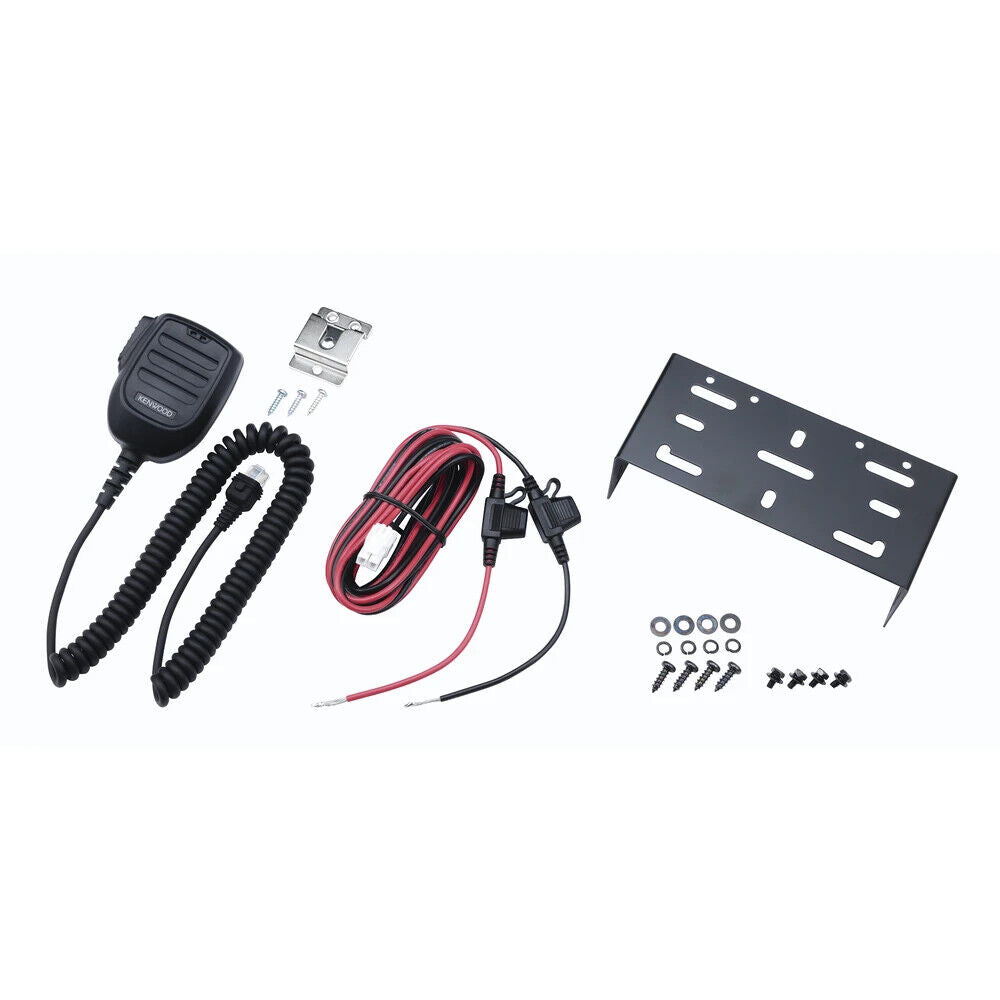

Supplied accessories:
- Mobile microphone.
- DC cable.
- Mounting bracket and installation accessories.
3 Years warranty for radio.
1 Year warranty for accessories.
