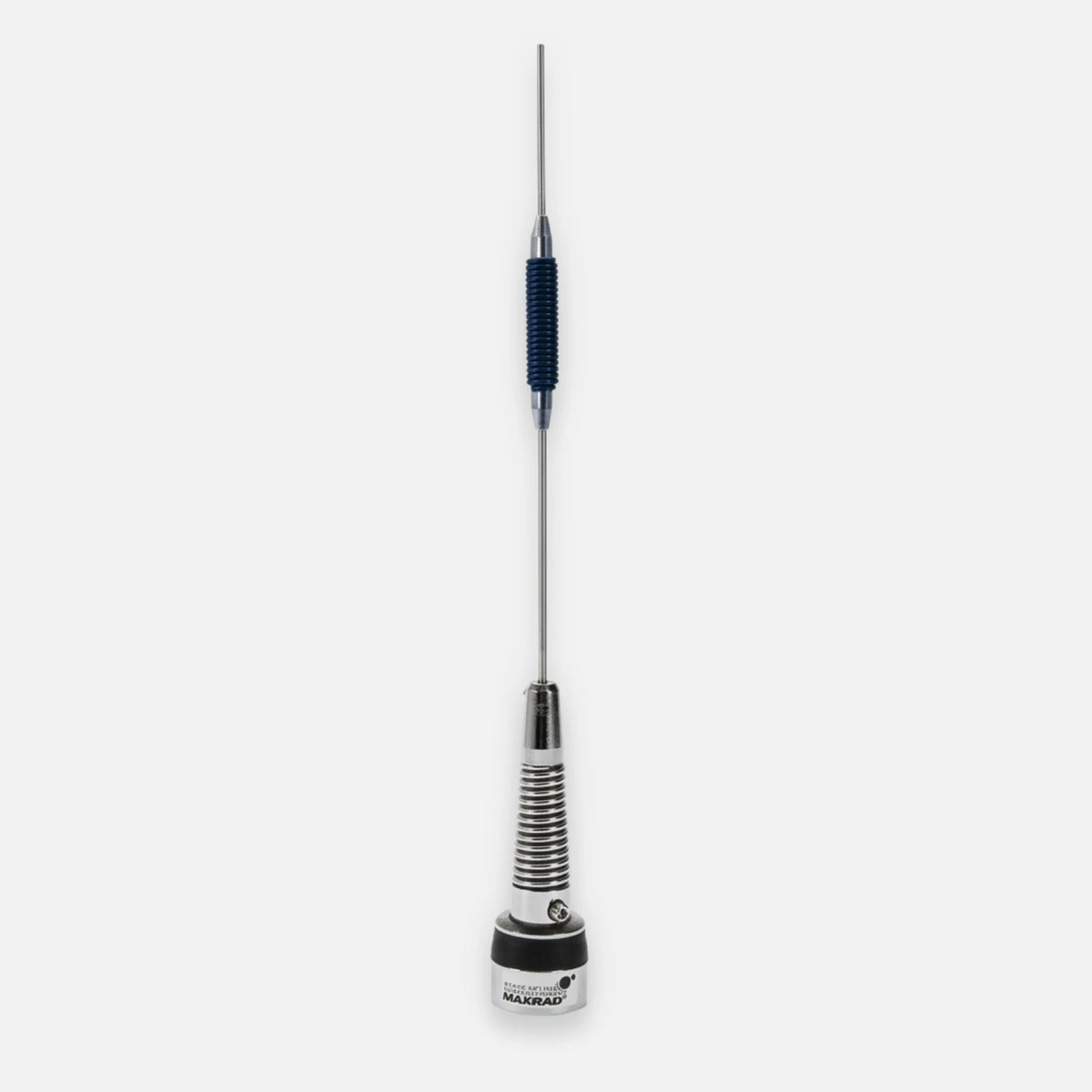

Pctel MWV-1322S VHF Mobile Antenna Frequency 132-174 MHz 2.4 dB 150 W 26 MHz

The PCTEL MWV-1322S is a wideband VHF mobile antenna engineered for professional vehicle-mounted radio operations across the 132–174 MHz frequency range. Built around a super-flexible whip construction with a reinforced brass button contact, the antenna is designed to absorb external shock and navigate limited vehicle clearance without compromising electrical performance. A 26 MHz bandwidth and 150-watt power handling capacity make it well-suited for demanding commercial, fleet, and public safety mobile radio installations. The titanium gray reflective finish and sleek drop-shape rod tip deliver a low-profile, professional appearance on any vehicle platform. The MWV-1322S ships with a spring assembly and is compatible with standard 3/4" NMO mounts, integrating cleanly into existing mobile radio infrastructure.

Key features & benefits

• 132–174 MHz Wideband Coverage — A 26 MHz bandwidth across the full VHF 132–174 MHz range reduces the need for frequency-specific antenna changes across diverse fleet or agency radio assignments.
• 2.4 dB Gain — Provides a measured gain advantage over a unity-gain reference, improving link margin for mobile radio communications in both urban and open terrain environments.
• 150-Watt Power Handling — Rated for up to 150 watts, the antenna accommodates high-power mobile transceivers without derating, supporting continuous-duty professional radio operations.
• Super-Flexible Whip Construction — The flexible whip design is engineered to withstand external shock and physical stress from low-clearance environments such as parking structures and drive-through facilities, reducing the risk of damage during daily vehicle operation.
• Reinforced Brass Button Contact — A brass button contact at the antenna base provides a corrosion-resistant, mechanically robust electrical connection to the NMO mount, supporting long-term reliability in outdoor vehicle installations.
• Spring Assembly Included — The included spring assembly adds an additional layer of mechanical protection, allowing the antenna to deflect under impact and return to its upright position without structural damage.
• Standard 3/4" NMO Mount Compatibility — Designed for use with widely available 3/4" NMO mounts, enabling straightforward integration into existing mobile radio installations without proprietary mounting hardware.
• Titanium Gray Reflective Finish — The drop-shape rod tip and titanium gray reflective finish deliver a professional, low-profile aesthetic appropriate for commercial fleet and public safety vehicles.
