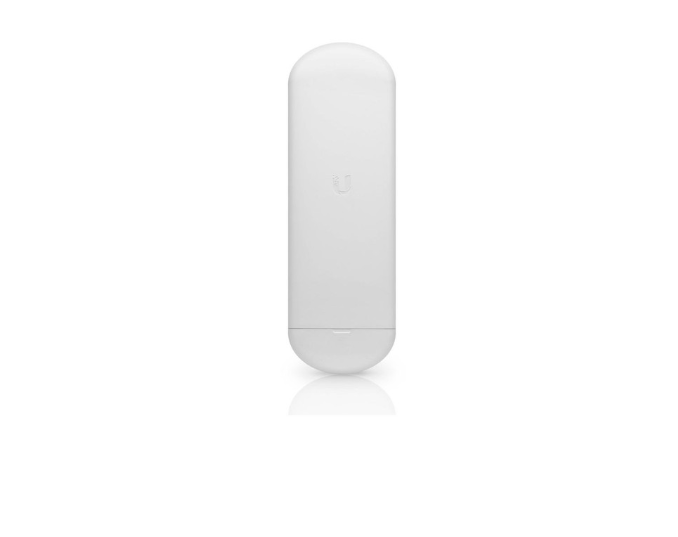

Ubiquiti UISP airMAX NanoStation AC NS-5AC 5 GHz Radio
The indoor/outdoor NanoStation AC 5GHz is a compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
Ubiquiti set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation M. The NanoStation AC take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
Sleek Industrial Design
The NanoStation AC represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS 8
airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Mechanical
- Dimensions: Without Mount: 257 x 84 x 41 mm (10.12 x 3.31 x 1.61")
- With Mount: 257 x 84 x 30 mm (10.12 x 3.31 x 1.18")
- Weight: 233 g (8.22 oz)
- Mounting: Pole and Wall Mounting Kits Included
Hardware
- Networking Interface: (2) 10/100/1000 Ethernet Ports
- Gain: 16 dBi
- LEDs: Power, ETH1, ETH2, (4) Signal Strength
- Max. Power Consumption: 9W
- Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
- Power Method: PoE or Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Supported Voltage Range: 24V ±10%
- ESD/EMP Protection: ±24 kV Contact/Air
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
Operating Frequency (MHz) USA:
- Worldwide: 5150-5875
Management Radio (MHz)
- Worldwide: 2412 - 2472
