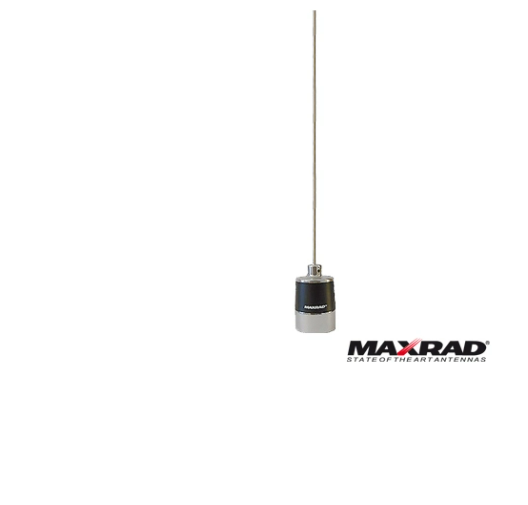

Designed for installations that lack a suitable ground plane, the MHB5802(S) antenna features a tapered loading coil jacket with chrome-plated fittings and an optional heavy-duty stainless steel spring. The base loaded matching network supports the collinear or trilinear rod sections above without the need for a ground plane.
Frequency range: 144-174 MHz-Gain: Unity (2.4 dB with the ground plane).
-Power: 200 W.
-Cable: N/A.
-Connector: N/A.
-Max length: 147 cm. (doesn't require ground plane).
-Requires 3/4" NMO58UNC mounting.
Features
- No ground plane required
- Rugged construction; optional heavy-duty shock spring
- Sleek, sturdy, sealed phasing coil design
- Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts
