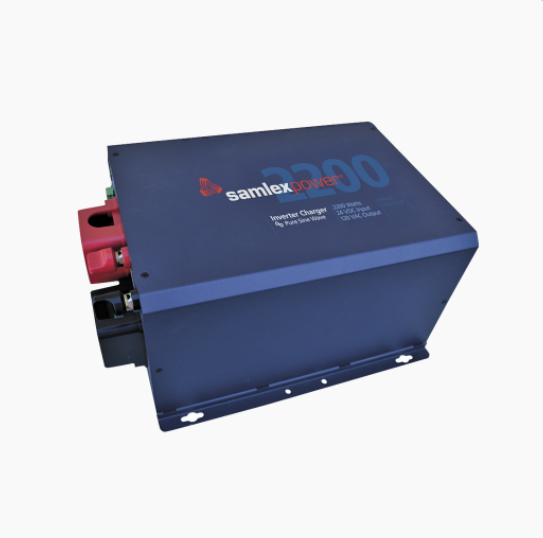

The EVO-2224 is a 2200 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50/60 Hz. It intelligently integrates a 70 Amp 4 stage Battery Charger and a 40 Amp Transfer Relay into an advanced and affordable off-grid power solution.
(EVO-RC remote control sold separately. See page for EVO-RC for product details.)
Specs:
- Capacity: 2200 Watt (pf=1)
- Input battery voltage: 24Vdc
- Nominal AC output: 120 Vac 50/60Hz selectable
- Pure sine wave
- AC Input from grid/generator
- Transfer relay
- Internal battery charger
- Battery charger external input (solar input)
- Certified UL STD. 1741, FCC
- Weight: 26Kg/57lb
- Dimensions: 12.79 (W) x 16.77 (D) x 8.15 (H)
