Industrial converter IDC3600 series.
- Input voltage: 30-60 Vdc.
- Output voltage: 24.9 Vdc.
- Current: 15 A.
- Input voltage: 30-60 Vdc.
- Output voltage: 24.9 Vdc.
- Current: 15 A.

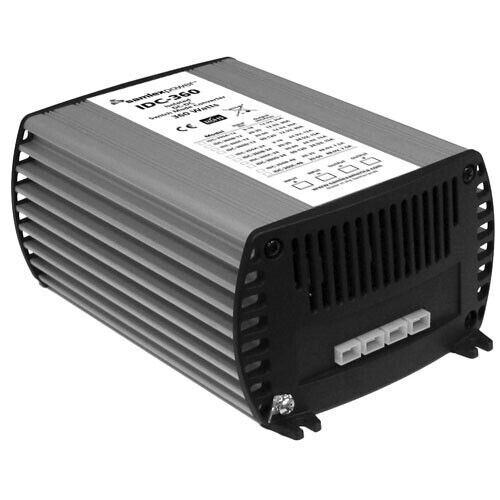

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 15 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing fold-back current limiting and protection against short circuit overheating overvoltage and reverse polarity connection. The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-360C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Design Features
Design Features
- Fully Isolated
- Short Circuit Protected
- Current Limited
- 2 Year Warranty
- CE Approved
- Product Specifications
- Product Manual
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 24 Volt lighting systems
- AM/FM sound systems
| Input | 30~60 VDC |
| Output | 24 VDC |
| Amps | 15 Amps |
| Weight | 3.2 (lbs) |
| Weight | 1.45 (kg) |
| Dimensions | 6.5 x 6.4 x 2.5 (in) |
| Dimensions | 16.5 x 16.3 x 6.4 (cm) |
| Safety | CE |
| Warranty | 2 Years (Canada/US) |
