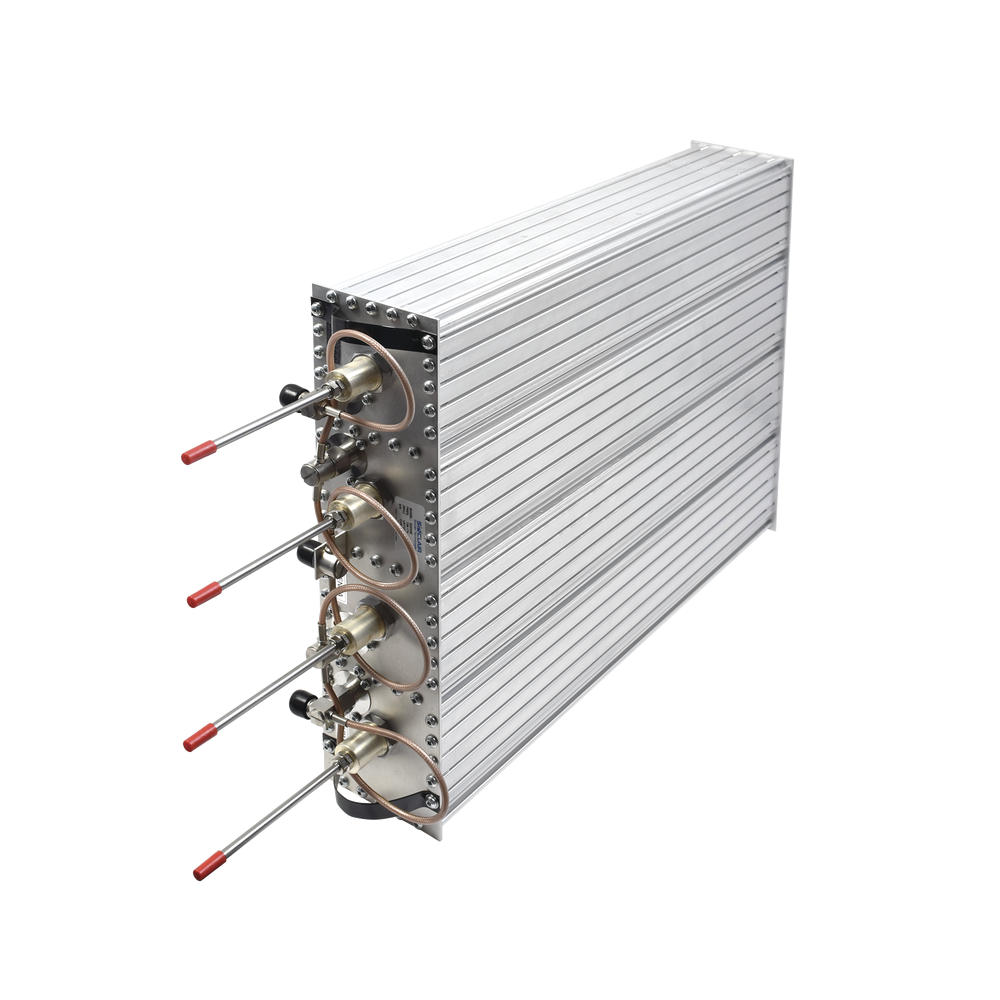

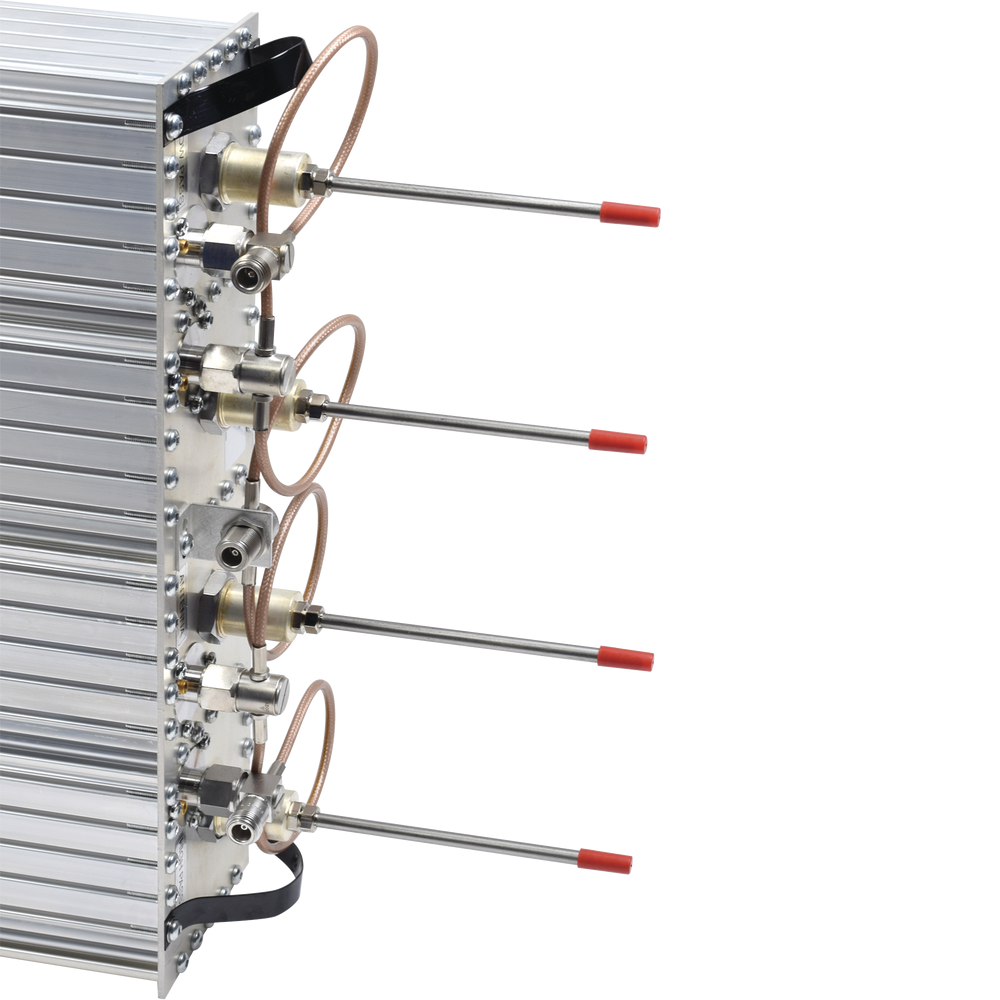

VHF, Band Pass / Band Reject Duplexer, 138-174 MHz, 350 Watt.
- 1/4 wave bandpass filter
- Reduces interference, intermodulation, and desensitization
- Eliminates spurious radiation
- Copper/silver inner conductors, silver-plated to eliminate corrosion and improve performance.
- Recommended for areas with a lot of interference.
- One year of warranty.
Specifications:
- Frequency range: 138-174 MHz.
- Minimum isolation: 70 dB.
- Impedance: 50 Ω.
- Max. Power: 350 W.
- Frequency separation: 0.5 MHz.
- Insertion Loss (Max.): 1.5 dB.
- Cavities: 4 (4" Diameter).
- Connectors: N female.
- Operation Temperature: -40 to 140ºF (-40 to 60ºC).
