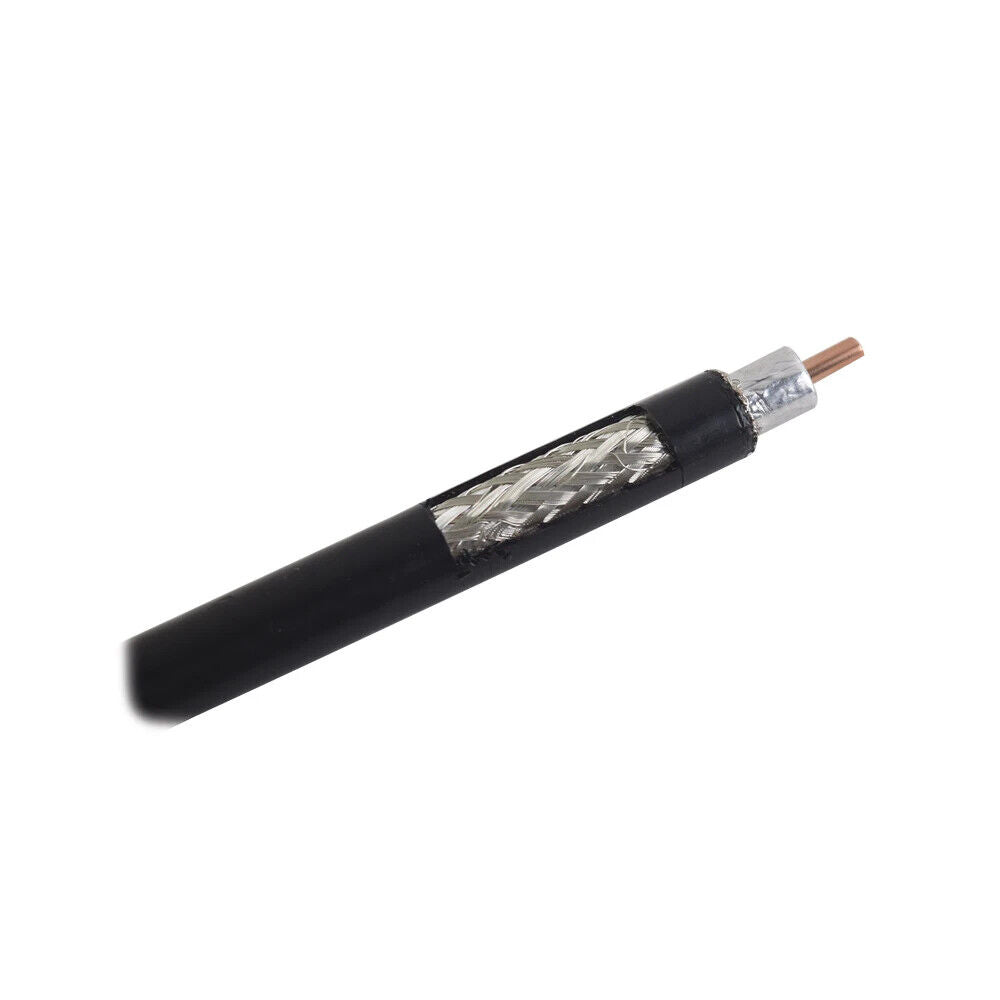

Flexible low loss communications cable ideal for jumper assemblies in wireless communications systems, short antenna feeders run, and any application requiring an easily routed, low loss RF cable.
- Application: Outdoor.
- Inner Conductor: Solid BCCAI 2.74 mm.
- Dielectric: Foam Polyethylene 7.24 mm.
- Outer Conductor: Aluminum Tape 7.39 mm.
- Overall Braid: Tinned Cooper 8.13 mm.
- Jacket: PE 10.29 mm.
- Attenuation at 150 MHz: 5 dB/100 m.
- Attenuation at 450 MHz: 8.9 dB/100 m.
- Impedance: 50 Ohm.
- The velocity of Propagation: 85%
- Weight: 0.10 kg/ m.
- Avg. Power KW: 0.83 at 450 MHz.
- Operating Temperature Range: -40 to 85 ºC
