𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

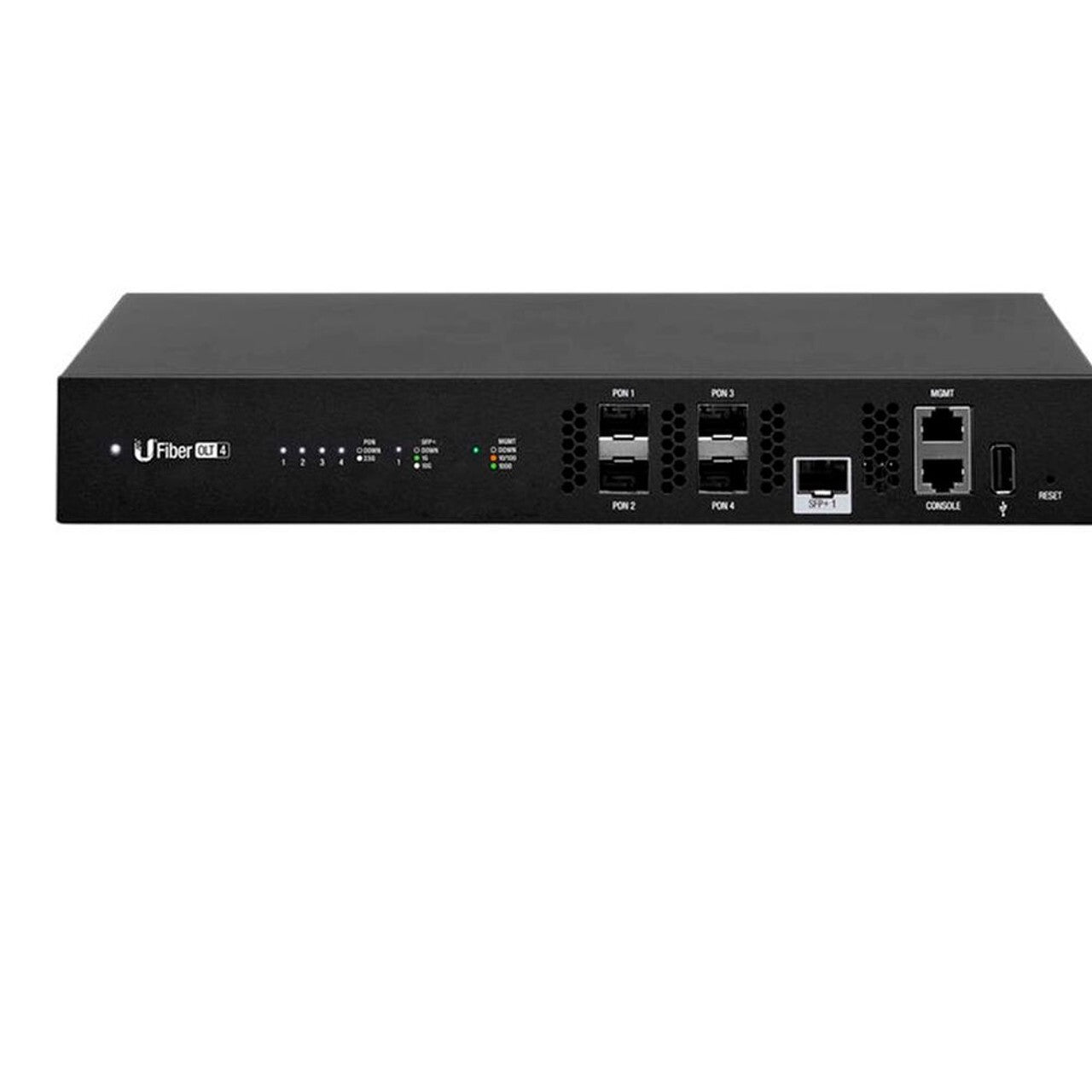

Ubiquiti UF-OLT-4 UFiber 4-Port GPON Optical Line Terminal
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti UF-OLT-4 is a 1U rackmount GPON Optical Line Terminal featuring four GPON SFP ports and one 1G/10G SFP+ uplink. Designed to support up to 512 ONUs/ONTs with centralized management via UNMS.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking / Fiber
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Model: UF-OLT-4
• 4 × GPON OLT SFP ports
• 1 × 1G/10G SFP+ uplink port
• Supports up to 512 registered ONUs/ONTs (128 per GPON port)
• 1U rackmount metal chassis (19" rack compatible)
• Out-of-band Ethernet management port
• RJ45 serial console port
• Centralized management via UNMS
• Advanced QoS with 8 priority queues per user port
• Operates as OLT Layer 2/3 Ethernet switch and GPON core
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
GPON Performance:
• Upstream: 2.488 Gbps (TX)
• Downstream: 1.244 Gbps (RX)
• Operating Wavelengths: 1490 nm TX / 1310 nm RX
• Optical Power (Class B+ TX): 1.5 dBm to 5 dBm
• RX Range: -28 dBm to -8 dBm
• Physical Reach: 20 km
• Logical Reach: 60 km
• Max Differential Fiber Distance: 20 km (B+) / 40 km (C+)
Hardware:
• Processor: MIPS 1004kc, 880 MHz Dual Core
• Memory: 12 MB DDR3, 512 MB NAND
• Max Power Consumption: 35W (excluding SFP modules)
• Power Supply: Internal AC/DC 56W
• Power Method: 100–240VAC, 50/60 Hz
Interfaces:
• (4) GPON OLT SFP ports
• (1) 1G/10G SFP+ uplink
• (1) Ethernet out-of-band management
• (1) RJ45 serial console
Environmental:
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Operating Humidity: 10%–90% Noncondensing
• Certifications: CE, FCC, IC
Physical:
• Dimensions: 299.8 × 258.95 × 42.55 mm
• Weight (with mount brackets): 2.13 kg
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
