𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

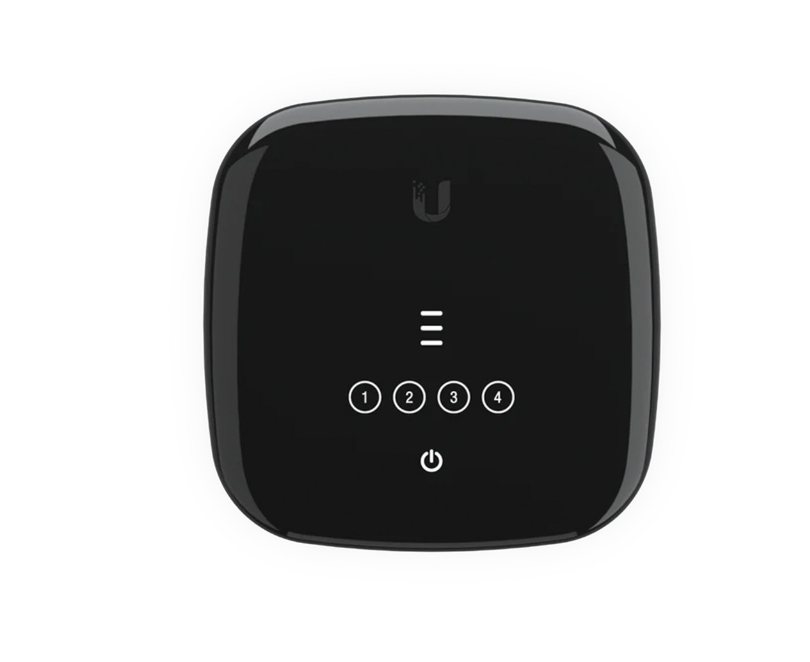

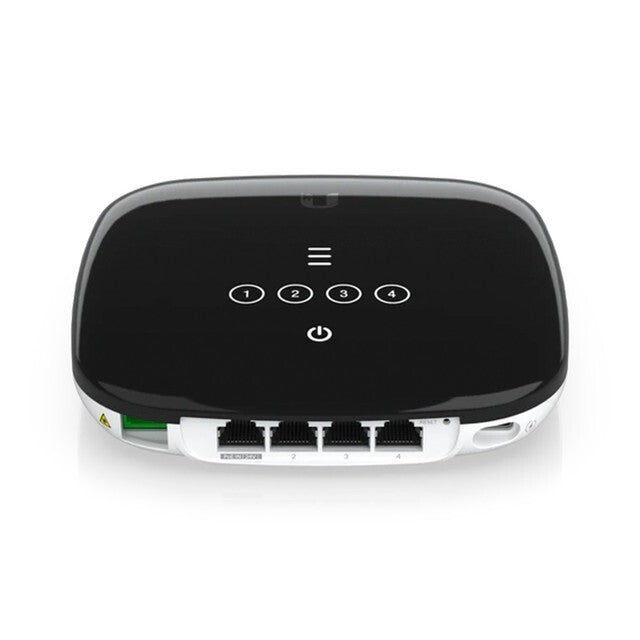

Ubiquiti UF-WiFi6 UISP Fiber WiFi 6 GPON CPE – SC/APC, 2.4 Gbps
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti UF-WiFi6 is a GPON customer-premises equipment (CPE) device with integrated dual-band WiFi 6. It supports up to 2.488 Gbps downstream and 1.244 Gbps upstream over GPON, with an SC/APC WAN port and four GbE LAN ports for fiber access deployments.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• GPON ONU/ONT with integrated WiFi 6
• Physical fiber reach up to 20 km
• ITU-G.984 GPON WAN interface with SC/APC connector
• Supports 2.488 Gbps downstream / 1.244 Gbps upstream line rates
• Dual-band 802.11ax (2.4 GHz / 5 GHz)
• Aggregate WiFi throughput rate up to 1.5 Gbps
• (4) Gigabit RJ45 LAN ports
• 24V passive PoE input and USB-C power support
• VLAN support and GEM port encryption
• Remote reset, reboot, and firmware upgrade capability
• UISP Mobile App support
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

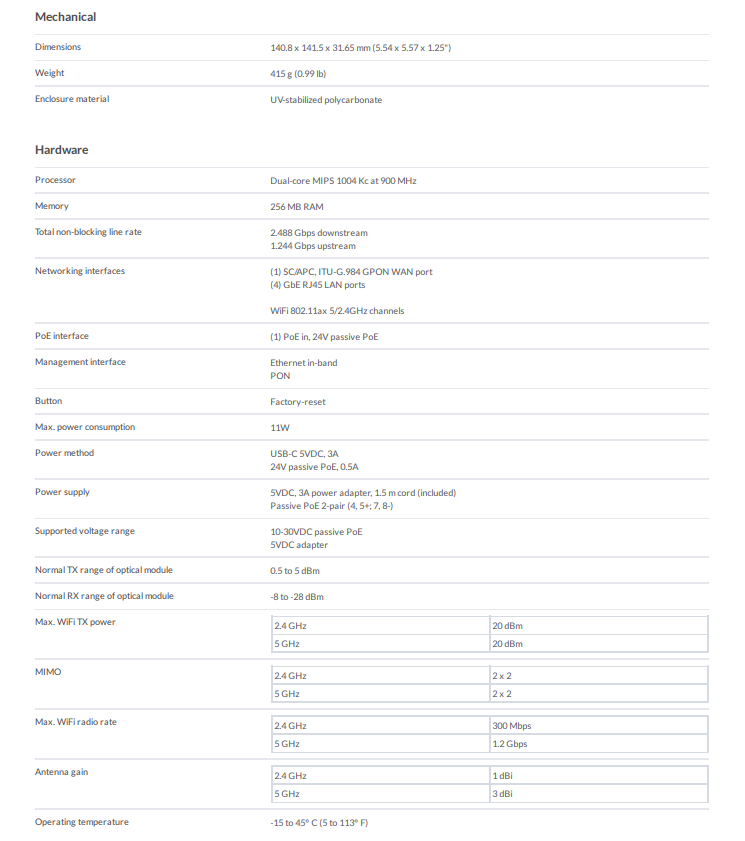

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: UF-WiFi6
• Dimensions: 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25 in)
• Weight: 415 g (0.99 lb)
• Enclosure: UV-stabilized polycarbonate
Hardware
• Processor: Dual-core MIPS 1004 Kc @ 900 MHz
• Memory: 256 MB RAM
• Networking Interfaces:
– (1) SC/APC GPON WAN (ITU-G.984)
– (4) GbE RJ45 LAN
• WiFi Standards: 802.11 b/g/n/ac/ax (WiFi 4/5/6)
• MIMO: 2 x 2 (2.4 GHz), 2 x 2 (5 GHz)
• Max WiFi Radio Rate:
– 2.4 GHz: 300 Mbps
– 5 GHz: 1.2 Gbps
• Max WiFi TX Power:
– 2.4 GHz: 20 dBm
– 5 GHz: 20 dBm
• Antenna Gain:
– 2.4 GHz: 1 dBi
– 5 GHz: 3 dBi

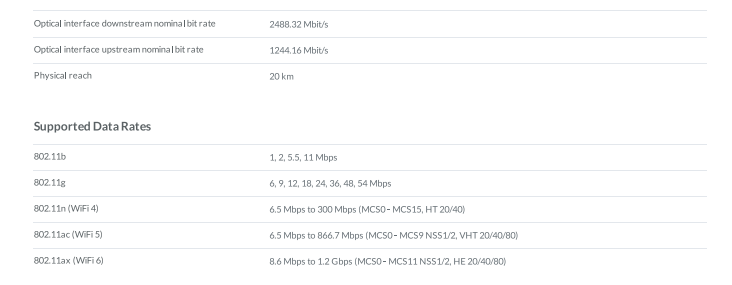

• Total Non-Blocking Line Rate:
– 2.488 Gbps downstream
– 1.244 Gbps upstream
• Operating Wavelength: 1310 nm TX / 1490 nm RX
• Optical TX Range: 0.5 to 5 dBm
• Optical RX Range: -8 to -28 dBm
• Physical Reach: Up to 20 km
• Max Power Consumption: 11W
• Power Methods:
– USB-C 5VDC, 3A (adapter included)
– 24V passive PoE (0.5A)
• Supported Voltage Range: 10 to 30VDC passive PoE
• Operating Temperature: -15 to 45°C (5 to 113°F)
• Operating Humidity: 10 to 90% noncondensing
• Certifications: FCC, IC, CE

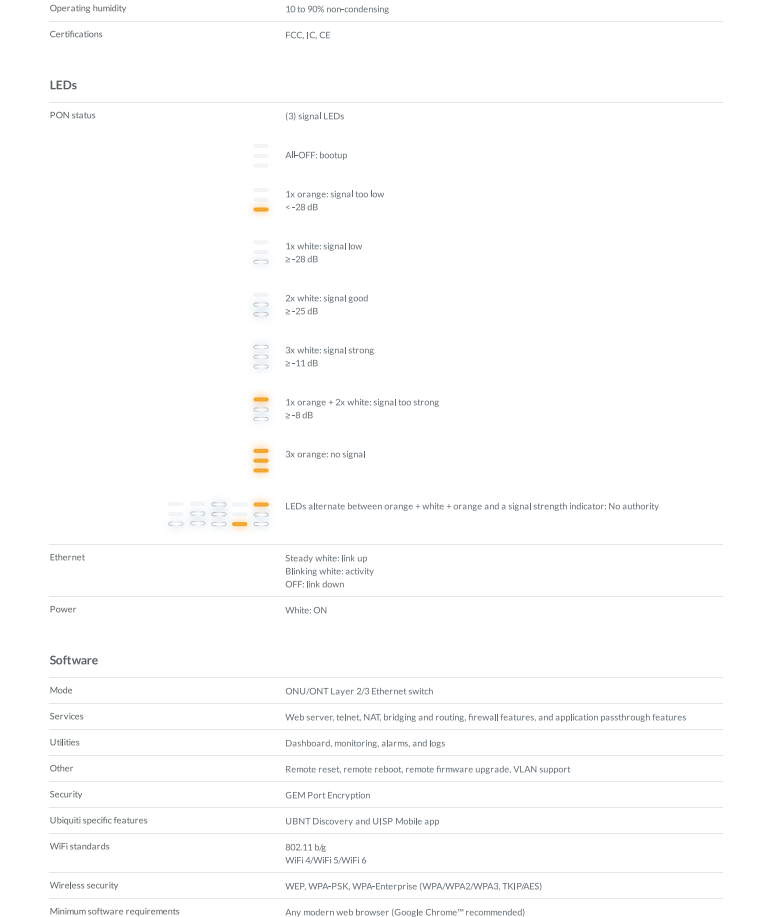

Software
• Mode: ONU/ONT Layer 2/3 Ethernet switch
• Services: Web server, telnet, NAT, bridging, routing, firewall, application passthrough
• Utilities: Dashboard, monitoring, alarms, logs
• Security: GEM Port Encryption
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• GPON fiber-to-the-premises (FTTP) deployments
• Residential or business fiber subscriber installations
• Dual-band WiFi 6 indoor connectivity with fiber backhaul
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
