13.8 Volt @ 35.0 Amp Adjustable Power Supply with V and A Indicators, Anderson PowerPole Plugs, 220V AC Input
The Astron VS series are continuous duty power supplies designed to withstand the rigors of heavy-duty or industrial use
Attention: This device requires 220 VAC input. International use only. Not suitable for USA / North America

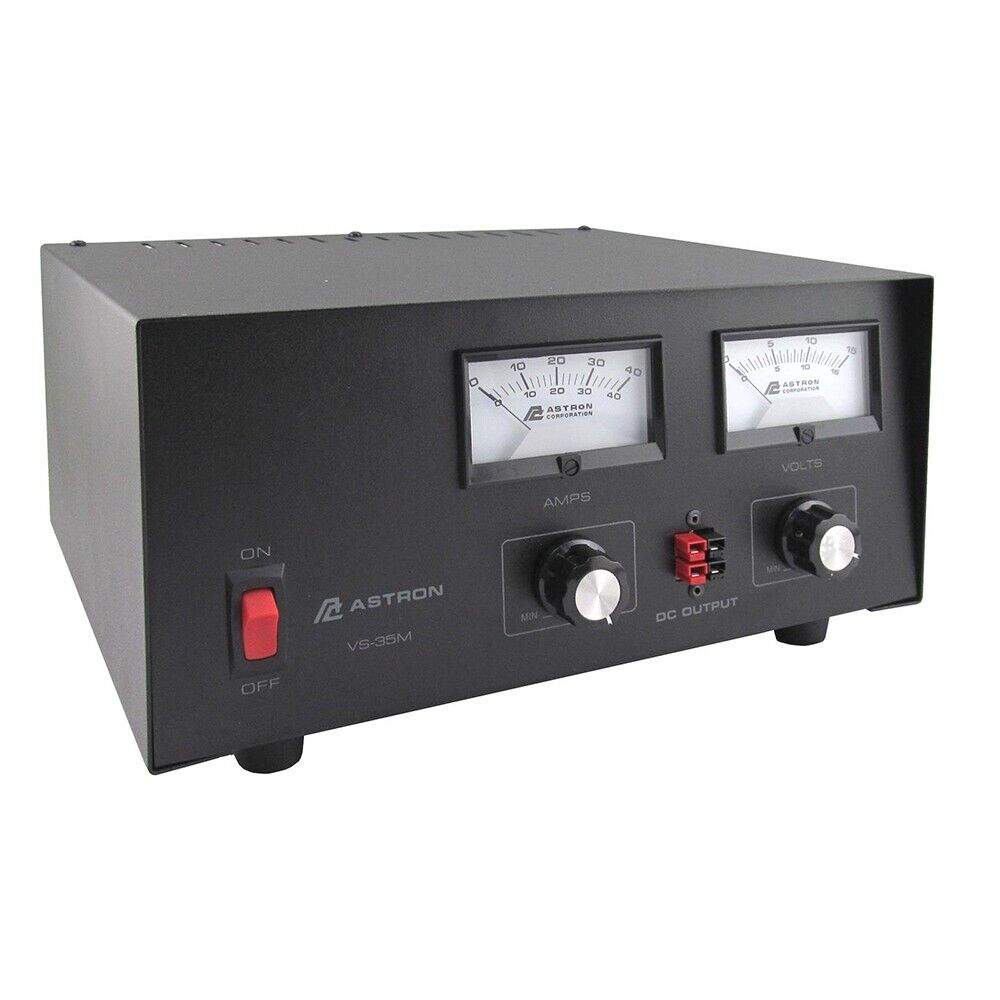

Astron VS-35M-220V Linear Variable Power Supply
International Use Only! Not suitable for domestic USA applications| Brand: | Astron Corporation |
| Our Model Number: | VS-35M-220V |
| Manufacturer's Part Number: | VS-35M-220V |
| Description: | Astron 13.8 Volt / 35 Amp Power Supply |
| Category: | Power Supplies |
• Solid state electronically regulated

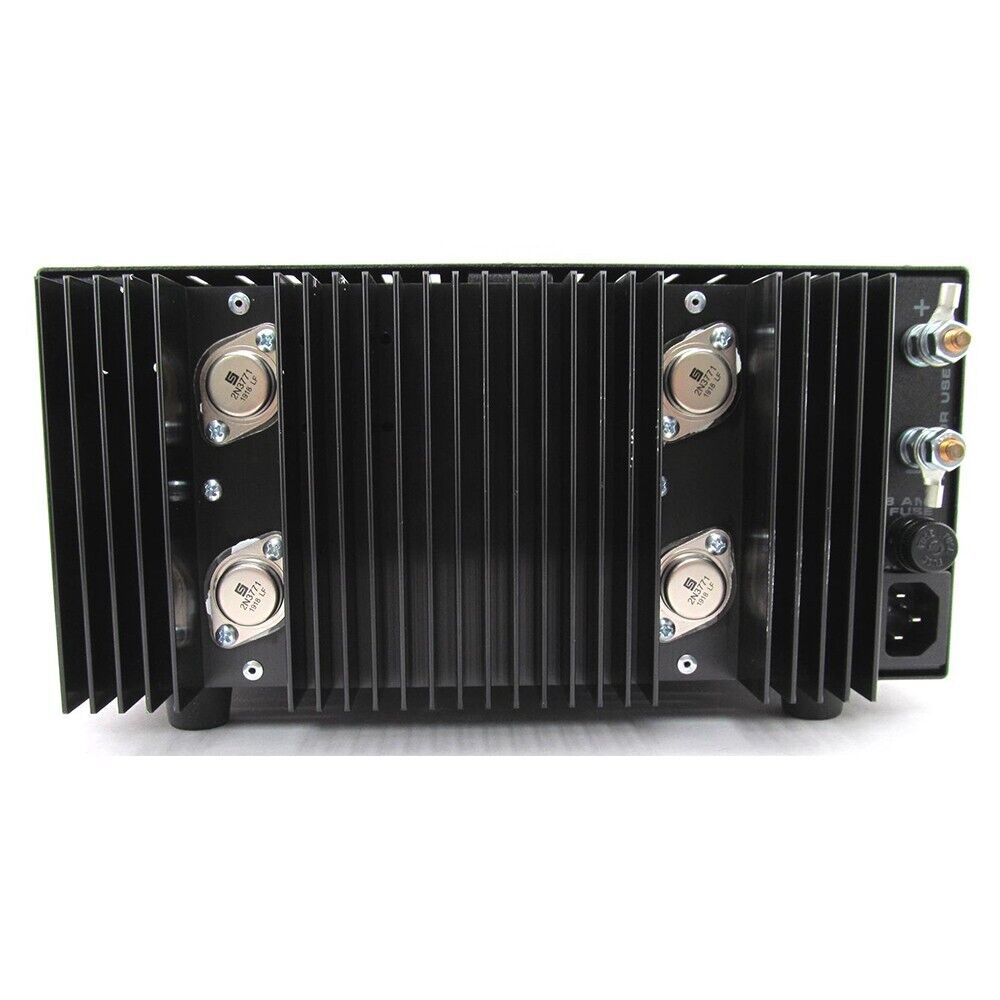

• Heavy duty heat sink
• Chassis mount fuse
• Fold-back current limiting protects power supply from excessive current & continuous shorted output
• Input voltage: 220 VAC
• Crowbar over voltage protection on all models
• Output voltage: 13.8 VDC ± 0.05 Volts
• Three conductor power cord, with US-style 3-prong AC power plug (except RS-3A)
• All metered units feature backlit meters
• Maintain regulation & low ripple at low line input
• Ripple less than 5mV peak to peak (full load & voltage low line)
• One year warranty
• Made in U.S.A.
Technical Parameters and Specifications
| Power Supply Type: | Linear, Regulated, Variable |
| Battery Backup: | No |
| Power Supply Voltage Adjustment Control: | Front panel |
| Power Supply Metering: | Separate Volt and Amp Meters |

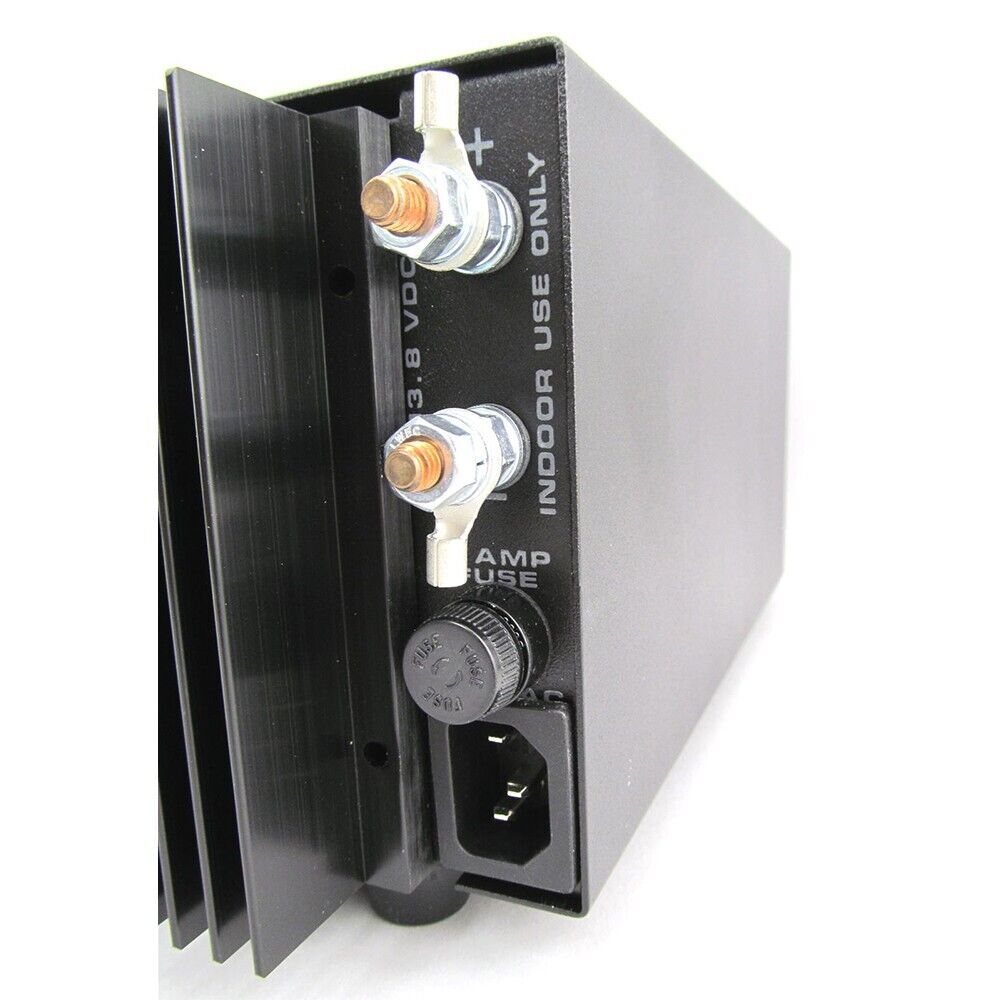

| Power Supply High Current Terminal Location: | Rear panel |
| Power Supply Low Current Terminal Location: | None |
| Power Supply Lighter Socket: | No |
| Power Supply Cooling Method: | Heat sink |
| Power Supply Input Voltage: | 220 VAC |
| Power Supply Output Voltage, Volts: | 13.8 ± 0.05 VDC |
| Power Supply Continuous Output, Amps: | 25.0A @ 13.8 VDC |
| Power Supply Peak / Intermittent Output, Amps: | 35.0A @ 13.8 VDC |
| Power Supply Voltage Adjustment Range: | 2.0-15.0 VDC |
| Power Supply Current Limit Adjustment Range: | Current limit adjustable from 1.5 amps to Full Load |
| Power Supply Shipping Weight: | 29.00 lbs (13.107 kg) |
| Power Supply Dimensions: | 11.0 x 5.0 x 11.0” (27.9 x 12.7 x 27.9 cm) |
