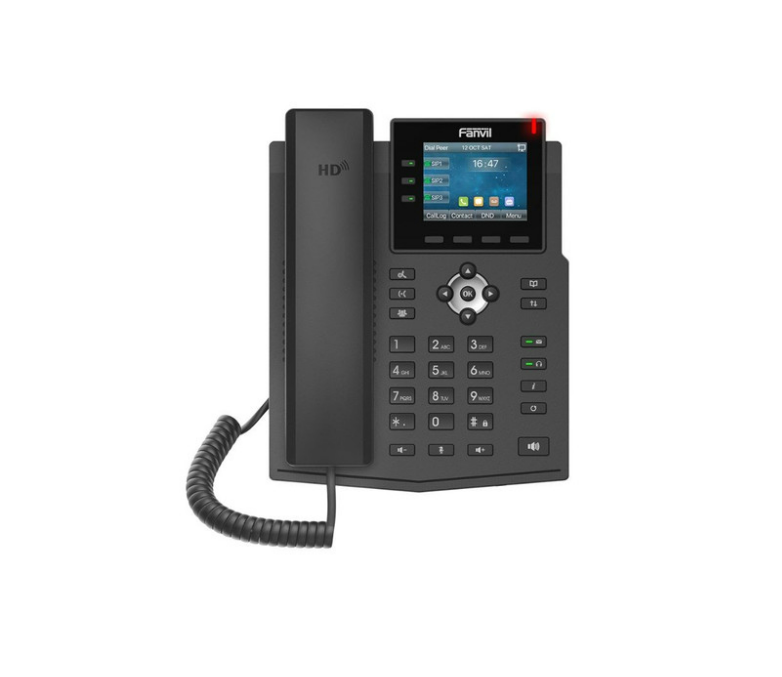

X3U Pro is an entry-level Gigabit color screen IP Phone. It use 2.8-inch color screen, and support HD voice, gigabit ethernet, 6 SIP accounts, PoE, 3 line keys corresponding to the screen and 6-party conference etc rich functions. It provides the high-quality and convenient experience for users at an affordable price.
Features
- 6 SIP lines, SIP hotspot
- 1000 local phonebook, caller ID, call hold, call transfer √ 3 Line keys on the main display
- 2.8” main color display
- HD audio on speakerphone and handset
- Opus voice: can handle a variety of audio applications, including IP voice, Multiparty conference, etc. √ Support 6-party local conference √ Support EHS wireless headset
- Dual Gigabit ports, integrated PoE
- Stand with 2 adjustable angles of 45 and 50 degrees √ Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

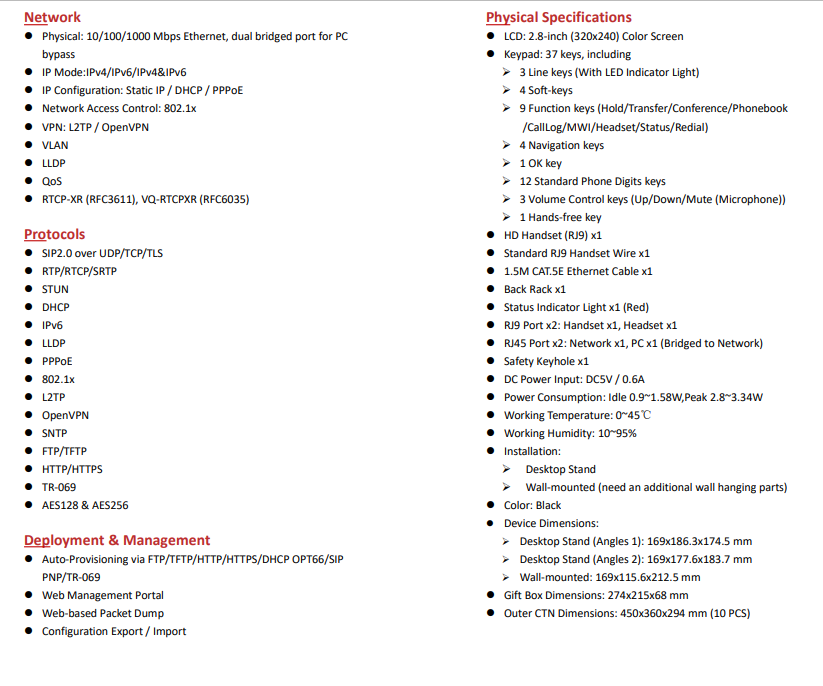

Technical Description
- LCD: 2.8-inch (320x240) Color Screen
- Keypad: 37 keys, including
- 3 Line keys (With LED Indicator Light)
- 4 Soft-keys
- 9 Function keys (Hold/Transfer/Conference/Phonebook/CallLog/MWI/Headset/Status/Redial) 4 Navigation keys
- 1 OK key
- 12 Standard Phone Digits keys
- 3 Volume Control keys (Up/Down/Mute (Microphone))
- 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT.5E Ethernet Cable x1
- Back Rack x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- Safety Keyhole x1
- DC Power Input: DC5V / 0.6A
- Power Consumption: Idle 0.9~1.58W,Peak 2.8~3.34W
- Working Temperature: 0~45?? Working Humidity: 10~95%
- Installation:
- Desktop Stand
- Wall-mounted (need an additional wall hanging parts)
- Color: Black
- Device Dimensions:
- Desktop Stand (Angles 1): 169x186.3x174.5 mm
- Desktop Stand (Angles 2): 169x177.6x183.7 mm
- Wall-mounted: 169x115.6x212.5 mm
MORE INFORMATION
MFRPartNum:
X3U-Pro
