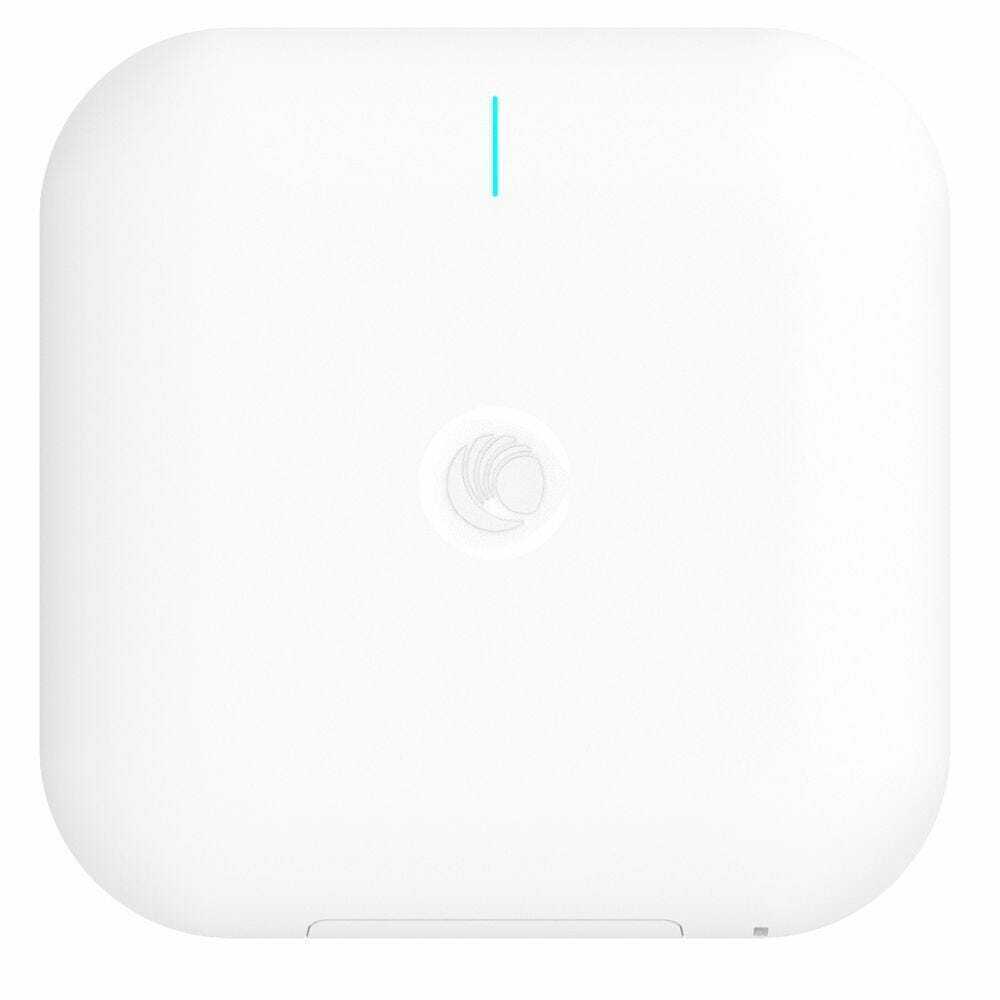

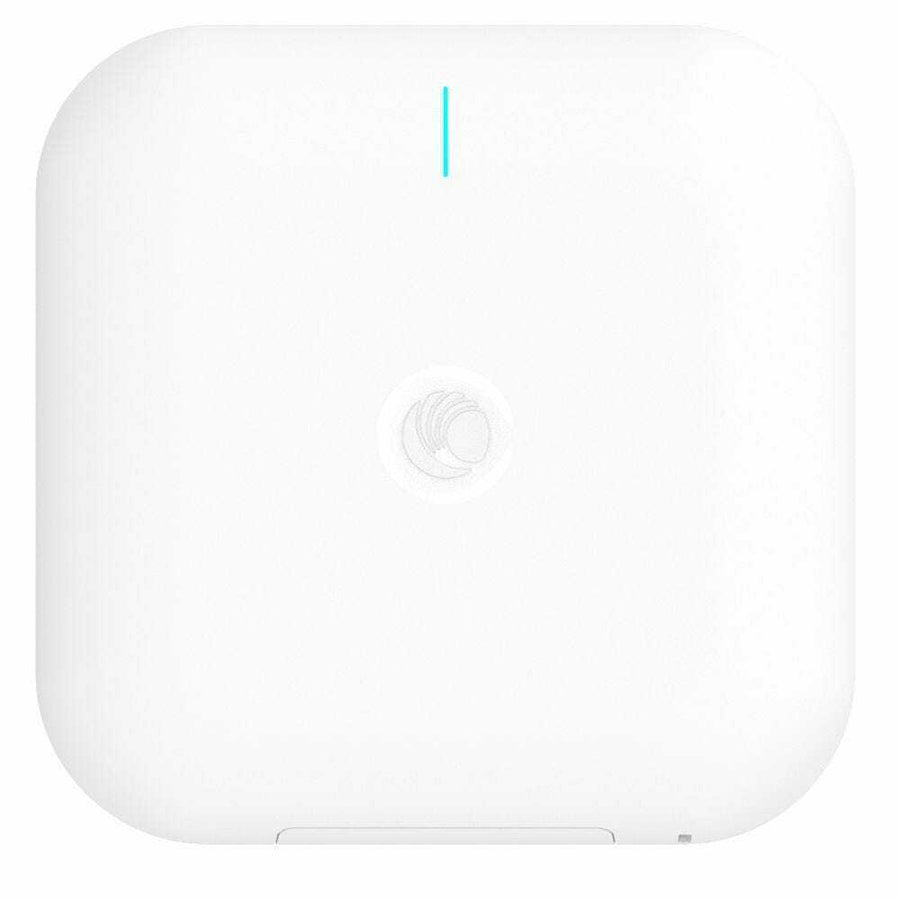

Cambium Networks XV3-8X00A00-RW Tri-Radio Wi-Fi 6 Indoor AP, SDR 802.11ax 8x8
Cambium Networks XV3-8X00A00-RW Tri-Radio Wi-Fi 6 Indoor AP, SDR 802.11ax 8x8
XV3-8 Tri-Radio WiFi 6. Indoor (FCC) SDR 802.11ax 8x8 or Dual 4x4 5GHz WLAN AP, scan radio, BLE, US:
The Cambium Networks XV3-8 is the first of many Wi-Fi 6 converged management access points supported by Xirrus XMS-Cloud, cnMaestro™ Cloud, cnMaestro on-premises VM, and cnMaestro c4000 Appliance. This flexibility allows the XV3-8 to deliver application policy controls, location services, and BYOD security segmentation when managed by the XMS management system, or to support the wireless fabric architecture spanning outdoor broadband, Ethernet switching, and enterprise Wi-Fi when managed by cnMaestro.
XV3-8 Capabilities At-a-Glance:
XV3-8 Wi-Fi 6 Access Point - 802.11ax Tri-Radio 8x8 Access Point with Software-Defined Radios
* High-density Wi-Fi with software-defined radios (SDR)
* Five-radio architecture for edge services
* 6 Gbps aggregate data rate
* Dedicated scanning sensor, dual band
* Application policy control
* EasyPass with Microsoft Azure and Google G Suite integration
DESIGNED FOR HIGH DENSITY AND EDGE SERVICES
The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4x4 plus one 2.4 GHz 4x4, or the two 5 GHz radios can be combined into a single 5 GHz 8x8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high-capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.
XV3-8 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.
OPTIMIZED WI-FI FOR DOMINANT CLIENT DEVICES
For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4x4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8x8 operating mode via a simple configuration change. No firmware change is required to support this mode.
CLOUD AND ON-PREMISES MANAGEMENT
XV3-8 operates with either Cambium Networks' XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.
