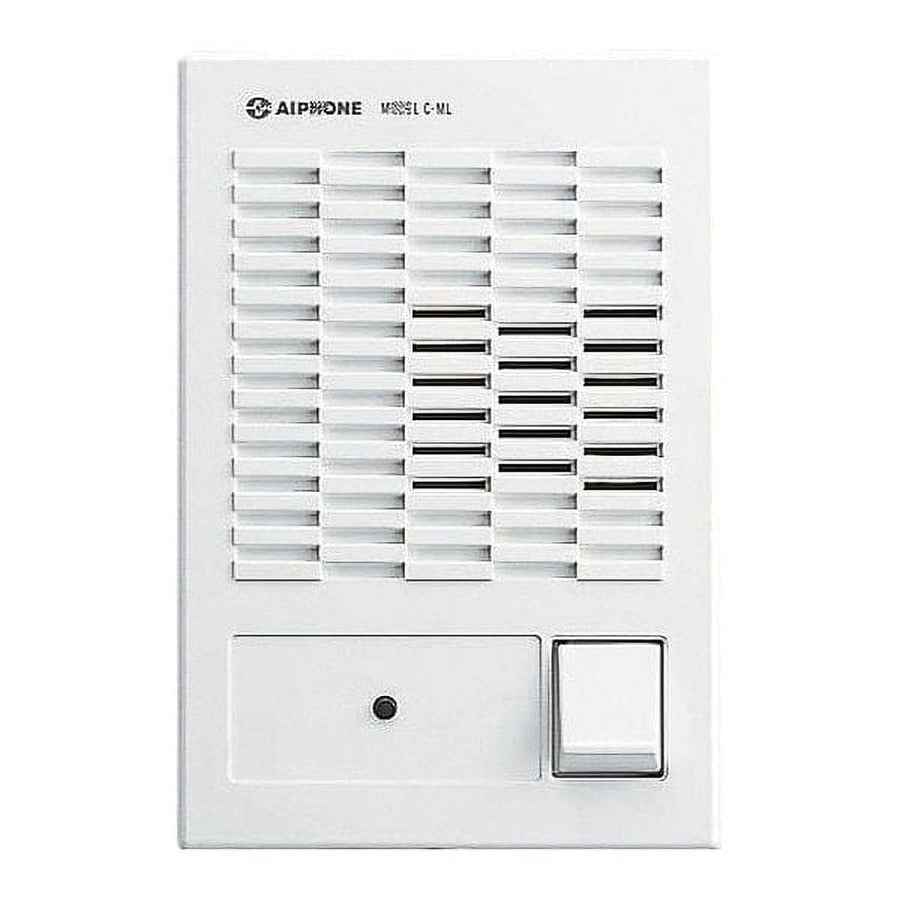

Aiphone C-ML/A Room Station Intercom

Aiphone · Access Control

Aiphone C-ML/A ChimeCom Audio Master Station for C-123L/A

Part number / SKU
C-ML/A
  • 6 VDC or four C-size batteries

Works with: Aiphone C-123L/A ChimeCom set, DAK-2S dual master adapter, SKK-620C power supply, Aiphone 822202 cable (22 AWG), Aiphone 821802 cable (18 AWG) Confirmed by the manufacturer

$108.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Aiphone C-ML/A is the audio master station of the ChimeCom series, used with the C-123L/A door answering set. It lets the user answer a ChimeCom door station with press-to-talk audio communication.

The station runs on 6 VDC or four C-size batteries, draws 85 mA max and delivers 100 mW of audio output. Battery life is about one year depending on use. It mounts on the wall over a single-gang electrical box, and wiring uses two-conductor cable with an overall shield, Aiphone 822202 (22 AWG) for up to 245 ft or 821802 (18 AWG) for up to 490 ft.

For one door station with two masters, Aiphone calls for the DAK-2S adapter and a separate SKK-620C power supply or set of batteries for each master; sharing one supply between two masters causes feedback. The C-123L/A can also trigger a bell, buzzer or sounder through a contact closure when the door station calls.

  • Best for: answering a ChimeCom door station with simple press-to-talk audio.
  • System fit: Aiphone ChimeCom series (C-123L/A set); DAK-2S for dual master setups; SKK-620C power supply.
  • Important to know: do not connect a power supply and batteries at the same time; Aiphone states both sources cannot be used together.

Why teams choose it

Built for secure sites

  • Battery or wired power

    runs on 6 VDC or four C-size batteries.

  • Long wire runs

    up to 490 ft with 18 AWG shielded cable.

  • Single-gang mounting

    wall mounts over a standard single-gang box.

  • Expandable

    add a second master with the DAK-2S adapter and its own power source.

Specifications

Technical specifications

General
Brand Aiphone
Model C-ML/A
Device Type Audio master station
Series ChimeCom
Communication Press-to-talk
Audio Output 100 mW
Electrical
Power Supply 6 VDC or four C-size batteries
Power Supply Detail SKK-620C; not both at once
Current Draw 85 mA max
Battery Life About one year, depending on use
Wiring 2-conductor with overall shield, Aiphone 822202 (22 AWG) or 821802 (18 AWG)
Wiring Distance 245 ft with 22 AWG; 490 ft with 18 AWG
Physical
Mount Type Wall mount, single-gang electrical box
