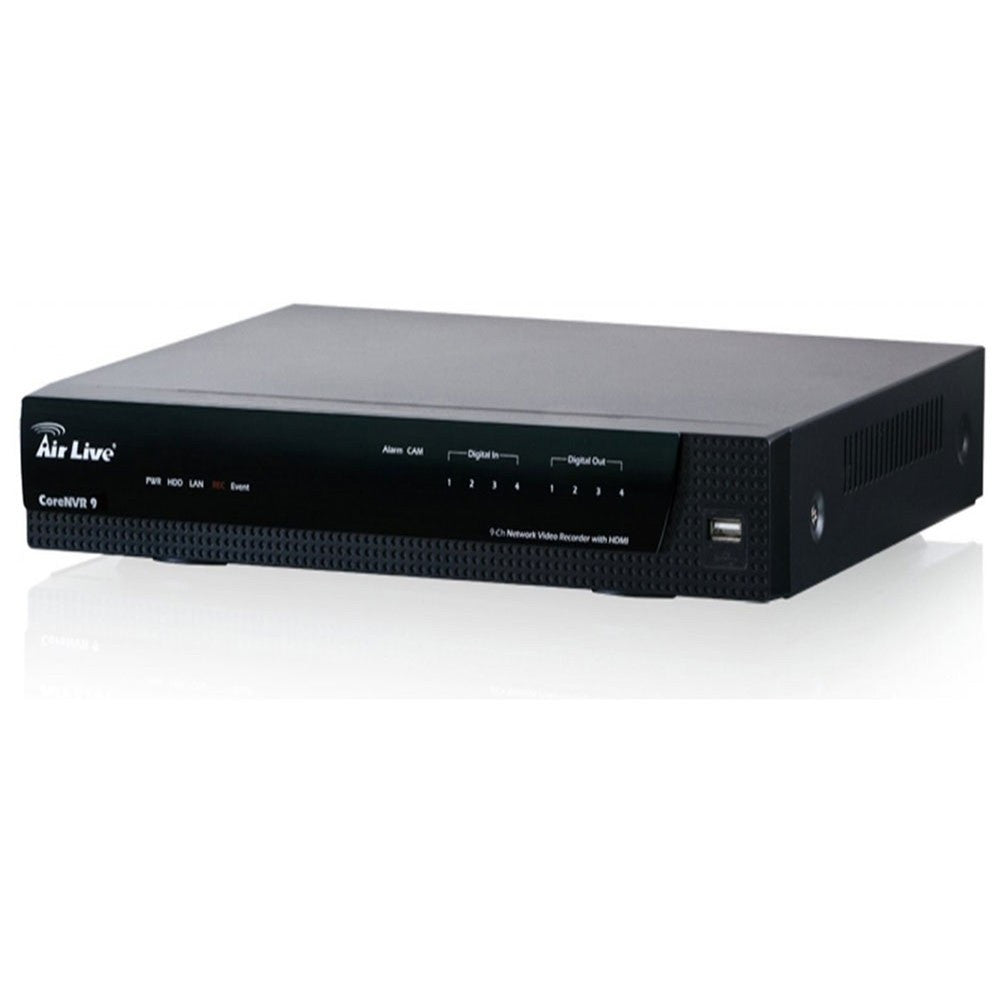

Airlive CoreNVR9 9-Channel Full HD Network Video Recorder H.264

The AirLive CoreNVR9 is a 9-channel Network Video Recorder engineered for home, retail, and small-office deployments. Built on an ARM Cortex A9 chipset, it records and plays back H.264 video at resolutions up to 3-megapixel full HD, delivering sharp, real-time surveillance imagery. Dual internal SATA II HDD bays accommodate drives up to 3 TB each, while an eSATA port and USB mass-storage backup extend capacity further—keeping footage on-site for extended retention periods. A single Gigabit RJ-45 port with DHCP, fixed IP, PPPoE, and UPnP traversal support ties the unit into virtually any small-business network, and remote viewing is available via Internet Explorer, iOS, and Android clients. Local display output over both VGA and HDMI lets operators connect a high-resolution monitor without additional hardware, and four digital inputs plus four digital outputs enable integration with external sensors and alarm devices for a comprehensive, end-to-end security solution.

Key features & benefits

• 9-Channel H.264 Recording up to 3 Megapixel — Supports QVGA through Full HD and 3M resolutions using the H.264 codec, ensuring high-quality footage while maintaining efficient storage utilization across all nine camera channels simultaneously.
• ARM Cortex A9 Processing Engine — A dedicated ARM Cortex A9 chipset handles video decode, encoding, and system management tasks, providing the processing headroom needed for smooth real-time monitoring and playback at up to 40 Mbps aggregate throughput.
• Dual HDD Bays with eSATA Expansion — Two internal SATA II slots accept drives up to 3 TB each for up to 6 TB of onboard storage, with an eSATA port for additional external capacity and a USB port for direct archive backup to removable media.
• Flexible Recording Triggers — Recording can be initiated by schedule, RTC, motion detection, digital input, or event trigger, with configurable pre-alarm and post-alarm buffers and automatic recycle to maximize storage efficiency.
• Dual Video Outputs—VGA and HDMI — Simultaneous VGA and HDMI outputs support display resolutions from 1024×768 up to 1920×1080, with selectable UI layouts (Normal, Simple, Professional, Advance) to suit different operator preferences.
• 4-Channel Digital I/O for Sensor and Alarm Integration — Four digital inputs and four digital outputs allow connection to door contacts, PIR sensors, sirens, and other third-party alarm devices, with alarm actions including buzzer, on-screen display, snapshot, email, FTP, TCP, and HTTP notifications.
• PTZ Camera Control with Joystick Support — Full PTZ command set—preset positions, tours, auto-pan, iris, and focus—can be operated via on-screen controls or an optional joystick, streamlining operator response during live monitoring.
• Motion Detection with Up to 10 Configurable Regions — Per-camera motion detection supports up to ten independently configured zones with adjustable object size and sensitivity thresholds, reducing false alarms in complex environments.
• Remote Access via Web Browser and Mobile Apps — Full-function remote live view and playback are accessible from Internet Explorer 7 or later, as well as iOS and Android mobile devices, with a low-bit-rate connection mode for bandwidth-constrained sites.
• Audio Capture and Codec Support — A 3.5 mm microphone input and 3.5 mm audio output, combined with G.711 and G.726 codec support, enable synchronized audio recording and two-way monitoring when paired with compatible audio sources.
