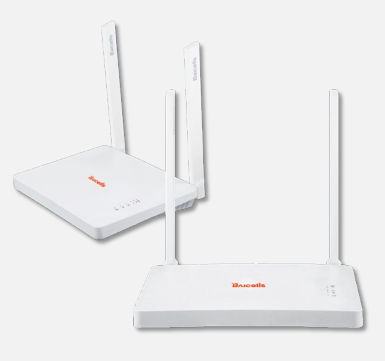

Baicells EP3011 Dual-Band Wi-Fi 802.11ac PoE Access Point Router

PRODUCT OVERVIEW

Baicells EP3011 SNAP PoE router provides dual-band 2.4/5 GHz IEEE 802.11b/g/n/ac Wi-Fi, Gigabit Ethernet connectivity, PoE output, and routing capabilities for use with supported Baicells outdoor CPE.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• IEEE 802.11b/g/n/ac dual-band Wi-Fi
• 2.4 GHz and 5 GHz operation
• 2x2 MIMO
• Up to 866 Mbps peak rate with 802.11ac
• 1000 Mbps WAN with PoE output
• Gigabit Ethernet LAN connectivity
• Supports up to 32 active users
• Internal omnidirectional 2T2R antenna
• Supports Web GUI, ACS, and Baicells OMC network management
• Supports TR-069 network management protocol
• 802.1Q VLAN support
• NAT network mode
• MSSID isolation
• Supports L2TP, GRE, PPTP, L2 VxLAN, and OpenVPN
• Port forwarding, DMZ, and ALG
• LED indicators for Power, WLAN, SYS, and LTE Signal
• Supports local and OTA firmware upgrades
• Designed for use with Baicells Atom Outdoor Low-Gain or Atom Outdoor High-Gain CPE

TECHNICAL SPECIFICATIONS

• Model: EP3011
• Wi-Fi Standard: IEEE 802.11b/g/n/ac
• Frequency: 2.4 GHz and 5 GHz dual-band
• Channel Bandwidth: 20/40/80 MHz
• MIMO: 2x2
• 802.11b Peak Rate: 11 Mbps
• 802.11g Peak Rate: 54 Mbps
• 802.11n Peak Rate: 300 Mbps
• 802.11ac Peak Rate: 866 Mbps
• Modulation: DSSS/CCK, OFDM
• Maximum Output Power: 14 ± 3 dBm
• Antenna Type: Internal omnidirectional, 2T2R
• Antenna Gain: 3 dBi to 5 dBi
• Active Users: 32
• WAN: 1 x RJ-45 10/100/1000 auto-sensing, auto-MDX
• LAN: 2 x RJ-45 10/100/1000 auto-sensing, auto-MDX
• Protocols: IPv4/IPv6, UDP, TCP, IP, ICMP, HTTPS, SSH, TELNET, TR-069
• Network Management: Web GUI, ACS, OMC
• VLAN: IEEE 802.1Q
• Network Mode: NAT
• Diagnostics: TCP dump, Ping, TraceRoute
• PSE Capability: Passive PSE, 24 VDC 0.5 A
• Power Supply Input: 100 VAC to 240 VAC
• Power Supply Output: 12 VDC 1 A
• Power Consumption: Less than 10 W
• Operating Temperature: 14°F to 113°F / -10°C to 45°C
• Storage Temperature: -4°F to 158°F / -20°C to 70°C
• Humidity: 5% to 95% RH
• Dimensions: 6.9 x 5.8 x 7.2 in / 174 x 147 x 182 mm
• Weight: Approximately 11.4 oz / 323 g
• FCC Certification: 2AG32EP3011
• IC Certification: 20982-EP3011
• Manufacturer Warranty: Standard one-year warranty; extended warranty available

INTENDED USE / APPLICATIONS

The EP3011 is an on-premise Wi-Fi access point and router designed to provide routing for multiple users accessing the Internet through Baicells outdoor CPE. Its PoE capability supplies power to the outdoor CPE through the Ethernet connection, eliminating the need for a separate CPE power connection and adapter.
