Bosch VBN-5085-C21 960H WDR Network Camera NTSC

Bosch · Intrusion & Alarm

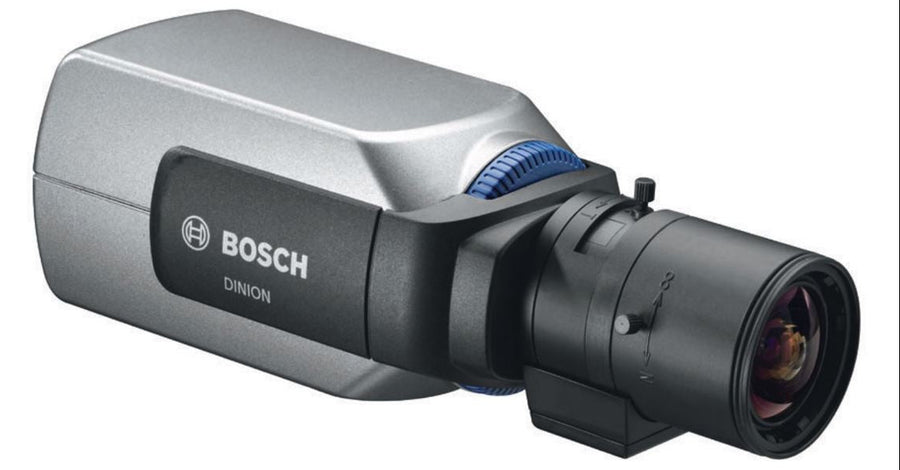

Bosch VBN-5085-C21 DINION AN 5000 960H WDR Analog Box Camera, NTSC

Part number / SKU
VBN-5085-C21
  • 720 TVL
  • CS mount, 5 mm maximum lens protrusion; C mount with optional adapter ring
  • Color 0.09 lx; monochrome 0.04 lx (50 IRE, F1.2, 3200K)
  • 12 VDC or 24 VAC, 60 Hz
$176.42

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Bosch VBN-5085-C21 is the NTSC, 12 VDC/24 VAC 60 Hz version of the DINION AN 5000, an analog box camera built on a 1/3 in 960H CCD rated 720 TVL. It delivers composite video at 1 Vpp into 75 ohms and takes CS-mount lenses, or C-mount lenses with an adapter ring.

Wide dynamic range is 94 dB using a dual shutter, signal to noise is above 54 dB, and color sensitivity is 0.09 lx at 50 IRE (F1.2), dropping to 0.04 lx in monochrome and lower with 10x SensUp. Power draw is 360 mA at 12 VDC or 330 mA at 24 VAC. The camera body measures 58 x 66 x 122 mm without lens, weighs 500 g, and operates from -20 to +55 C at 20 to 93% RH.

  • Best for: indoor analog CCTV systems that need a box camera with wide dynamic range.
  • System fit: NTSC analog recorders and monitors via composite BNC video; 12 VDC or 24 VAC power.
  • Important to know: this is an analog camera (not IP) and needs a CS-mount lens, or a C-mount lens with the adapter ring.

Why teams choose it

Built for secure sites

  • Sharp analog image

    960H CCD rated 720 TVL.

  • Handles bright backgrounds

    94 dB wide dynamic range with dual shutter.

  • Low light

    0.04 lx monochrome at 50 IRE, F1.2, lower with SensUp.

  • Dual voltage

    runs on 12 VDC or 24 VAC.

Specifications

Technical specifications

General
Brand Bosch
Series DINION AN 5000
Model VBN-5085-C21
Device Type 960H analog indoor WDR box camera
Signal System NTSC
Video
Image Sensor 1/3 in 960H DS CCD
Resolution 720 TVL
Effective Pixels 976 x 494
Total Pixels 1020 x 508
Video Output Composite, 1 Vpp, 75 ohms
Minimum Illumination Color 0.09 lx; monochrome 0.04 lx (50 IRE, F1.2, 3200K)
Full Video Sensitivity Color 0.5 lx; monochrome 0.2 lx (100 IRE, F1.2)
Minimum Illumination with SensUp 10x Color 0.009 lx; monochrome 0.004 lx (50 IRE, F1.2)
Wide Dynamic Range 94 dB (dual shutter)
Signal to Noise Above 54 dB
Lens CS mount, 5 mm maximum lens protrusion; C mount with optional adapter ring
Electrical
Power Supply 12 VDC or 24 VAC, 60 Hz
Power Consumption 360 mA at 12 VDC; 330 mA at 24 VAC
Physical
Dimensions 58 x 66 x 122 mm (2.28 x 2.6 x 4.8 in) H x W x L, without lens
Weight 500 g (1.10 lb), without lens
Color RAL 9007 metallic titanium
Environmental
Operating Temperature -20 C to +55 C (-4 F to 131 F)
Storage Temperature -40 C to +70 C (-40 F to +158 F)
Operating Humidity 20 to 93% RH
Storage Humidity Up to 98% RH
