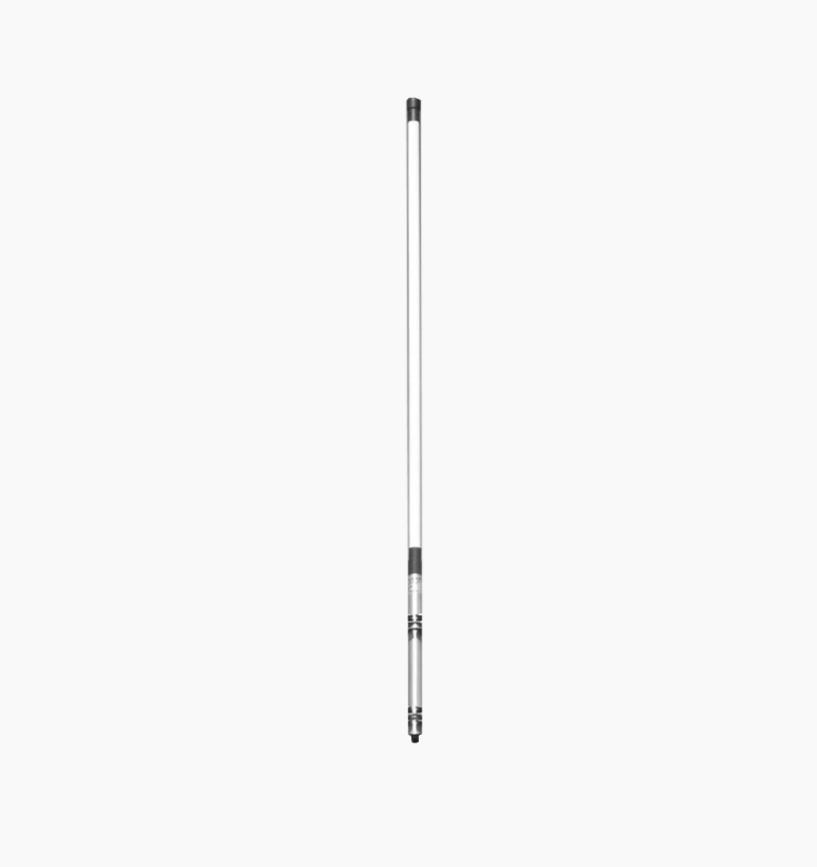

Decibel ASPE682 VHF Omnidirectional Antenna 164-170MHz 5dBd N Male

Decibel · Antennas (Radio)

Decibel ASPE682 VHF Omnidirectional Collinear Base Antenna 164-170 MHz 5 dBd N Male

Part number / SKU
ASPE682
  • 164-170 MHz
  • N male
$100.47

Special order· Lead time confirmed by our team after you order.

Request a quote

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Decibel ASPE682 is an omnidirectional collinear VHF base station antenna for 164-170 MHz. Gain is 4.5 dBd at the band edges and 5 dB at center frequency, with a 22 degree vertical beamwidth and a 350 watt maximum input power.

VSWR is below 1.5:1 at 50 ohm impedance. It terminates in an N male connector on a 24 inch (61 cm) pigtail with a VB-8 VAPOR-BLOC termination assembly.

  • Best for: VHF base station and repeater sites operating between 164 and 170 MHz.
  • Fits: N male termination on a 24 inch pigtail; 164-170 MHz systems.
  • Important to know: this is a fixed station antenna; mounting hardware beyond what is listed, coaxial cable and installation are separate, and the antenna must match your licensed frequencies.

Why teams choose it

Keeps your radios in service

  • Collinear design

    omnidirectional pattern with 4.5 dBd band edge gain.

  • Power handling

    rated for 350 watts maximum input.

  • Sealed termination

    VB-8 VAPOR-BLOC assembly on the N male pigtail.

  • Tight match

    VSWR below 1.5:1 at 50 ohm impedance.

Specifications

Technical specifications

RF
Frequency Range 164–170 MHz
Gain (Band Edge) 4.5 dBd omnidirectional
Gain (Center Frequency) 5 dB
VSWR < 1.5:1
Impedance 50 Ohms
Vertical Beamwidth 22°
Performance
Maximum Input Power 350 W
Radiation Pattern Omnidirectional
Antenna Design Collinear
Connectivity
Connector Type N Male
Termination Assembly VB-8 VAPOR-BLOC®
Pigtail Length 24 in (61 cm)
