DMP XF6-500 24VDC Network Fire Control Panel

DMP · Intrusion & Alarm

DMP XF6-500 24 VDC Network Fire Alarm Control Panel with Five LX-Bus Expansion Circuits

Part number / SKU
XF6-500
$1,120.70

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

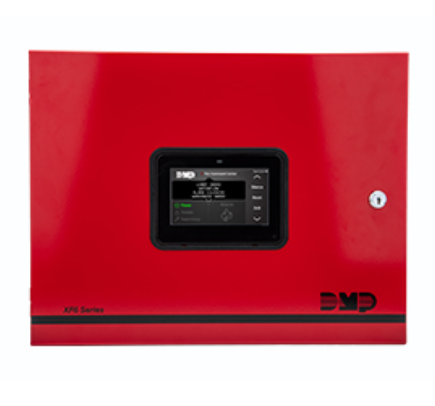

The DMP XF6-500 is a 24 VDC fire control panel with built-in network communication and optional cellular. It comes assembled in a red steel enclosure with a 7830F-R graphic fire command annunciator on the door and a pre-installed 28 VAC 130 VA transformer. It has six onboard 24 VDC Class B powered zones and five 12 VDC 100-zone LX-Buses for expansion (zones 500 to 999 through the LX500 to LX900 headers), with up to 500 wireless zones through DMP 1100 Series wireless.

The panel provides two 24 VDC Class B notification appliance circuits rated 2.5 A each, a 24 VDC smoke/auxiliary output rated 0.75 A, a 12 VDC 1 A output for annunciators, two SPDT relay outputs (using two Model 305 relays and a Model 431 harness) and four open collector outputs, with a combined 3.5 A limit across circuits. It is powered by a 28 VAC 130 VA wire-in transformer on a dedicated 120 VAC circuit and two 12 VDC batteries in series, with a 27.6 VDC float charge. The panel itself draws 90 mA in standby and 102 mA in alarm. Ethernet runs at 100 Mbps to SCS-1R and SCS-VR receivers, with up to eight communication paths. The red steel enclosure measures 13.44 x 17.1 x 4.8 in.

The XF6-500 is UL Listed to ANSI/UL 864 10th Edition with CSFM, LAFD and FDNY approvals. The XF6-500K version adds a 630F remote annunciator in the door. Compatible devices include the 7830F-R and 630F annunciators, 710, 711, 714, 715 and 716 expansion modules, 2W-BLX and 2WT-BLX smoke detectors, 1100XH wireless receivers and 263LTE cellular communicators.

  • Best for: commercial fire alarm systems that need addressable LX-Bus expansion, wireless fire devices and network reporting in one panel.
  • System fit: DMP LX-Bus devices (714, 715, 716, 2W-BLX), 1100XH wireless, 7830F-R and 630F annunciators, SCS-1R and SCS-VR receivers.
  • Important to know: installation and programming must be done by a qualified fire alarm technician in line with local code and the panel manufacturer's instructions.

Why teams choose it

Built for secure sites

  • Expansion capacity

    five 12 VDC 100-zone LX-Buses plus up to 500 wireless zones.

  • Notification power

    two 24 VDC Class B NACs at 2.5 A each.

  • Network reporting

    100 Mbps Ethernet with up to eight communication paths, optional cellular.

  • Fire listed

    UL 864 10th Edition with CSFM, LAFD and FDNY approvals.

Specifications

Technical specifications

General
Brand DMP
Series XF6 Series
Model XF6-500
Device Type Fire alarm control panel with network and cell
Addressing Addressable LX-Bus devices; conventional onboard zones; wireless
Onboard Zones 6 x 24 VDC Class B powered zones, 3.3k ohm EOL
Zone Wiring 3,000 ft max (18 AWG); 100 ohm max line impedance; 500 ms response, 160 ms fast response option
Expansion Zones Five 12 VDC 100-zone LX-Buses (zones 500 to 999)
LX-Bus Circuits 0.70 A per bus; up to 40 devices per 2,500 ft circuit
Wireless Zones Up to 500
NAC Circuits 2 x 24 VDC Class B, 2.5 A each, 3.3k ohm EOL
NAC Sync Protocols DMP, Gentex, Wheelock, System Sensor
Relays 2 SPDT outputs using two Model 305 relays and a Model 431 harness; 1 A at 30 VDC resistive
Open Collector Outputs 4, 50 mA each, 30 VDC max
Annunciators Up to 15 supervised on Annunciator Bus
Communication Ethernet 100 Mbps full duplex (Cat 5) to SCS-1R and SCS-VR; optional cellular; up to 8 paths
Electrical
Operating Voltage 24 VDC (zones and NACs); 12 VDC (LX-Bus and annunciators)
Transformer 28 VAC, 130 VA wire-in
AC Input 120 VAC, 60 Hz, 1.3 A, dedicated circuit
Smoke/Auxiliary Output 24 VDC, 0.75 A max
Annunciator Power 12 VDC, 1 A (terminal 7)
Total Output 3.5 A combined
Panel Current 90 mA standby; 102 mA alarm
Battery Two 12 VDC sealed lead-acid in series (24 VDC); 27.6 VDC float charge
Battery Thresholds Trouble below 23.4 VDC; cutoff below 20 VDC; restore above 24.6 VDC
Physical
Enclosure Red steel, removable door, battery shelf for two batteries
Dimensions 13.44 in H x 17.1 in W x 4.8 in D
Included Panel with built-in communicator, enclosure with 7830F-R annunciator on door, 28 VAC 130 VA transformer
Environmental
Installation Environment Indoor, dry
Listings and Approvals
Agency Approvals UL Listed to ANSI/UL 864 10th Edition; CSFM; LAFD; FDNY
