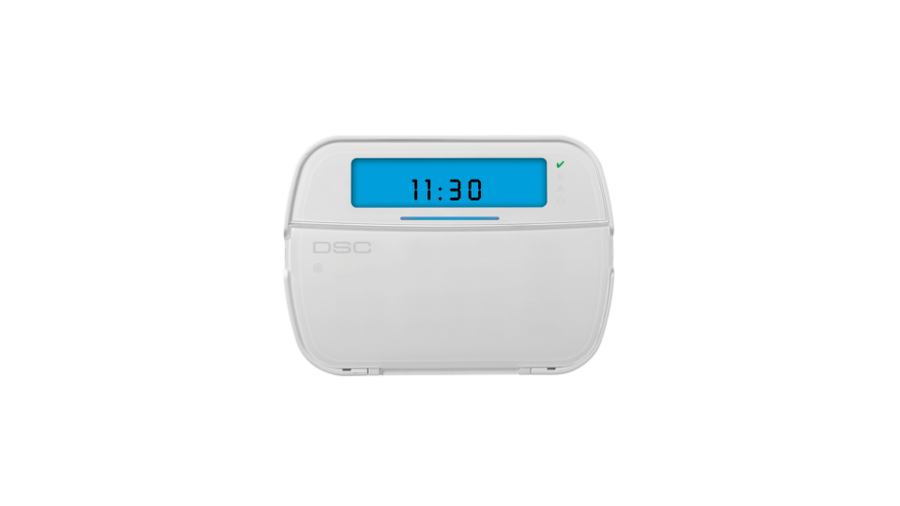

DSC HS32-ICN PowerSeries Neo HS2032 Alarm Control Panel Kit with Icon Keypad

Part number / SKU
HS32-ICN
  • 16.5 V, 40 VA transformer

Works with: HSM2HOST transceiver, HSM2108 zone expander, HSM2208 output module, HSM2204 output module, HSM2300 power supply, HSM2955 audio module and 6 more models Confirmed by the manufacturer

$111.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The DSC HS32-ICN is a PowerSeries Neo kit that pairs the HS2032 hybrid intrusion control panel with an icon keypad, so the panel and the user interface come in one package.

The HS2032 has 8 zones on board and supports up to 32 hardwired and 32 wireless zones, 4 partitions, 72 users and up to 8 keypads, with 2 on-board outputs expandable to 38 and a 500 event buffer. It runs from a 16.5 V, 40 VA transformer, provides 700 mA of auxiliary power and a 700 mA bell output, and charges a 12 VDC standby battery at 400 mA or 700 mA.

Expansion modules connect on the four-wire Corbus, including the HSM2108 zone expander, HSM2208 and HSM2204 output modules, HSM2300 power supply, HSM2955 audio module and HSM2HOST wireless transceiver, with 3G2080, TL280 or TL2803G communicators for monitoring.

  • Best for: new intrusion installs on the DSC PowerSeries Neo platform that need the panel and an icon keypad together.
  • System fit: DSC PowerSeries Neo HS2032 panel; Neo keypads, Corbus expansion modules and communicators.
  • Important to know: the panel must be installed and programmed by a qualified alarm technician; monitoring requires a separate communicator and account.

Why teams choose it

Built for secure sites

  • Panel and keypad together

    one kit covers the HS2032 control panel and an icon keypad.

  • Hybrid zones

    8 zones on board, up to 32 hardwired and 32 wireless.

  • Partitioned control

    4 partitions and 72 user codes.

  • Expandable outputs

    2 on-board outputs, up to 38 with output modules.

Specifications

Technical specifications

General
Brand DSC
Model HS32-ICN
Device Type Intrusion control panel kit
Series PowerSeries Neo
Control Panel HS2032
Keypad Icon keypad (included)
Zones 8 on-board; up to 32 hardwired and 32 wireless
Partitions 4
Users 72
Keypads Up to 8
Outputs 2 on-board; up to 38
Event Buffer 500 events
Wireless Devices 32 keys, 8 sirens, 8 repeaters
Proximity Tags 71
Electrical
Power Supply 16.5 V, 40 VA transformer
Auxiliary Output 700 mA max, at least 100 mA reserved for Corbus
Bell Output 700 mA continuous, 10.4 to 12.5 VDC; 2.0 A short term with standby battery (not for UL/ULC or EN certified applications)
Battery Charging 400 mA or 700 mA selectable
PGM Outputs PGM1 50 mA; PGM2 300 mA
Zone EOL Resistors SEOL 5600 ohm; DEOL 5600 and 11200 ohm
Zone Wiring 100 ohm max loop resistance
Standby Battery 12 VDC sealed lead acid or gel type; 4, 7, 14, 18 or 26 Ah per standby time
