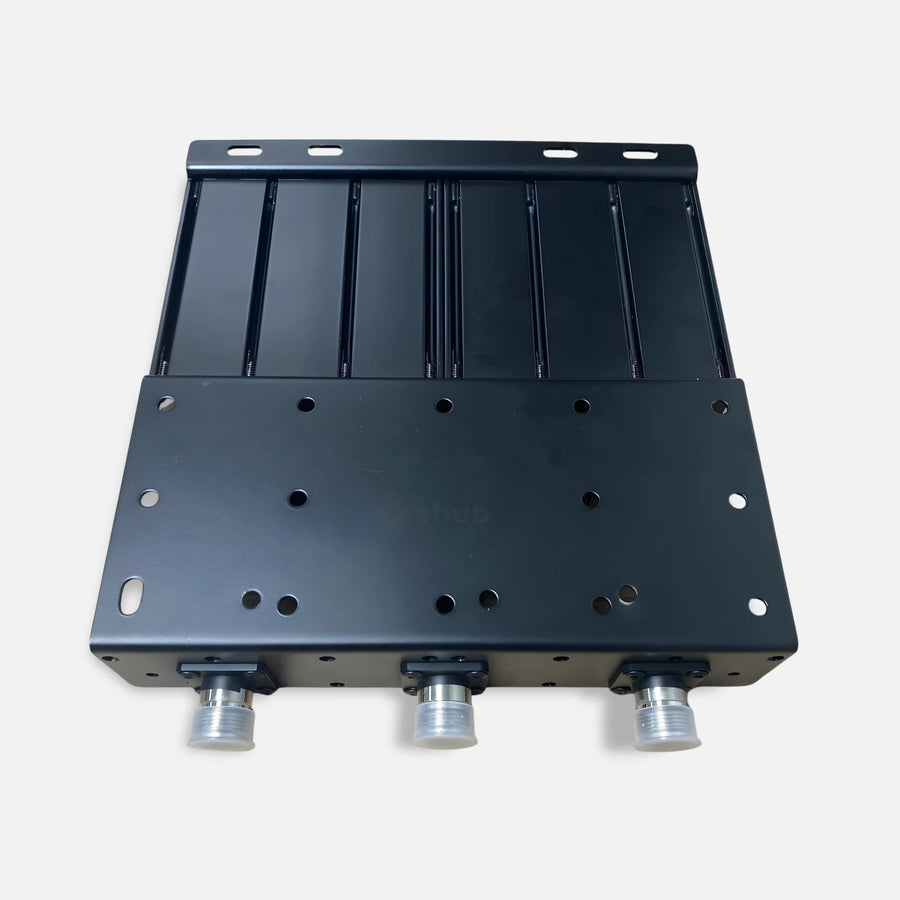

EhubAmerica Duplexer 50W VHF 150–175 MHz 50Ω RF Duplexer
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Portable VHF duplexer covering 150–175 MHz with 50W power handling. Designed for customizable frequency configurations with high isolation and low insertion loss for repeater applications.
PRODUCT TYPE
RF Accessories
KEY FEATURES
• Frequency range: 150–175 MHz
• Customizable frequency configuration
• Frequency separation: minimum 5 MHz, maximum 10 MHz
• Maximum power handling: 50W
• High isolation ≥ 90 dB
• Low insertion loss ≤ 1.45 dB (manufacturer stated)
• Portable design
• Multiple connector options: N-Female / BNC-Female / SO-239
• 50Ω nominal impedance
TECHNICAL SPECIFICATIONS
• Product Type: VHF Duplexer
• Frequency Range: 150–175 MHz
• Maximum Power: 50 W
• Frequency Separation: 5–10 MHz
• Insertion Loss: ≤ 1.45 dB (≤1.2 dB listed by product data)
• Isolation: ≥ 90 dB
• Impedance: 50 Ω
• Connectors: N-Female / BNC-Female / SO-239 (configuration dependent)
• Dimensions: 218 × 190 × 38 mm
• Weight: 1.5 kg
• Color: Black
