EhubAmerica EPC-150RV2 Replacement VHF Helical Stubby Antenna 148-164 MHz for Motorola CP200 CP200D

EhubAmerica · Antennas (Radio)

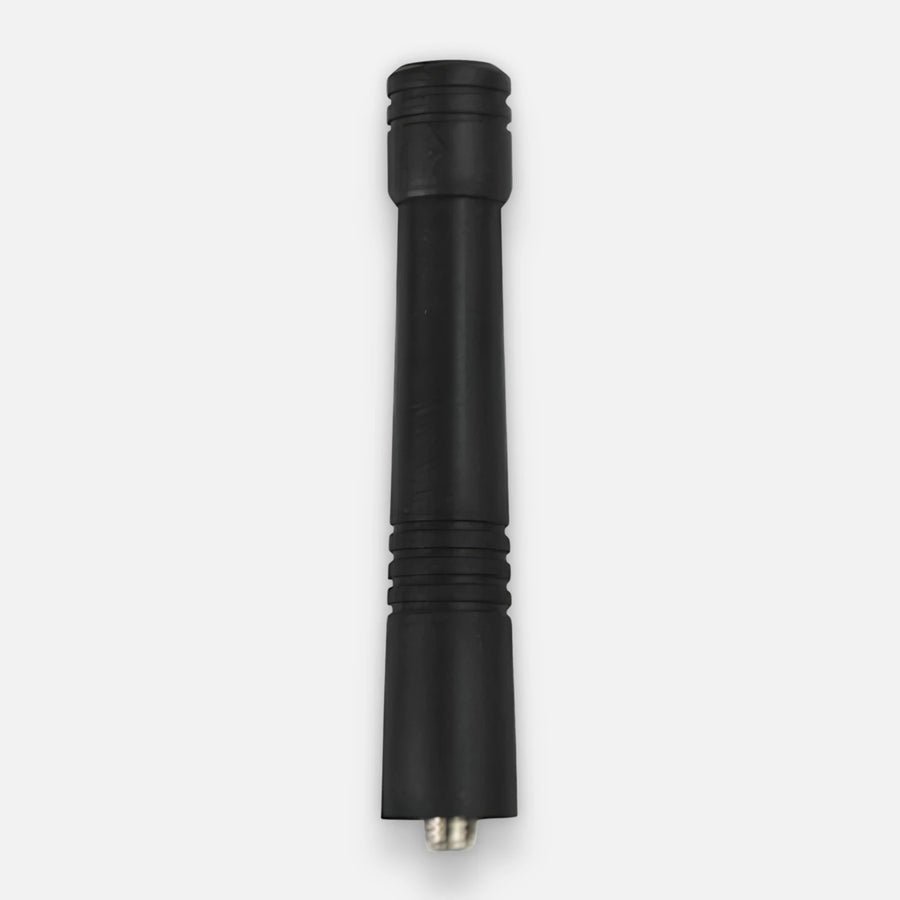

EhubAmerica EPC-150RV2 VHF Stubby Helical Portable Antenna 148-164 MHz for Motorola CP200 / CP200d

Part number / SKU
EPC-150RV2
  • 148-164 MHz
  • Stud, monopole

Works with: CP200, CP200d

$14.99

In stock

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The EhubAmerica EPC-150RV2 is a VHF stubby helical replacement antenna for Motorola CP200, CP200d portable radios, covering 148-164 MHz. It has unity gain, an omnidirectional pattern and vertical polarization at 50 ohm impedance.

VSWR is below 2.0. The antenna uses a stud connector, a urethane sleeve and an ABS cap, with a total length of 84.5 mm (plus or minus 3 mm).

  • Best for: replacing a lost or damaged VHF antenna on a Motorola portable radio.
  • Fits: Motorola CP200, CP200d portable radios (per product compatibility text).
  • Important to know: this is an EhubAmerica-brand compatible replacement antenna, not an original Motorola part. Match the antenna band to your radio's frequency band before ordering.

Why teams choose it

Keeps your radios in service

  • VHF coverage

    covers 148-164 MHz.

  • Omnidirectional pattern

    unity gain with vertical polarization for handheld use.

  • Durable build

    urethane sleeve with an ABS cap.

  • Compact profile

    stubby length of 84.5 mm (plus or minus 3 mm).

Specifications

Technical specifications

RF
Antenna Type Helical (Stubby)
Frequency Range 148–164 MHz
Center Frequency 150 MHz
Impedance 50 Ohm
Gain Unity
Radiation Pattern Omnidirectional
Polarization Vertical
VSWR < 2.0
Connectivity
Connector Type Stud
Physical
Overall Length 84.5 ± 3 mm
Hardware
Sleeve Material Urethane
Cap Material ABS
General
Condition New
