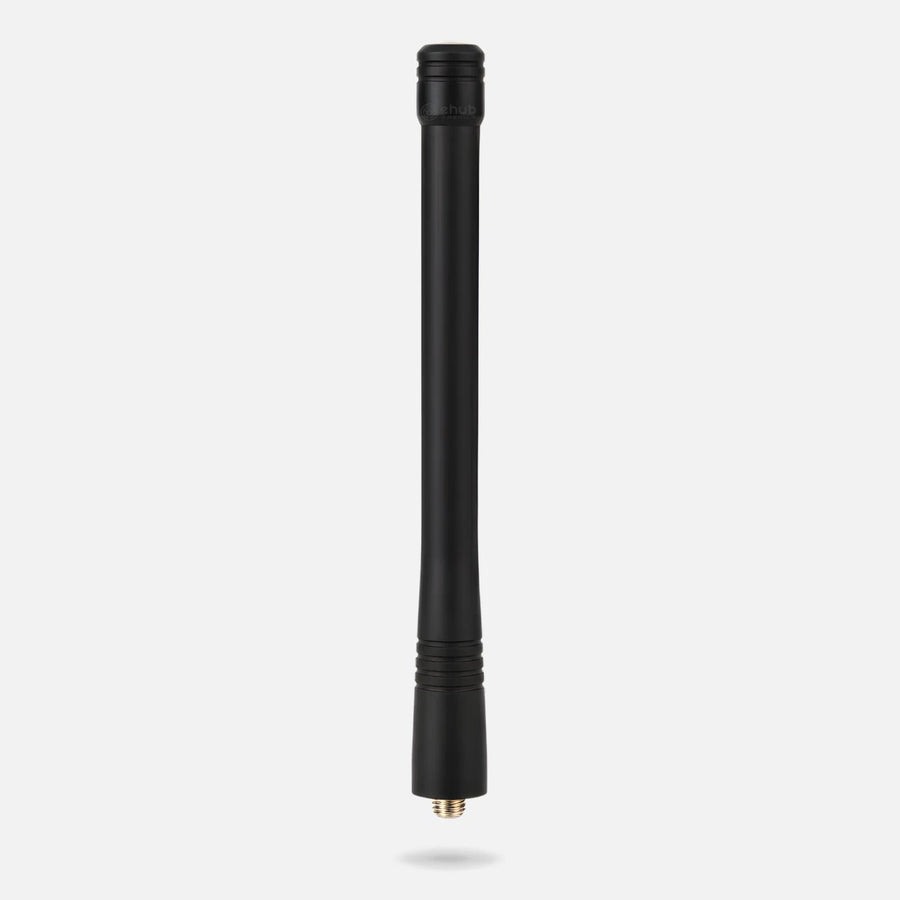

EhubAmerica EPC-150V2 Replacement VHF Helical Antenna 146-174 MHz Stud for Motorola CP200 EP450

EhubAmerica · Antennas (Radio)

EhubAmerica EPC-150V2 VHF Helical Portable Antenna 146-174 MHz for Motorola CP200 / EP450

Part number / SKU
EPC-150V2
  • 146-174 MHz
  • Stud, monopole

Works with: CP200, EP450

$14.99

In stock

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The EhubAmerica EPC-150V2 is a VHF helical replacement antenna for Motorola CP200, EP450 portable radios, covering 146-174 MHz, with a tuned operating range of 150-164 MHz. It has unity gain, an omnidirectional pattern and vertical polarization at 50 ohm impedance.

VSWR is below 2.0. The antenna uses a stud connector, a urethane sleeve and an ABS cap, with a total length of 149 mm (plus or minus 3 mm).

  • Best for: replacing a lost or damaged VHF antenna on a Motorola portable radio.
  • Fits: Motorola CP200, EP450 portable radios (per product compatibility text).
  • Important to know: this is an EhubAmerica-brand compatible replacement antenna, not an original Motorola part. Match the antenna band to your radio's frequency band before ordering.

Why teams choose it

Keeps your radios in service

  • VHF coverage

    covers 146-174 MHz.

  • Omnidirectional pattern

    unity gain with vertical polarization for handheld use.

  • Durable build

    urethane sleeve with an ABS cap.

  • Direct fit

    stud connector for compatible portable radios.

Specifications

Technical specifications

RF
Frequency Range (Supported Coverage) 146–174 MHz
Tuned Operating Range 150–164 MHz
Center Frequency 150 MHz
Impedance 50 Ohm
Gain Unity
Radiation Pattern Omnidirectional
Polarization Vertical
VSWR < 2.0
Connectivity
Connector Type Stud
Hardware
Antenna Type Helical
Sleeve Material Urethane
Cap Material ABS
Physical
Total Length 149 ± 3 mm
General
Brand eHubAmerica
Model Numbers EPC-150V2, EPC-150VHF
Product Type VHF Helical Antenna
