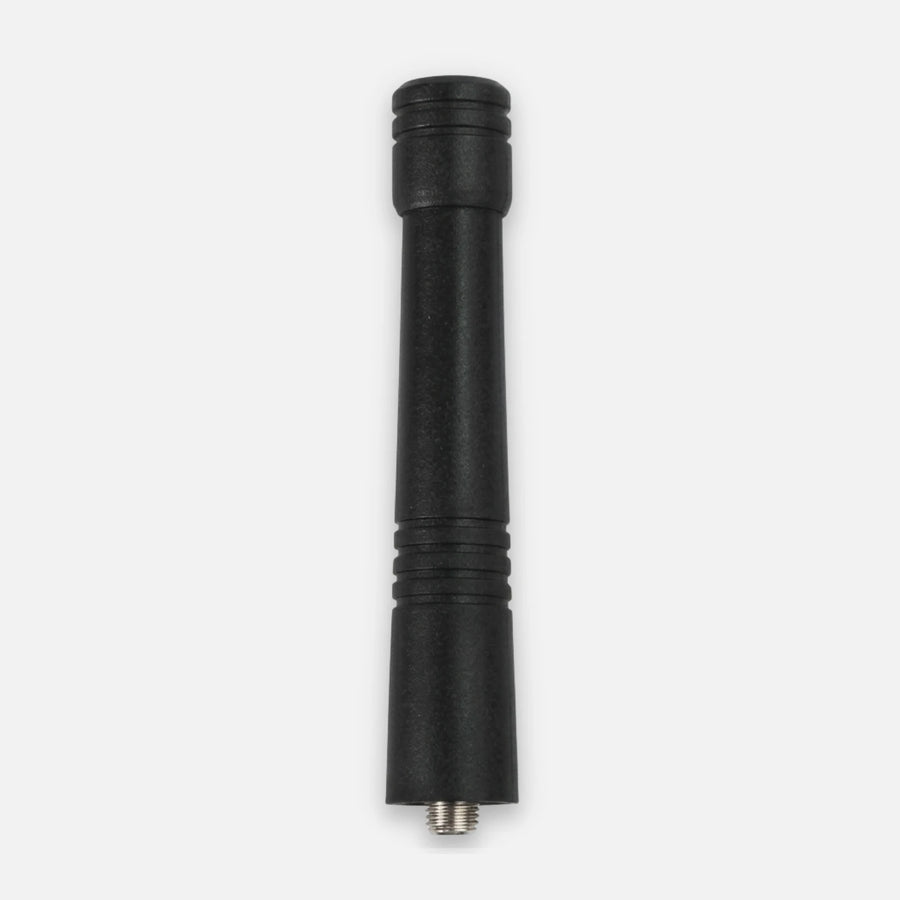

EhubAmerica EPC-450RV2 Replacement UHF Stubby Helical Antenna 450-470 MHz for Motorola Portables

EhubAmerica · Antennas (Radio)

EhubAmerica EPC-450RV2 UHF Stubby Helical Portable Antenna 450-470 MHz for Motorola Portable Radios

Part number / SKU
EPC-450RV2
  • 450-470 MHz
  • Stud, monopole
$12.99

In stock

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The EhubAmerica EPC-450RV2 is a UHF stubby helical replacement antenna for Motorola portable radios, covering 450-470 MHz. It has unity gain, an omnidirectional pattern and vertical polarization at 50 ohm impedance.

VSWR is below 2.0. The antenna uses a stud (monopole) connector, a urethane sleeve and an ABS cap, with a total length of 74 mm (plus or minus 3.5 mm).

  • Best for: replacing a lost or damaged UHF antenna on a Motorola portable radio.
  • Fits: Motorola portable radios with a stud (monopole) antenna connector, per the product text; no specific models are listed.
  • Important to know: this is an EhubAmerica-brand compatible replacement antenna, not an original Motorola part. Match the antenna band to your radio's frequency band before ordering.

Why teams choose it

Keeps your radios in service

  • UHF coverage

    covers 450-470 MHz.

  • Omnidirectional pattern

    unity gain with vertical polarization for handheld use.

  • Durable build

    urethane sleeve with an ABS cap.

  • Compact profile

    stubby length of 74 mm (plus or minus 3.5 mm).

Specifications

Technical specifications

RF
Frequency Range 450–470 MHz
Center Frequency 450 MHz
Impedance 50 Ohm
Gain Unity
Radiation Pattern Omnidirectional
Polarization Vertical
VSWR < 2.0
Connectivity
Connector Type Stud (Monopole)
Physical
Total Length 74 ± 3.5 mm
Hardware
Sleeve Material Urethano
Cap Material ABS
General
Brand eHubAmerica
Model EPC-450RV2
Product Type UHF Stubby Helical Antenna
