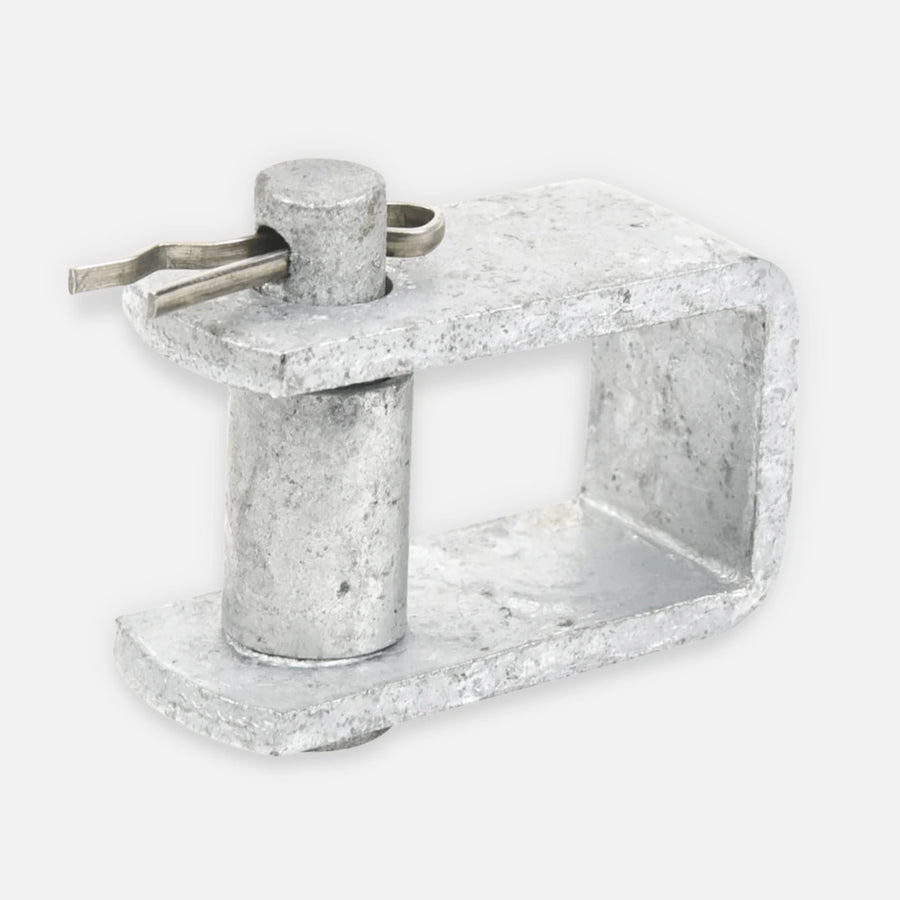

Epcom LP-SDC (5-Pack) Small D Clamp Pin Support Aerial Fiber Optic Cable

The Epcom LP-SDC is a small D-type clamp with pin support engineered specifically for the installation and long-term retention of aerial fiber optic cables. Fabricated from hot-dip galvanized steel, each clamp delivers robust corrosion resistance across the full range of outdoor exposure conditions, from coastal salt air to high-humidity environments. The pin-support design holds aerial cable securely under load, making it well suited for pole-to-pole spans in telecommunications, municipal fiber, and enterprise campus deployments. With a rated maximum tension of 20 kN and support for spans up to 200 meters, the LP-SDC is appropriate for demanding aerial runs where mechanical reliability over a long service life is essential. UV-resistant material properties further extend operational longevity in direct-sun installations. Each pack contains five clamps, allowing installers to stock efficiently for multi-span projects.

Key features & benefits

• Hot-Dip Galvanized Steel Construction — The galvanization process bonds a protective zinc layer throughout the steel substrate, providing superior corrosion resistance compared to standard painted or electroplated finishes—critical for clamps exposed to rain, humidity, and temperature cycling over decades of outdoor service.
• High Tension Capacity — Rated to support a maximum tension of 20 kN, the LP-SDC maintains secure cable retention even on long or heavily loaded aerial spans, reducing the risk of cable sag or displacement under wind and ice loading.
• Long-Span Capability — Supports aerial runs up to 200 meters between attachment points, giving network designers flexibility in pole placement and infrastructure layout without requiring intermediate support structures.
• UV-Resistant Materials — UV resistance prevents material degradation from prolonged solar exposure, preserving clamp integrity and holding force throughout the rated service life in open-sky installations.
• Estimated Service Life of 20 Years or Greater — The combination of galvanized steel construction and UV-resistant properties yields an estimated service life of 20 years or more, reducing the need for periodic hardware replacement in installed aerial networks.
• Pin-Support Retention Design — The integrated pin support provides positive mechanical retention of the fiber optic cable, preventing lateral displacement during high-wind events and simplifying installation alignment on the support strand.
• 5-Clamp Pack Quantity — Sold in packs of five, the LP-SDC allows installers to stage hardware efficiently for multi-span or multi-pole aerial fiber projects, reducing per-unit cost and minimizing restocking interruptions on larger deployments.
